51135 - TBR-WAGON(INDONESIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

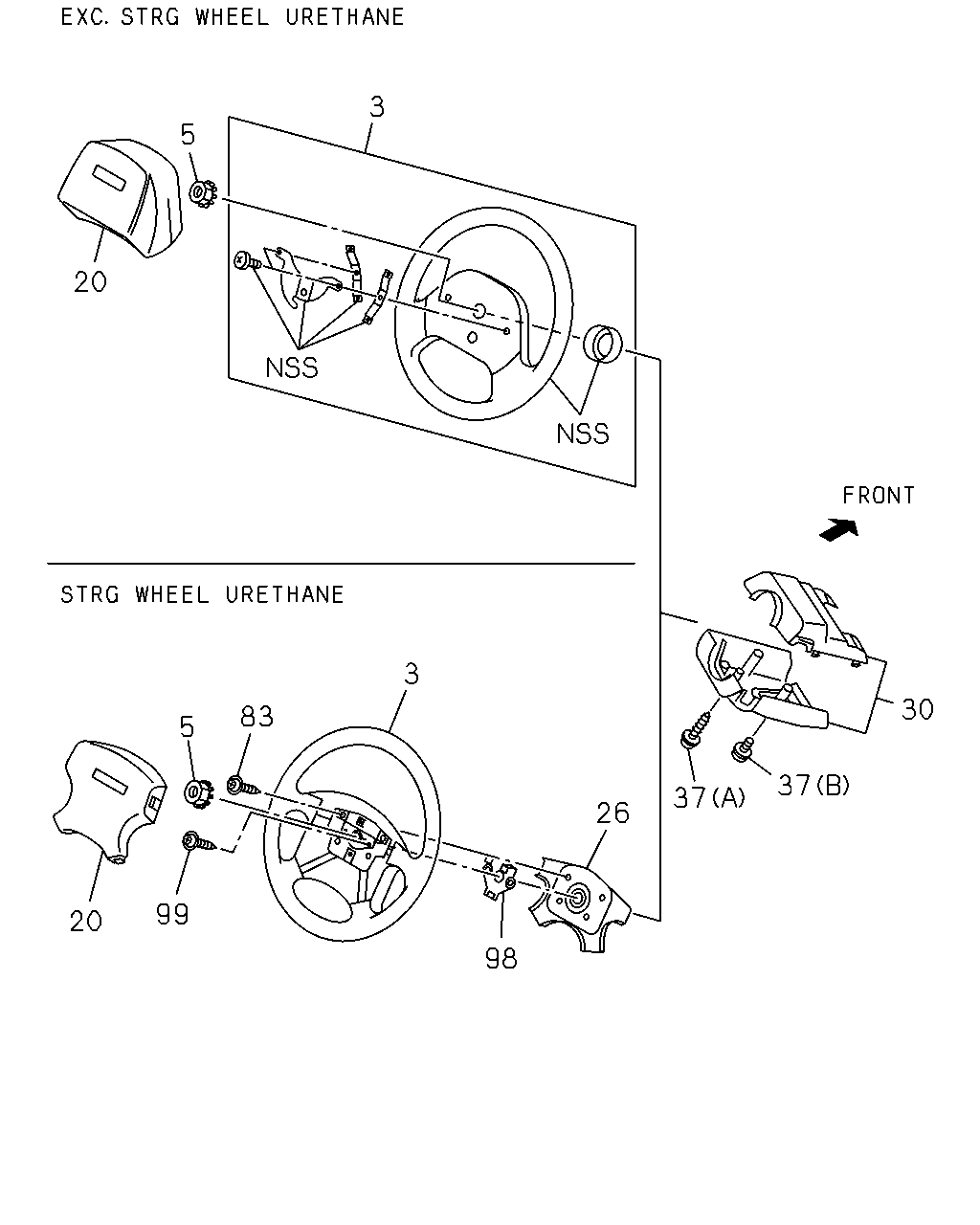

4-30 — STEERING WHEEL AND COWL
(#95779) — 13 parça
3
5
20
30
37
37
26
3
83
5
20
99
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK IDN
8-97958-824-0
01
1
0612-
3
WHEEL; STRG
EXC. STRG WHEEL URETHANE<NK4> BLACK
8-97296-209-1
01
1
0612-
5
NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER
8-94455-487-1
01
1
0612-
20
SHROUD; PAD,STRG WHEEL
STRG WHEEL URETHANE<NK4> BLACK IDN
8-97958-825-0
01
1
0612-
20
SHROUD; PAD,STRG WHEEL
EXC. STRG WHEEL URETHANE<NK4> BLACK
8-97154-757-1
01
1
0612-
26
COVER; STRG WHEEL,LWR
STRG WHEEL URETHANE<NK4> IDN
8-97957-068-0
01
1
0612-
30
COWL; STEERING
GRADE LM(RBA),GRADE LV(RBB) BLACK IDN
8-97196-927-1
01
1
0612-
30
COWL; STEERING
GRADE LS(RBD),GRADE TOURING(RBG) BLACK IDN
8-97560-318-0
01
1
0612-
37
SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER
0-36210-412-0
03
1
0612-
37
SCREW; STRG COWL UPR
(A) M5X16
5-09981-053-0
02
1
0612-
83
SCREW; LWR COVER TO WHEEL
STRG WHEEL URETHANE<NK4> M4X16 TAPPING IDN
8-94361-921-0
04
1
0612-
98
DAMPER; STRG WHEEL
STRG WHEEL URETHANE<NK4> IDN
8-97562-630-0
01
1
0612-
99
SCREW; STRG,DPR
STRG WHEEL URETHANE<NK4> M6X10
1-09981-511-0
02
1
0612-
