51135 - TBR-WAGON(INDONESIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-20 - REAR AXLE CASE AND SHAFT
▶

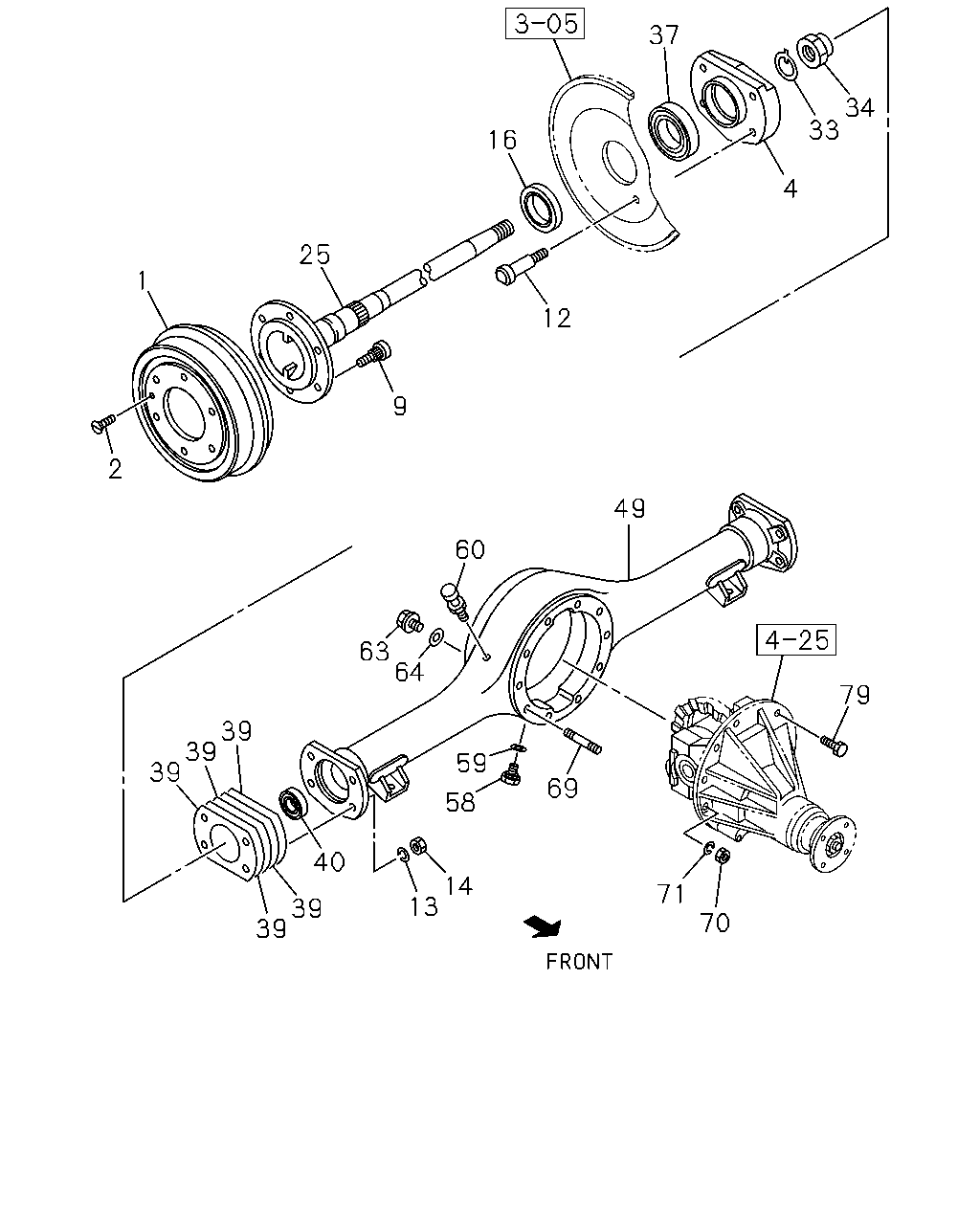

4-20 — REAR AXLE CASE AND SHAFT
(#95777) — 33 parça
2
1
25
16
9
12
37
4
33
34
49
60
64
63
39
39
39
39
39
40
13
14
58
59
69
71
70
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRUM; BRK,RR
IDN
8-97956-672-0
02
1
0612-
2
BOLT; BRK DRUM
M6X16 CK-HEAD
9-03090-616-0
02
1
0612-
4
HOLDER; BRG,AXLE SHAFT
8-94223-079-4
02
1
0612-
9
PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD
8-97213-870-0
12
1
0612-
12
BOLT; BRG HOLDER TO CASE
M12X72
8-94477-674-2
04
1
0612-
12
BOLT; BRG HOLDER TO CASE
M12X69 REAMER
9-42119-603-2
04
1
0612-
13
WASHER; LK,BRG HOLDER TO CASE
ID=12.2
0-91510-512-0
08
1
0612-
14
NUT; BRG HOLDER TO CASE
M12
0-91110-512-0
08
1
0612-
16
SEAL; OIL,RR HUB,OUTER
ID=47 OD=70
8-94318-909-0
02
1
0612-
25
SHAFT; AXLE,RR
THA
8-97942-194-0
02
1
0612-
33
WASHER; AXLE SHAFT
8-97086-473-0
02
1
0612-
34
NUT; AXLE SHAFT
8-94177-815-0
02
1
0612-
37
BEARING; HUB INNER,RR AXLE
NSK
9-00093-627-2
02
1
0612-
39
SHIM; BRG HOLDER
T=1.000
8-94469-775-0
AR
1
0612-
39
SHIM; BRG HOLDER
T=0.500
8-94469-776-0
AR
1
0612-
39
SHIM; BRG HOLDER
T=0.130
8-94469-777-0
AR
1
0612-
39
SHIM; BRG HOLDER
T=0.076
8-94469-778-0
AR
1
0612-
39
SHIM; BRG HOLDER
T=0.050
8-94469-779-0
AR
1
0612-
40
SEAL; OIL,REAR AXLE
8-94318-910-0
02
1
0612-
49
CASE; RR AXLE
IDN
8-97958-930-2
01
1
0612-
58
PLUG; DRAIN,AXLE CASE
M16X12.5 IDN
8-97109-869-0
01
1
0612-0805
58
PLUG; DRAIN,AXLE CASE
M16X12.5
8-97307-060-0
01
1
0806-
59
GASKET; DRAIN PLUG
ID=16.2 OD=24
9-09571-416-0
01
1
0612-
60
BREATHER; RR AXLE CASE
L=29
8-98006-960-0
01
1
0612-
63
PLUG; OIL FILLER,AXLE CASE
M20X10.5
9-09662-005-0
01
1
0612-0805
63
PLUG; OIL FILLER,AXLE CASE
M20X10.5
8-98009-333-0
01
1
0806-
64
GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
8-94462-734-0
01
1
0612-
69
STUD; AXLE CASE
M8X25 L=36
5-09300-037-0
02
1
0612-
70
NUT; CARRIER
M8
5-09400-020-0
02
1
0612-
71
WASHER; LK,FINAL DRIVE SETTING
ID=8.2
0-91510-808-0
02
1
0612-
79
BOLT; COVER TO CASE
M8X25 W/LK WASHER
8-98022-410-0
04
1
0612-
79
BOLT; COVER TO CASE
M8X30 W/LK WASHER
8-98022-411-0
02
1
0612-
79
BOLT; COVER TO CASE
M8X90 W/LK WASHER
8-98022-412-0
02
1
0612-
