51135 - TBR-WAGON(INDONESIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

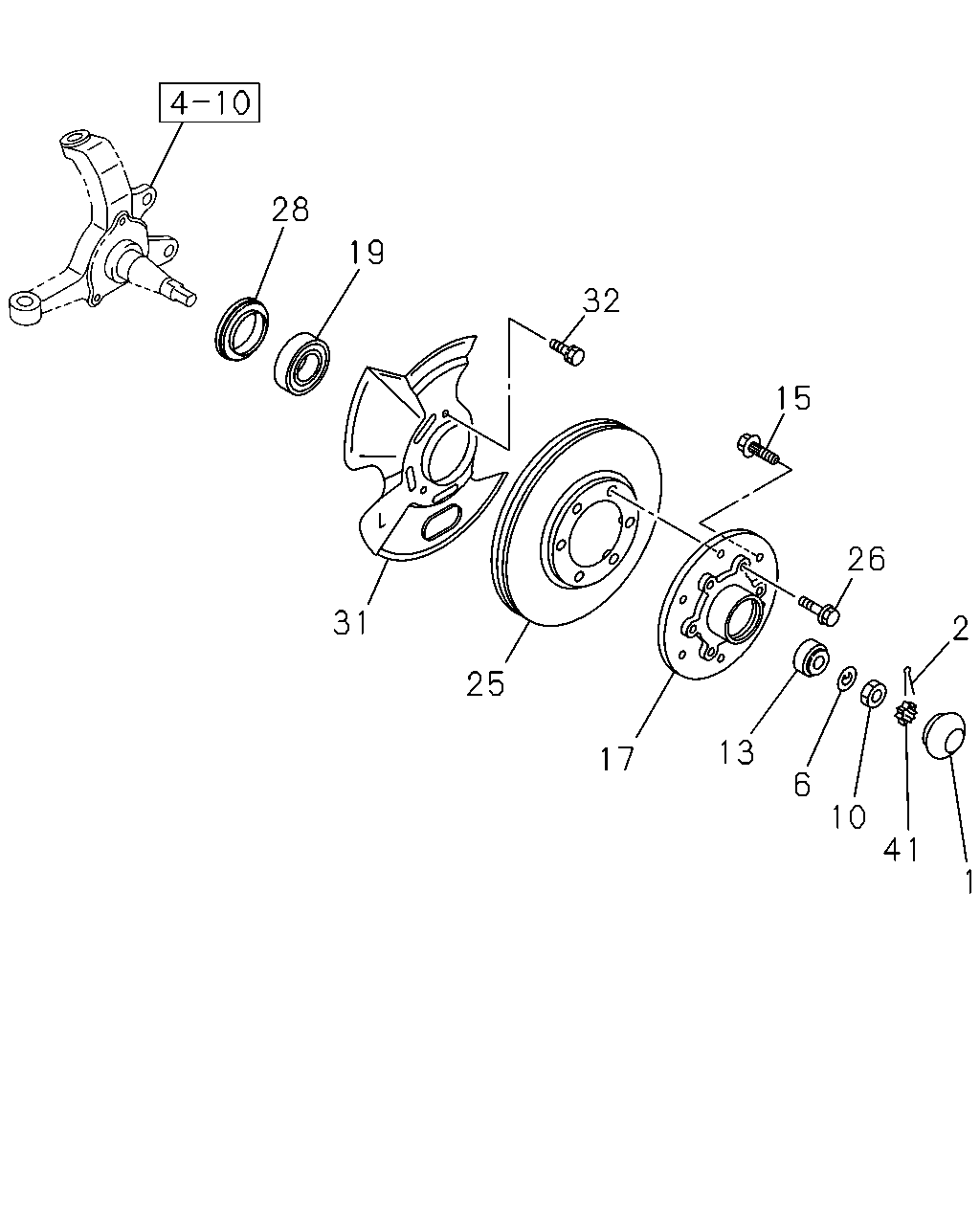

4-11 — FRONT HUB AND DRUM OR ROTOR
(#95776) — 19 parça
1
2
41
10
6
13
26
15
17
25
31
32
19
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
9-42313-080-1
02
1
0612-0705
1
CAP; HUB,FRT AXLE
8-98006-055-0
02
1
0706-
2
PIN; SPLIT,HUB TO AXLE SHAFT
OD=3.7 L=30
0-81124-030-0
02
1
0612-
6
WASHER; LK,FRT HUB
T=3.2 OD=35
8-97382-661-0
02
1
0612-
10
NUT; FRT HUB BRG
M18
8-94243-927-1
02
1
0612-
13
BEARING; HUB OUTER,FRT AXLE
NSK IDN
8-94242-913-0
02
1
0612-
13
BEARING; HUB OUTER,FRT AXLE
TIMKEN
8-94361-801-0
02
1
0612-
15
PIN; WHEEL,FRT AXLE
M12X37.5
8-97213-871-0
12
1
0612-
17
HUB; FRT AXLE
IDN
8-97957-603-0
02
1
0612-
19
BEARING; HUB INNER,FRT AXLE
NSK
8-94242-683-0
02
1
0612-
19
BEARING; HUB INNER,FRT AXLE
TIMKEN
8-94361-804-0
02
1
0612-
25
ROTOR; DISC BRK,FRT
IDN
8-97956-670-0
02
1
0612-
26
BOLT; BRK,DISC TO HUB
M12X31.5
8-94409-921-0
12
1
0612-
28
SEAL; OIL,FRT HUB
IMA
8-98036-593-0
02
1
0612-
31
COVER; DUST,FRT BRAKE
8-94317-628-0
01
1
0612-
31
COVER; DUST,FRT BRAKE
8-94317-627-0
01
1
0612-
32
BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER
8-97025-916-0
06
1
0612-0805
32
BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER
8-98029-928-0
06
1
0806-
41
RETAINER; NUT,FRT HUB
8-94243-928-1
02
1
0612-
