Isuzu WW
▶
AUV
▶
TBR
▶
51135 - TBR-WAGON(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#95772) — 11 parça
◀

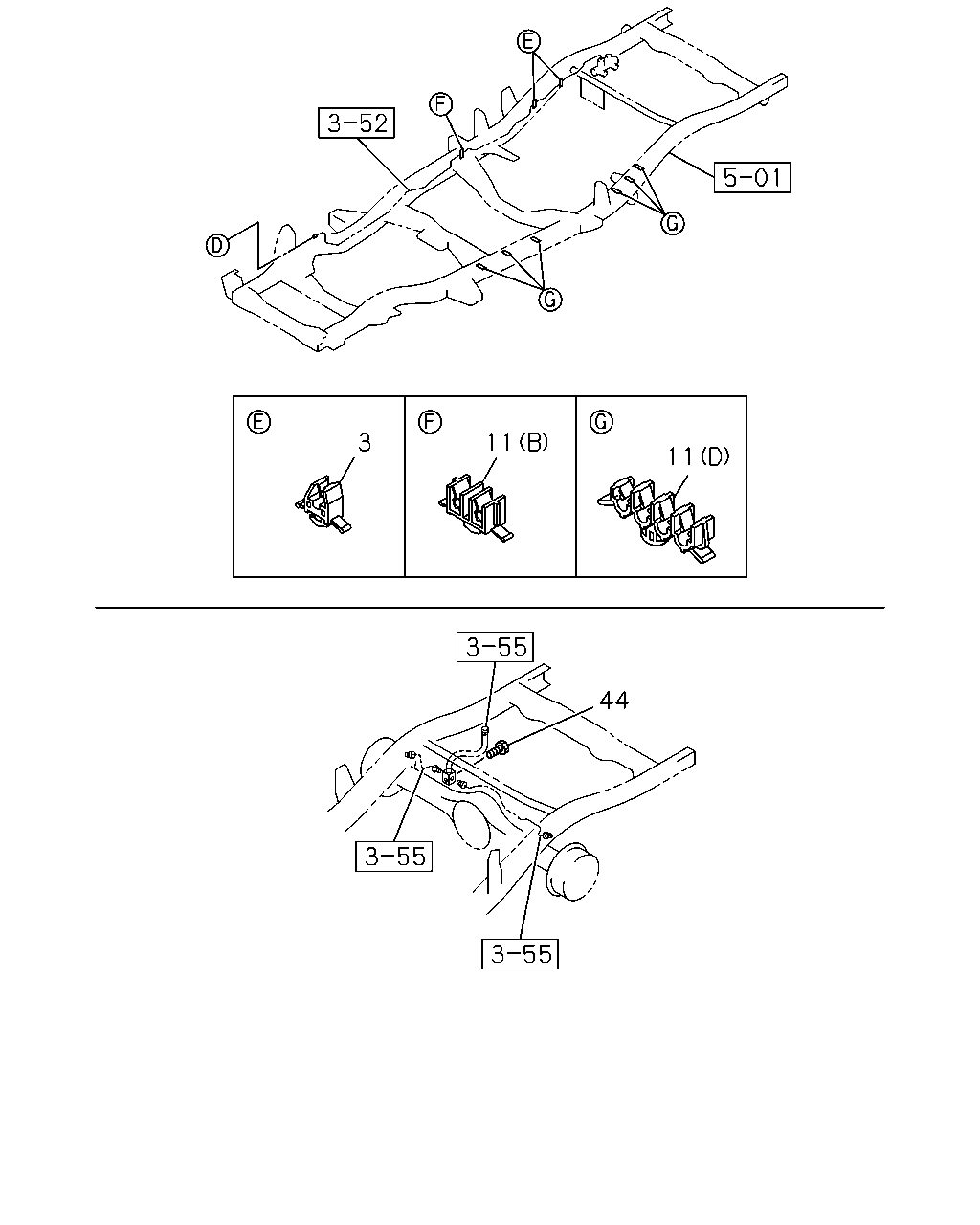

[358A] FRAME SIDE (6 parça)

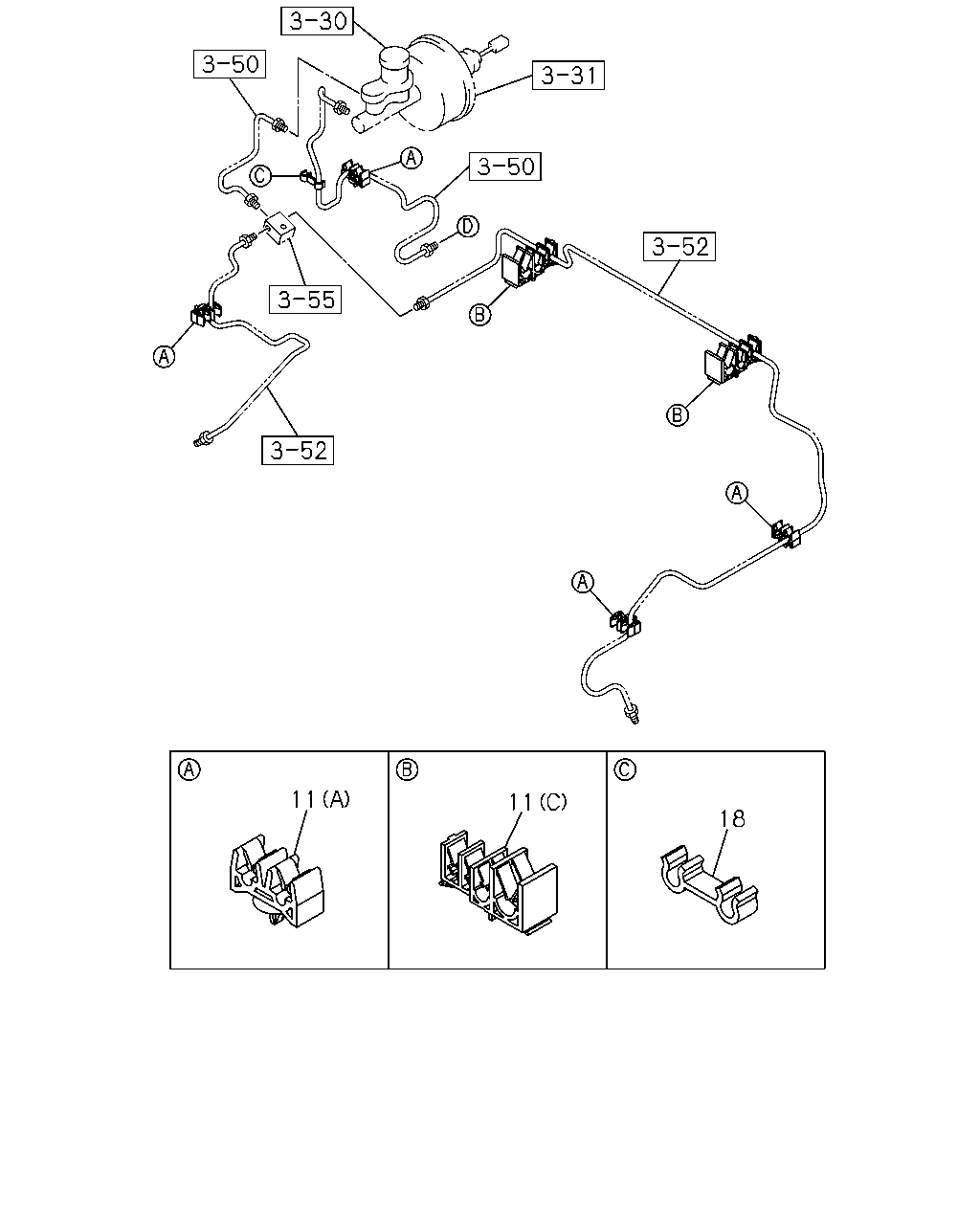

[358A] ENG ROOM (5 parça)
▶
11
3
11
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
CLIP; BRK PIPE
H=28.8
8-94222-877-1
02
1
0612-
11
CLIP; OIL PIPE
(A)
8-94222-044-2
04
1
0612-
11
CLIP; OIL PIPE
(B)
8-94435-553-0
01
1
0612-
11
CLIP; OIL PIPE
(C)
8-97102-873-0
02
1
0612-
11
CLIP; OIL PIPE
(D)
8-97146-096-0
06
1
0612-
44
BOLT; CLIP TO FRAME
M8X30 FLANGE
0-28650-830-0
01
1
0612-
18
11
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
CLIP; OIL PIPE
(A)
8-94222-044-2
04
1
0612-
11
CLIP; OIL PIPE
(B)
8-94435-553-0
01
1
0612-
11
CLIP; OIL PIPE
(C)
8-97102-873-0
02
1
0612-
11
CLIP; OIL PIPE
(D)
8-97146-096-0
06
1
0612-
18
CLIP; BRK PIPE
8-94338-104-0
01
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
