4-60 — REAR SUSPENSION (#9577) — 54 parça

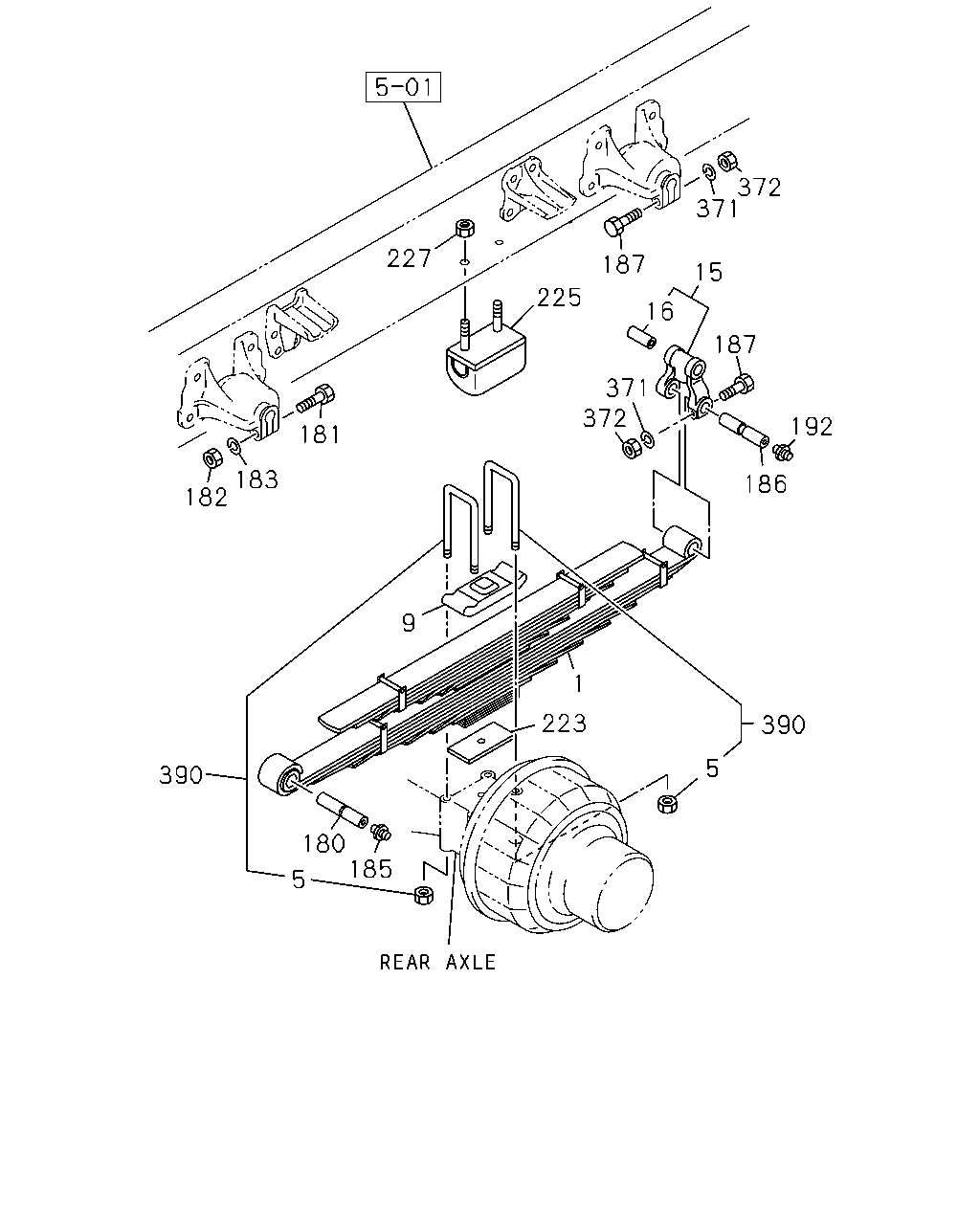

çizim 40507
372 371 227 187 15 225 16 187 371 372 181 192 183 182 186 9 1 223 390 5 390 180 185 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF 		1-51300-333-2 02 1 0005- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF 		1-51300-334-3 02 1 0005- ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 0005-0512 ● ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601- ● ●
9 PAD; U BOLT,RR SPR 1-51372-048-1 02 1 0005- ● ●
15 SHACKLE; RR SPR 1-51362-049-2 02 1 0005- ● ●
16 BUSHING; SHACKLE,RR SPR 9-51351-019-2 02 1 0005-0902 ● ●
16 BUSHING; SHACKLE,RR SPR 8-98081-830-0 02 1 0903- ● ●
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 02 1 0005- ● ●
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 0005- ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 0005-0512 ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0601- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 0005-0603 ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0604- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0005-0512 ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ●
186 PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 04 1 0005- ● ●
187 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 04 1 0005- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0512 ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ●
223 SPACER; U BOLT,RR SPR 1-51377-166-0 02 1 0005- ● ●
225 RUBBER; CUSHION,RR SPR 1-53366-067-4 02 1 0005- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0005-0602 ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 0005-0603 ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-514-0 04 1 0604- ● ●
372 NUT; SHACKLE
M14 		9-99110-414-0 04 1 0005-0512 ● ●
372 NUT; SHACKLE
M14 		0-91110-514-0 04 1 0601- ● ●
390 U-BOLT SET; RR SPRING
L=455 		1-87870-268-1 04 1 0005- ● ●

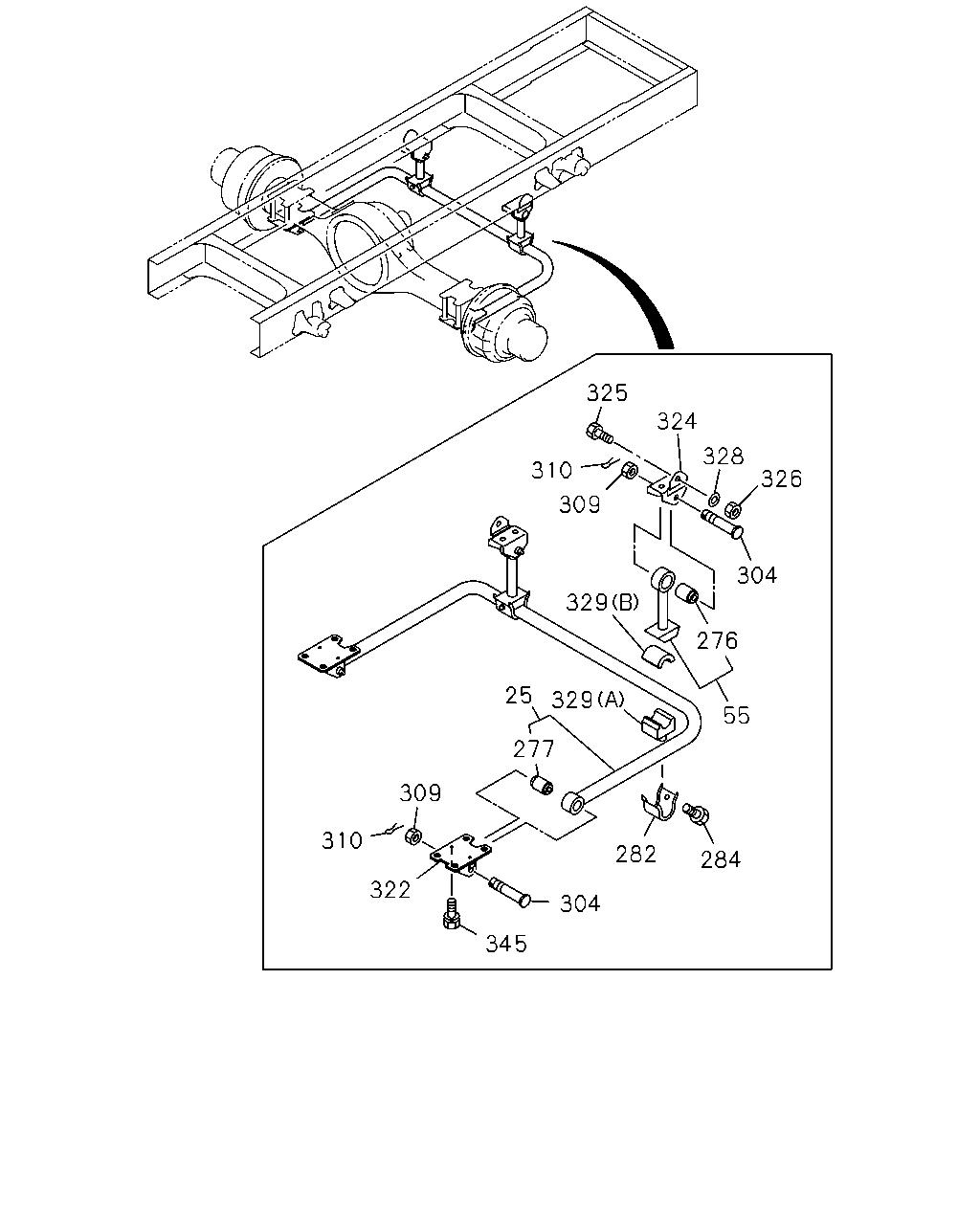

çizim 40574
325 324 328 310 326 309 304 329 276 25 329 55 277 309 310 282 284 322 304 345
BalonParca AdiParca NoAdetTipApplied Date A B
25 BAR ASM; STAB,RR SUSP 1-51770-029-1 01 1 0005- ●
55 ROD; STAB 1-51770-024-1 02 1 0005- ●
276 BUSHING; STAB ROD 1-51779-019-0 04 1 0005-0401 ●
276 BUSHING; STAB ROD 1-51779-019-0 02 1 0402- ●
277 BUSHING; STAB,RR UPR 1-51779-067-0 02 1 0005- ●
282 RETAINER; STAB BAR 1-51789-015-2 02 1 0005- ●
284 BOLT; RET TO RET
M10X25 		8-94463-351-0 08 1 0005- ●
304 PIN; STAB ROD 1-51789-020-2 04 1 0005- ●
309 NUT; STAB ROD
M24 		9-99116-424-0 04 1 0005- ●
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		9-08115-045-0 04 1 0005-0606 ●
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		0-81125-045-0 04 1 0607- ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-128-0 01 1 0005- ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-038-1 01 1 0005- ●
324 BRACKET; STAB BAR TO FRAME 1-51781-059-0 02 1 0005- ●
325 BOLT; BRKT TO FRAME
M14X40 		9-92061-440-0 02 1 0005-0210 ●
325 BOLT; BRKT TO FRAME
M14X45 		9-92061-445-0 04 1 0005-0210 ●
325 BOLT; BRKT TO FRAME
M14X45 		9-92061-445-0 06 1 0211- ●
326 NUT; BRKT TO FRAME
M14 		9-99110-514-0 06 1 0005-0512 ●
326 NUT; BRKT TO FRAME
M14 		0-91110-514-0 06 1 0601- ●
328 WASHER; PL,BRKT
ID=15 		9-09651-069-0 12 1 0005-0910 ●
328 WASHER; PL,BRKT
ID=15 		8-98010-627-1 12 1 0911- ●
329 BUSHING; STAB ROD
(B) 		1-51789-051-1 02 1 0005- ●
329 BUSHING; STAB ROD
(A) 		1-51789-052-0 02 1 0005- ●
345 BOLT; BRKT
M10X16 FLANGE 		0-28081-016-0 04 1 0005-0512 ●
345 BOLT; BRKT
M10X16 FLANGE 		0-28051-016-0 04 1 0601- ●
