51135 - TBR-WAGON(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶

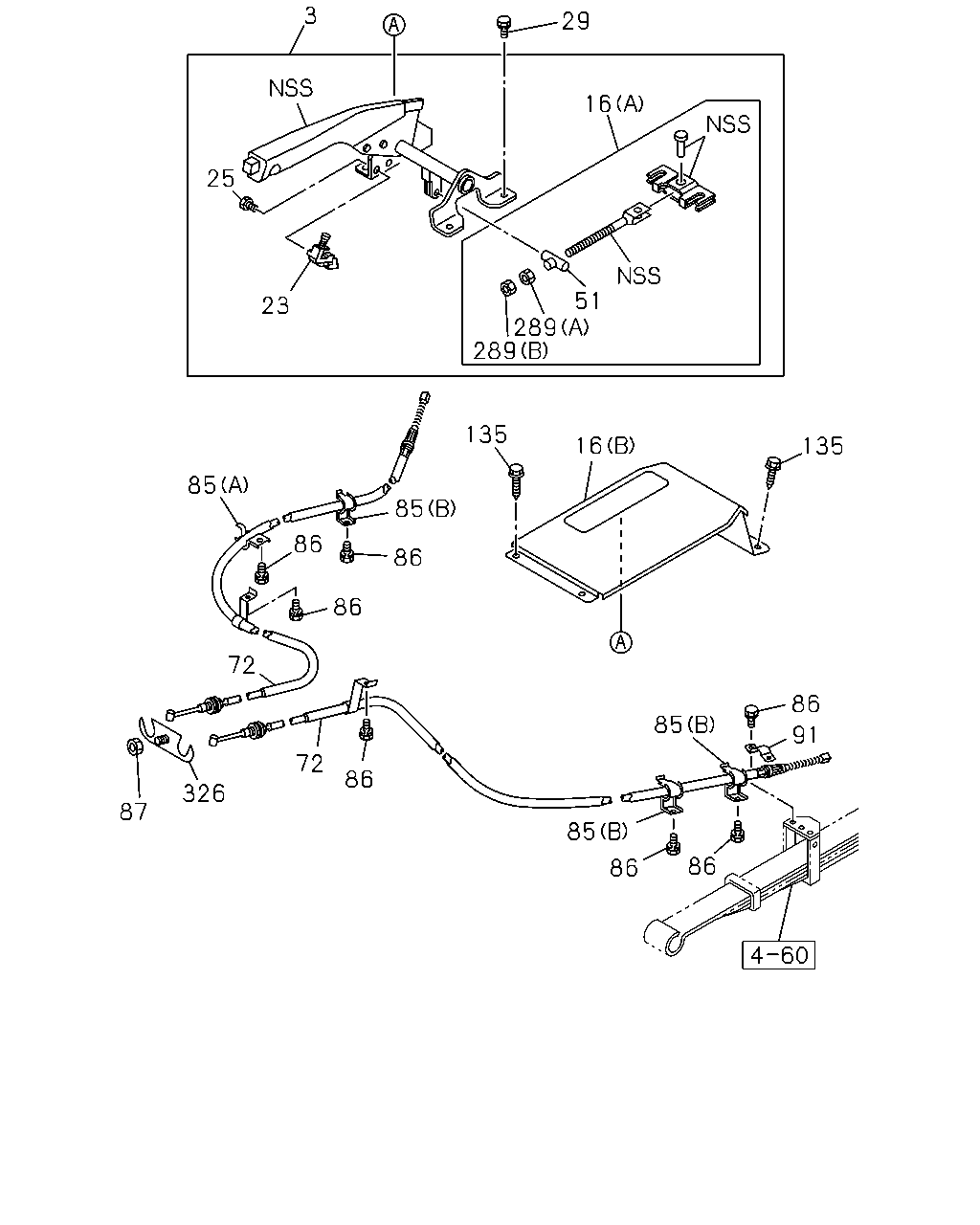

3-11 — PARKING BRAKE CONTROL
(#95766) — 22 parça
87
72
326
86
72
86
86
86
85
85
85
85
86
86
86
91
135
16
135
23
25
3
29
16
51
289
289
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
LEVER; PARKING BRK
8-97177-851-0
01
1
0612-
16
BRACKET; PARKING BRK
(A)
8-97202-451-0
01
1
0612-
16
BRACKET; PARKING BRK
GRADE LM(RBA),GRADE LV(RBB) EXC. CAB UP<W60> (B) IDN
8-97957-529-1
01
1
0612-
23
SWITCH; PARKING BRK
8-97179-739-0
01
1
0612-
25
SCREW; SW,PARKING BRK
8-97179-727-0
01
1
0612-
29
BOLT; PARKING BRK LEVER TO BODY
M8X20 FLANGE
0-28450-820-0
04
1
0612-
51
PIN; JOINT,RELAY LEVER
8-97202-452-0
01
1
0612-
72
CABLE; PARKING BRK
CAB UP<W60> IDN
8-97956-578-0
01
1
0612-
72
CABLE; PARKING BRK
CAB UP<W60> IDN
8-97956-577-0
01
1
0612-
72
CABLE; PARKING BRK
EXC. CAB UP<W60> IDN
8-97956-185-0
01
1
0612-
72
CABLE; PARKING BRK
EXC. CAB UP<W60> IDN
8-97956-184-0
01
1
0612-
85
CLIP; BRKT
(B)
8-94146-602-0
03
1
0612-
85
CLIP; BRKT
(A) ID=14 IDN
9-09916-883-0
01
1
0612-
86
BOLT
M6X12 FLANGE
0-28050-612-0
08
1
0612-
86
BOLT
M6X16 FLANGE
0-28450-616-0
02
1
0612-
87
NUT
M10 FLANGE
0-91180-110-0
01
1
0612-
91
CLIP; PARKING BRK CABLE
IDN
8-97045-075-0
01
1
0612-
91
CLIP; PARKING BRK CABLE
IDN
8-97045-074-0
01
1
0612-
135
BOLT; PARKING BRK BRKT
GRADE LM(RBA),GRADE LV(RBB) EXC. CAB UP<W60> M6X16 FLANGE
0-28450-616-0
04
1
0612-
289
NUT; PARKING BRK
(A)
8-97202-449-0
01
1
0612-
289
NUT; PARKING BRK
(B)
8-97202-450-0
01
1
0612-
326
RETAINER; PARK CABLE
IDN
8-97562-256-0
01
1
0612-
