◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51135 - TBR-WAGON(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#95761) — 30 parça

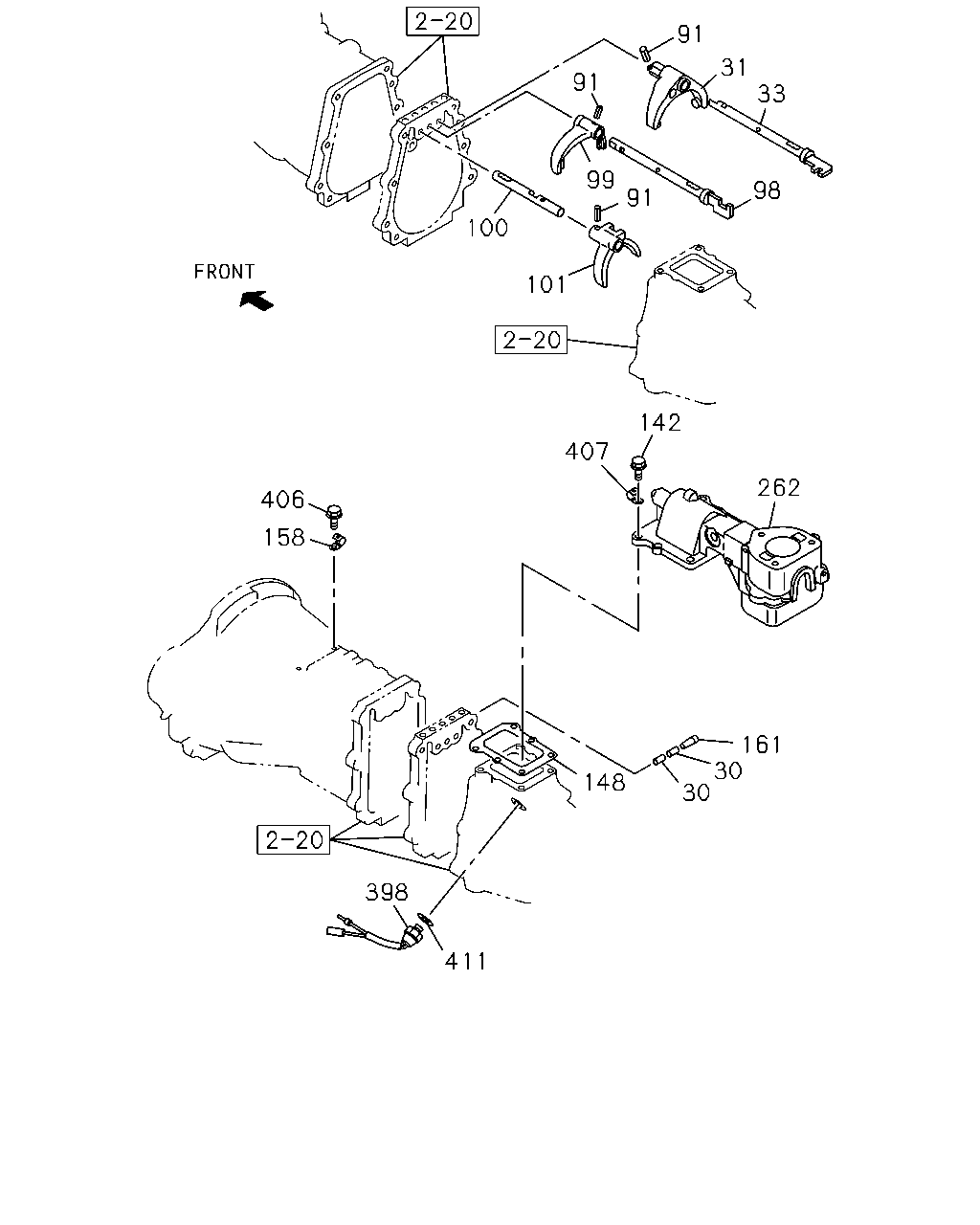

çizim 288330
100 101 99 91 91 91 31 33 98 407 142 262 406 158 398 411 148 30 30 161
BalonParca AdiParca NoAdetTipApplied Date
30 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 0612-
31 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 0612-
33 ROD; SHIFT,LOW & 2ND
IDN 		8-97248-600-0 01 1 0612-
91 PIN; SPR,SHIFT ARM
D=4.2 L=25 		8-94171-541-0 03 1 0612-
98 ROD; SHIFT,TOP & 3RD
IDN 		8-97248-598-0 01 1 0612-
99 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 0612-
100 ROD; SHIFT,REV & 5TH
IDN 		8-97248-601-0 01 1 0612-
101 ARM; SHIFT,REV & 5TH 8-94455-851-3 01 1 0612-
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 0612-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 0612-
158 CLIP; HARNESS
ID=12 IDN 		8-97367-984-1 02 1 0612-
161 PLUG; INTER LK HOLE 8-94239-543-1 01 1 0612-
262 BOX ASM; SHIFT CONT 8-98017-735-0 01 1 0612-
398 SWITCH; REV LAMP 8-98042-851-0 01 1 0612-
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0612-
407 CLIP; SWITCH HARNESS
ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 01 1 0612-0708
407 CLIP; SWITCH HARNESS
ID=12 IDN 		8-97367-984-1 01 1 0709-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0612-
çizim 288331
262 288 22 132 248 22 174 459 268 271 271 289 261 274
BalonParca AdiParca NoAdetTipApplied Date
22 CAP; RETURN SPR,SHIFT BLOCK
IDN 		8-97181-326-0 02 1 0612-
132 SPRING; SELECT STOP
IDN 		8-97181-395-0 01 1 0612-
174 SPRING; REV
IDN 		8-97181-394-0 01 1 0612-
248 RETAINER; CONT BOX
IDN 		8-97181-325-0 02 1 0612-
261 ROD; GEAR CONT
IDN 		8-97257-825-0 01 1 0612-
262 BOX ASM; SHIFT CONT 8-98017-735-0 01 1 0612-
268 LEVER; CONT,INTERNAL
IDN 		8-97184-894-0 01 1 0612-
271 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 0612-
274 COVER; SHAFT,QUAD BOX
IDN 		8-97181-324-1 01 1 0612-
288 PLUG; AIR BREATHER
IDN 		9-00097-517-0 01 1 0612-
289 SEAL; OIL,CONT SHAFT,QUAD BOX 8-98017-744-0 01 1 0612-
459 PIN; SPR,ROD TO ARM
OD=5 IDN 		8-97184-905-0 01 1 0612-
