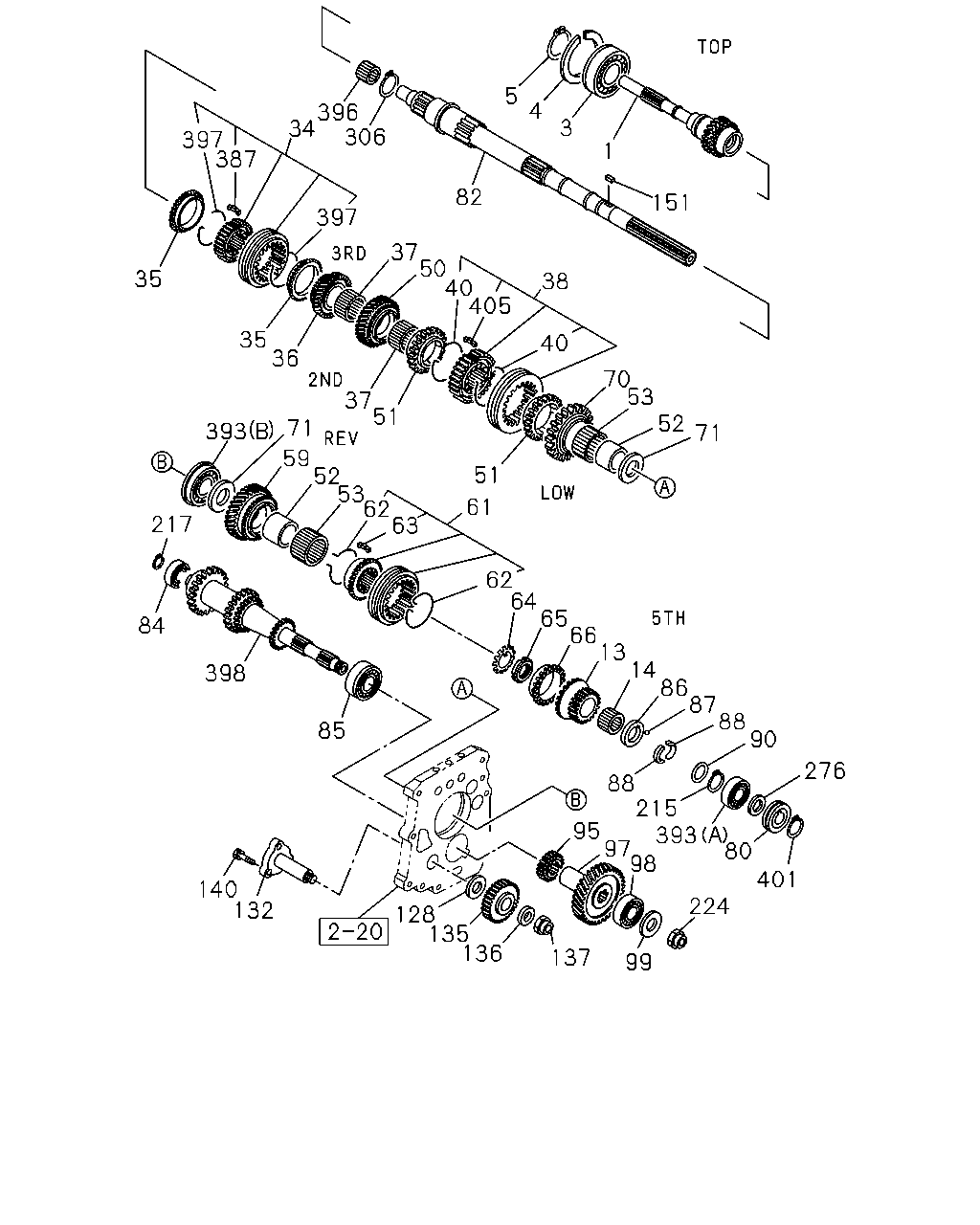

2-26 — MANUAL TRANSMISSION GEAR (#95760) — 73 parça

128 135 136 137 99 224 98 97 95 132 140 401 80 393 215 88 85 398 84 217 393 71 59 52 53 62 63 61 51 62 64 65 66 13 14 86 87 88 90 276 35 35 36 37 51 397 387 34 397 37 50 40 405 40 38 70 53 52 71 396 306 82 5 4 3 1 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	0612-
3	BEARING; TOP GEAR SHAFT NSK	8-94167-637-0	01	1	0612-0901
3	BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	0902-
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94206-485-0	01	1	0612-
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	0612-
13	GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	0612-
14	BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	0612-
34	SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0612-
35	RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	0612-
36	GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	0612-
37	BEARING; NEEDLE,2ND & 3RD NSK	8-94161-989-0	02	1	0612-
38	SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0612-
40	SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	0612-
50	GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	0612-
51	RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	0612-
52	COLLAR; NEEDLE BRG,LOW	8-94248-620-1	02	1	0612-0901
52	COLLAR; NEEDLE BRG,LOW	8-97238-834-0	02	1	0902-
53	BEARING; NEEDLE,LOW & REV NSK	8-94161-991-0	02	1	0612-
59	GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0612-
61	SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	0612-
62	SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	0612-
63	INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	0612-
64	WASHER; LK,LOW	8-94238-095-0	01	1	0612-
65	NUT; MAINSHAFT M32	8-94238-094-1	01	1	0612-
66	RING; BLOCK,SYN Z=30	8-94463-830-1	01	1	0612-
70	GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	0612-
71	WASHER; THRUST,LOW ID=32.0	5-33239-043-3	02	1	0612-
80	GEAR; SPD DRIVE FINAL GEAR RATIO 43/10(S7C) FRT&RR 185R14-6 5.5JJX14(ATD),FRT&RR 185R14LT-6 5JX14(AWZ) Z=5	8-94443-096-0	01	1	0612-
80	GEAR; SPD DRIVE FINAL GEAR RATIO 43/11(GW1) FRT&RR 185R14-6 5.5JJX14(ATD),FRT&RR 205/65R15 6JJX15 ALUMI(ATE),FRT&RR 185R14LT-6 5JX14(AWZ) Z=6	8-94161-085-1	01	1	0612-
80	GEAR; SPD DRIVE FINAL GEAR RATIO 43/10(S7C) FRT&RR 235/70R15 6JJ ALUMI(AXA) Z=6	8-94161-085-1	01	1	0612-
82	SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	0612-
84	BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	0612-
85	BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-97365-931-0	01	1	0612-
86	WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	0612-
86	WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	0612-
86	WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	0612-
86	WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	0612-
86	WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	0612-
86	WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	0612-
87	BALL; THRUST WASHER	8-94201-356-0	01	1	0612-
88	RING; THRUST,THRUST WASHER	8-94473-936-2	02	1	0612-
90	RING; SNAP,THRUST RING ID=37.0	9-09180-040-0	01	1	0612-
95	GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	0612-
97	GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	0612-
98	BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	0612-
99	WASHER; PL,COUNTER 5TH GEAR ID=17 OD=30	0-91610-516-0	01	1	0612-
128	WASHER; THRUST,REV SHAFT ID=22.0	5-33363-004-0	01	1	0612-
132	SHAFT; REV	8-94435-146-0	01	1	0612-
135	GEAR; REV IDLER Z=23	8-94161-118-1	01	1	0612-0705
135	GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0706-0708
135	GEAR; REV IDLER Z=23	8-98082-807-0	01	1	0709-0809
135	GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0810-1003
135	GEAR; REV IDLER Z=33 IDN	8-98146-724-0	01	1	1004-
136	WASHER; THRUST,REV IDLE,RR ID=16.2	5-33363-003-3	01	1	0612-
137	NUT; REV GEAR M16	8-98035-678-0	01	1	0612-
140	BOLT; LK PIECE M8X16 FLANGE	0-28050-816-0	01	1	0612-
151	KEY; FEATHER,SPD DRIVE GEAR	9-08020-510-0	01	1	0612-
215	RING; SNAP,BALL BRG ID=27.9	9-09180-030-0	01	1	0612-
217	RING; SNAP,COUNTER FRT BRG ID=18.5	9-09180-020-0	01	1	0612-
224	NUT; SELF LK,COUNTER M16	8-98035-678-0	01	1	0612-
276	SPACER; BRG TO DRIVE GEAR	8-94161-087-0	01	1	0612-
306	RING; SNAP,MAINSHAFT T=1.50	5-09588-020-1	01	1	0612-
306	RING; SNAP,MAINSHAFT T=1.55	5-09588-021-1	01	1	0612-
306	RING; SNAP,MAINSHAFT T=1.60	5-09588-022-1	01	1	0612-
306	RING; SNAP,MAINSHAFT T=1.65	5-09588-023-1	01	1	0612-
387	INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	0612-
393	BEARING; MAINSHAFT END (A) NSK	8-94173-863-0	01	1	0612-
393	BEARING; MAINSHAFT END (B) NSK	8-94173-866-0	01	1	0612-
396	BEARING; NEEDLE,MAINSHAFT KOYO	9-00096-100-1	01	1	0612-
397	SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	0612-
398	GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	0612-
401	RING; SNAP,SPD DRIVE GEAR ID=27.9	9-09180-030-0	01	1	0612-
405	INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	0612-
