◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#9576) — 131 parça

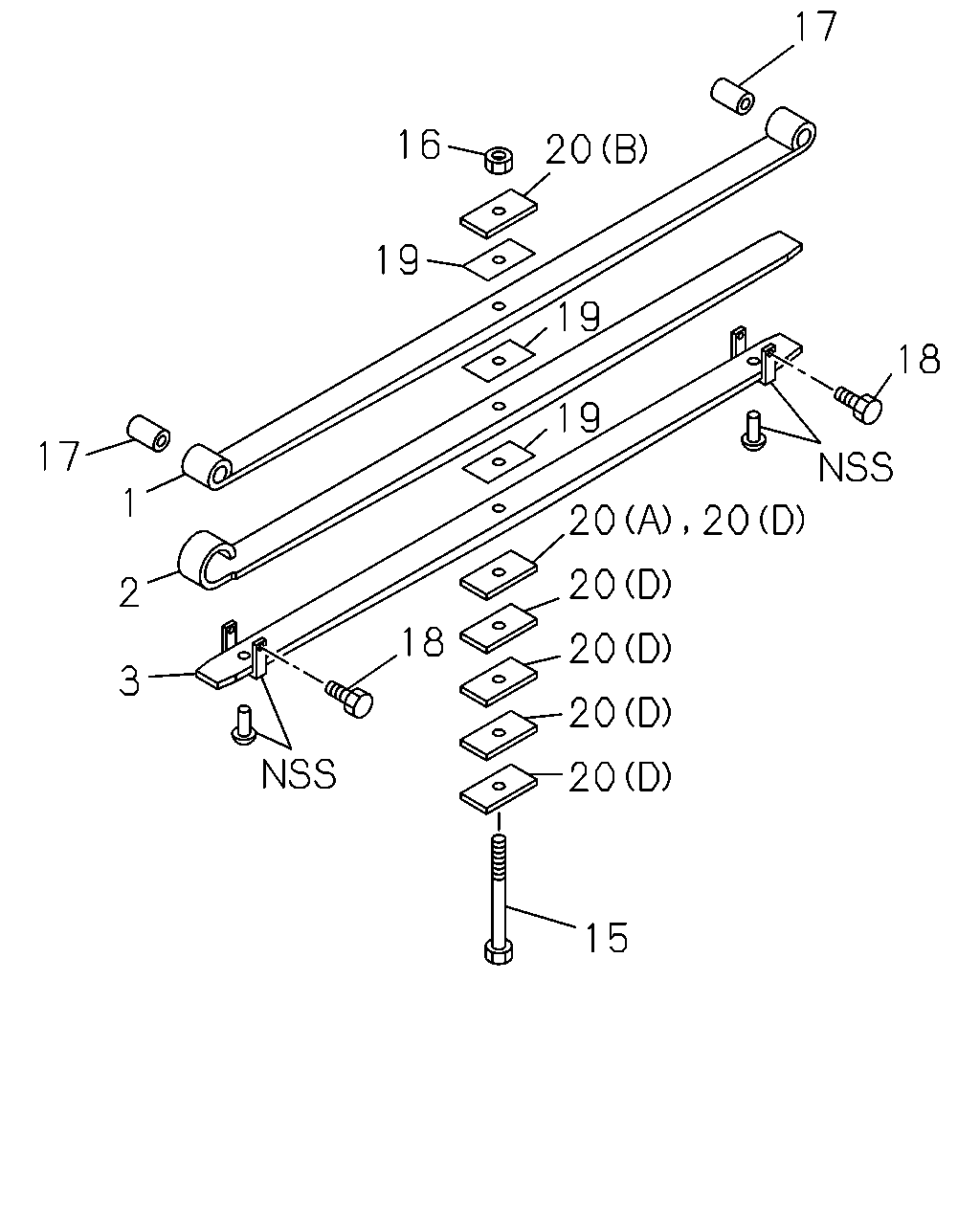

çizim 39893
17 16 20 19 19 18 19 17 1 20 20 20 2 18 20 3 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51131-343-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51131-345-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51131-475-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: D = 1-51130-743-0 		1-51131-743-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: E = 1-51130-744-0 		1-51131-744-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: F = 1-51130-792-0 		1-51131-792-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51132-343-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51132-345-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51132-475-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: D = 1-51130-743-0 		1-51132-743-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: E = 1-51130-744-0 		1-51132-744-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: F = 1-51130-792-0 		1-51132-792-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51133-343-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51133-345-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51133-475-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF ASM PART: D = 1-51130-743-0 		1-51133-743-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF ASM PART: E = 1-51130-744-0 		1-51133-744-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF ASM PART: F = 1-51130-792-0 		1-51133-792-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: C = 1-51130-475-0, F = 1-51130-792-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=110 ASM PART: D = 1-51130-743-0 		1-51156-368-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=100 ASM PART: E = 1-51130-744-0 		1-51156-405-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0, D = 1-51130-743-0, E = 1-51130-744-0, F = 1-51130-792-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0, D = 1-51130-743-0, E = 1-51130-744-0, F = 1-51130-792-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: F = 1-51130-792-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: D = 1-51130-743-0, E = 1-51130-744-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 1-51130-345-0, C = 1-51130-475-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: D = 1-51130-743-0, E = 1-51130-744-0, F = 1-51130-792-0 		1-51177-071-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: D = 1-51130-743-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: D = 1-51130-743-0, E = 1-51130-744-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=12 ASM PART: B = 1-51130-345-0, F = 1-51130-792-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=12 ASM PART: C = 1-51130-475-0 		1-51177-107-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=9 ASM PART: F = 1-51130-792-0 		1-51177-114-0 05 1 -
20 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: B = 1-51130-345-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=13 ASM PART: A = 1-51130-343-0 		1-51177-181-0 01 1 -

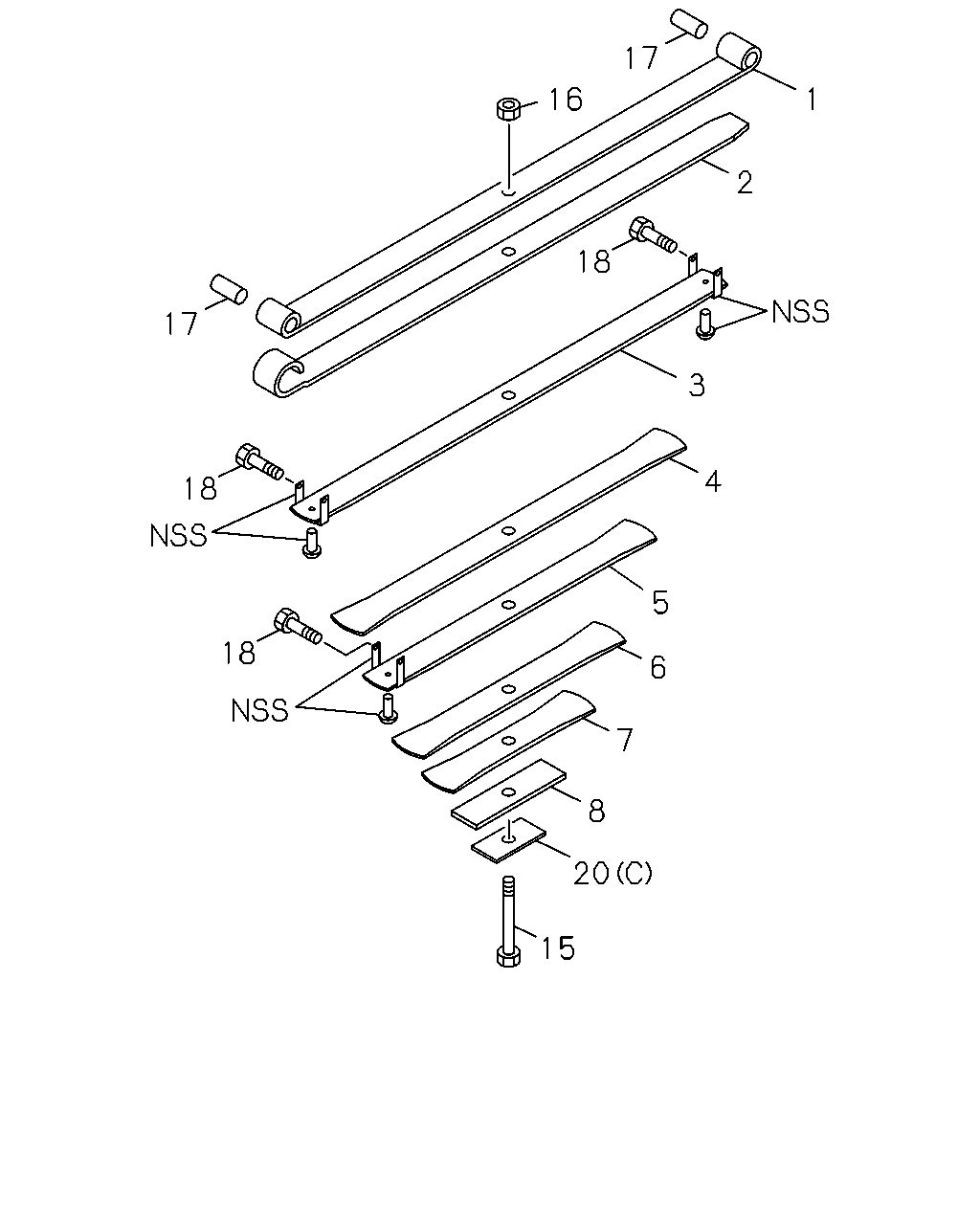

çizim 41424
17 16 1 2 18 17 3 4 18 5 18 6 7 8 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51131-343-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51131-345-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51131-475-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: D = 1-51130-743-0 		1-51131-743-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: E = 1-51130-744-0 		1-51131-744-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: F = 1-51130-792-0 		1-51131-792-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51132-343-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51132-345-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51132-475-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: D = 1-51130-743-0 		1-51132-743-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: E = 1-51130-744-0 		1-51132-744-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: F = 1-51130-792-0 		1-51132-792-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51133-343-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51133-345-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51133-475-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF ASM PART: D = 1-51130-743-0 		1-51133-743-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF ASM PART: E = 1-51130-744-0 		1-51133-744-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF ASM PART: F = 1-51130-792-0 		1-51133-792-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51134-343-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51134-345-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51134-475-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51135-343-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51135-345-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51135-475-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51136-343-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51136-345-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51136-475-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51137-343-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51137-345-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51137-475-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51138-343-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: C = 1-51130-475-0, F = 1-51130-792-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=110 ASM PART: D = 1-51130-743-0 		1-51156-368-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=100 ASM PART: E = 1-51130-744-0 		1-51156-405-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0, D = 1-51130-743-0, E = 1-51130-744-0, F = 1-51130-792-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0, D = 1-51130-743-0, E = 1-51130-744-0, F = 1-51130-792-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: F = 1-51130-792-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: D = 1-51130-743-0, E = 1-51130-744-0 		1-09000-536-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: D = 1-51130-743-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: D = 1-51130-743-0, E = 1-51130-744-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=12 ASM PART: B = 1-51130-345-0, F = 1-51130-792-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=12 ASM PART: C = 1-51130-475-0 		1-51177-107-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=9 ASM PART: F = 1-51130-792-0 		1-51177-114-0 05 1 -
20 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: B = 1-51130-345-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=13 ASM PART: A = 1-51130-343-0 		1-51177-181-0 01 1 -

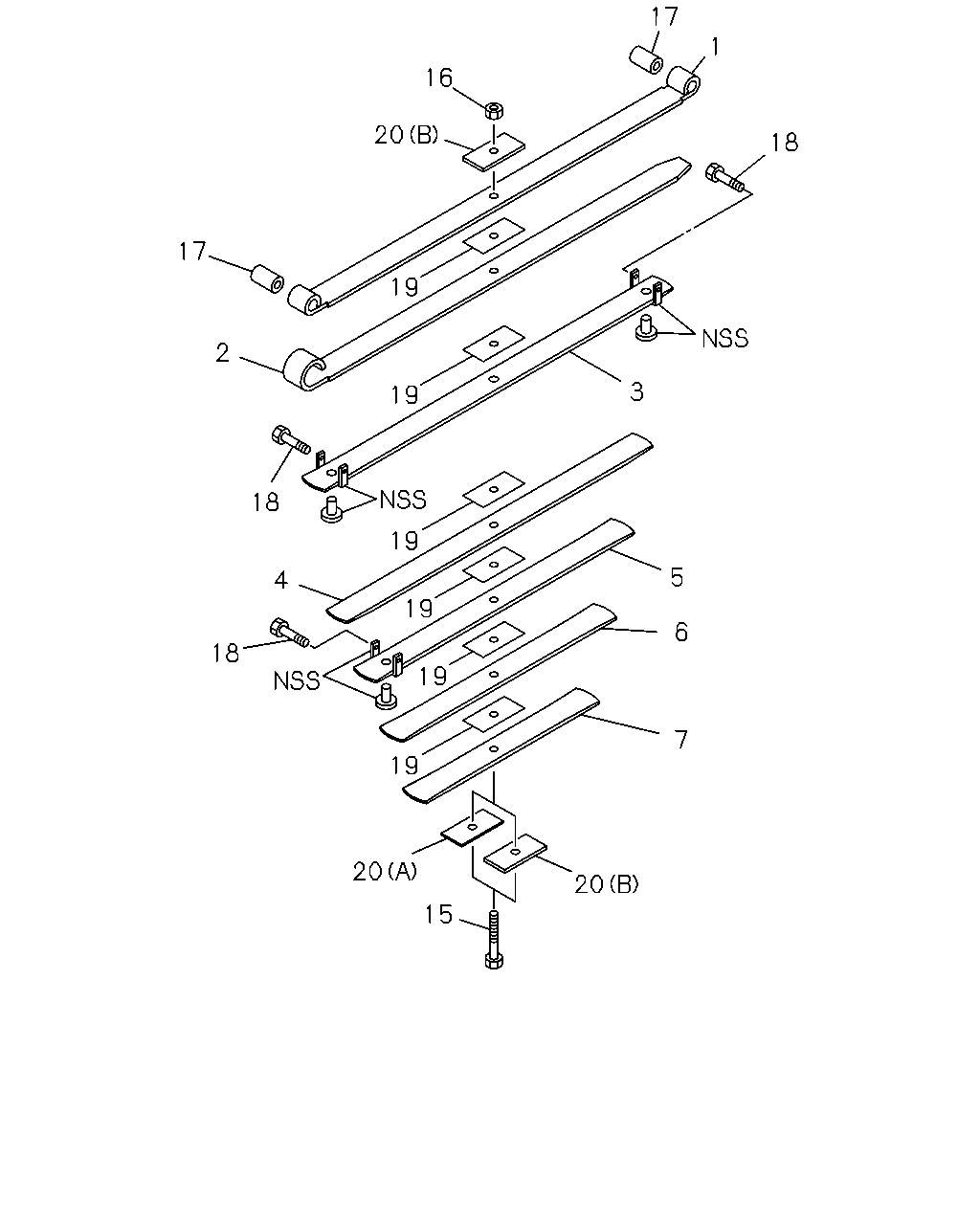

çizim 41808
17 1 16 20 18 17 19 2 3 19 18 19 5 4 19 6 18 19 7 19 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51131-343-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51131-345-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51131-475-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: D = 1-51130-743-0 		1-51131-743-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: E = 1-51130-744-0 		1-51131-744-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: F = 1-51130-792-0 		1-51131-792-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51132-343-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51132-345-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51132-475-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: D = 1-51130-743-0 		1-51132-743-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: E = 1-51130-744-0 		1-51132-744-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: F = 1-51130-792-0 		1-51132-792-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51133-343-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51133-345-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51133-475-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF ASM PART: D = 1-51130-743-0 		1-51133-743-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF ASM PART: E = 1-51130-744-0 		1-51133-744-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF ASM PART: F = 1-51130-792-0 		1-51133-792-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51134-343-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51134-345-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51134-475-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51135-343-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51135-345-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51135-475-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51136-343-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51136-345-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51136-475-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51137-343-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7 LEAF ASM PART: B = 1-51130-345-0 		1-51137-345-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7 LEAF ASM PART: C = 1-51130-475-0 		1-51137-475-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: C = 1-51130-475-0, F = 1-51130-792-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=110 ASM PART: D = 1-51130-743-0 		1-51156-368-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=100 ASM PART: E = 1-51130-744-0 		1-51156-405-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0, D = 1-51130-743-0, E = 1-51130-744-0, F = 1-51130-792-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0, D = 1-51130-743-0, E = 1-51130-744-0, F = 1-51130-792-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: F = 1-51130-792-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: D = 1-51130-743-0, E = 1-51130-744-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 1-51130-345-0, C = 1-51130-475-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: D = 1-51130-743-0, E = 1-51130-744-0, F = 1-51130-792-0 		1-51177-071-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: D = 1-51130-743-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: D = 1-51130-743-0, E = 1-51130-744-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=12 ASM PART: B = 1-51130-345-0, F = 1-51130-792-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=12 ASM PART: C = 1-51130-475-0 		1-51177-107-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=9 ASM PART: F = 1-51130-792-0 		1-51177-114-0 05 1 -
20 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: B = 1-51130-345-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=13 ASM PART: A = 1-51130-343-0 		1-51177-181-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
