4-50 — FRONT SUSPENSION (#9575) — 151 parça

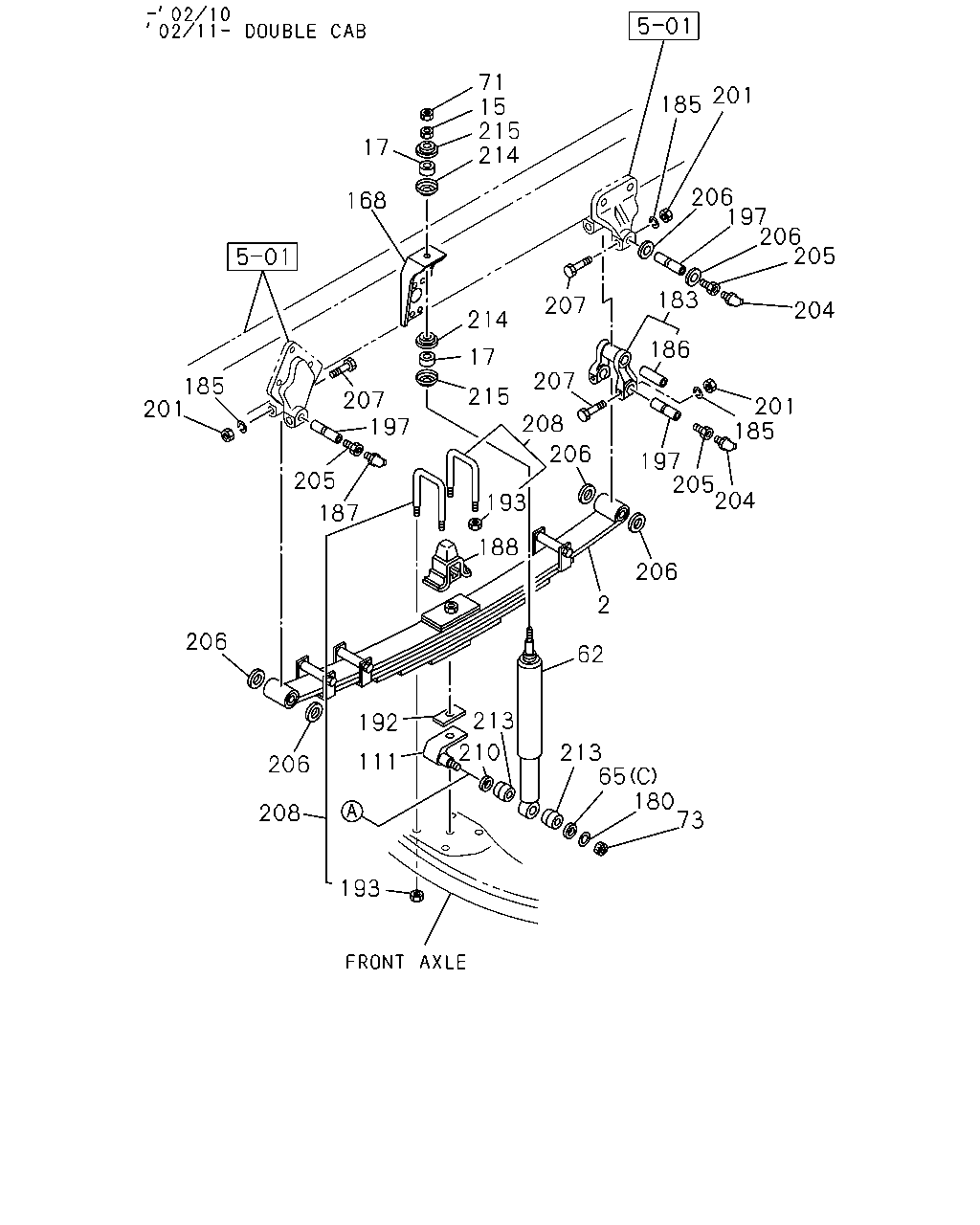

çizim 100089
71 15 215 214 201 185 17 206 197 206 205 168 183 207 204 214 186 17 207 185 201 215 207 197 201 185 208 206 197 205 204 205 193 187 188 206 2 206 62 213 192 210 213 65 180 73 111 206 208 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		1-51130-792-0 02 1 0406- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-345-0 01 1 0005-0210 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		1-51130-744-0 01 1 0211- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-475-0 01 1 0005-0210 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		1-51130-743-0 01 1 0211- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-343-0 02 1 0005-0405 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> 8-LEAF 		1-51130-343-0 02 1 0406- ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 0005-0210 ● ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 0211-0910 ●
15 NUT; S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 0005-0210 ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 0211- ●
62 ABSORBER ASM; SHOCK,FRT 1-51600-415-0 02 1 0211- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 0005-0210 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 0211- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0211- ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0211- ●
65 WASHER; S/ABS
(C) ID=23 		1-51631-019-0 02 1 0005-0210 ● ●
65 WASHER; S/ABS
(C) ID=23 		1-51631-019-0 02 1 0211- ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 0211-0512 ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601- ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 0005-0210 ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 0211-0910 ●
71 NUT; LK,S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0211-0512 ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M16 		9-99110-516-0 02 1 0005-0206 ● ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 0207-0210 ● ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 0211-0512 ●
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0601- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-721-1 01 1 0005-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98153-482-0 01 1 1005- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-720-1 01 1 0005-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98153-481-0 01 1 1005- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0211-0405 ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6200MM(62W) 		1-51681-616-0 02 1 0406- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0005-0210 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0211- ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0211-0605 ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606- ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 0005-0210 ● ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 0211-0605 ●
180 WASHER; PL,PIN
ID=17 OD=30 		0-91610-516-0 02 1 0606- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0005- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0005-0603 ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0005-0902 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0005- ● ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 0005- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0005-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 0005- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0005-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0210 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 02 1 0211-0512 ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0005- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0005- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0005-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-163-4 04 1 0211- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 0005-0210 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 0211-1206 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1207- ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 0005-0210 ● ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 0211- ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 0005-0210 ● ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 0211- ●
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 0005-0210 ● ●
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 0211- ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 0005-0210 ● ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 0211- ●

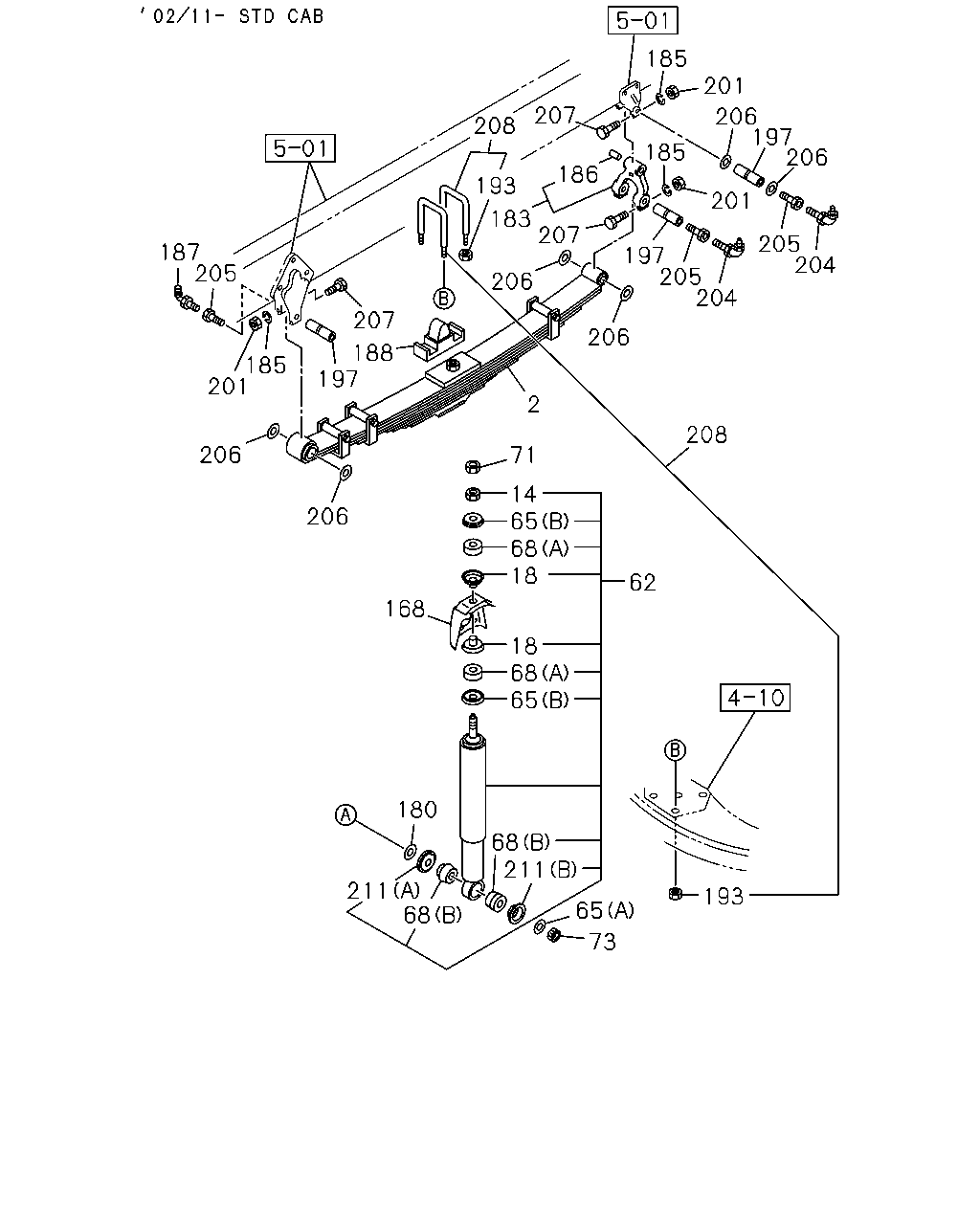

çizim 100092
185 201 207 206 197 206 208 185 186 193 201 183 207 205 204 197 205 204 187 205 206 207 206 188 197 185 201 2 208 206 71 14 65 68 18 206 62 168 18 68 65 180 68 211 211 68 193 65 73
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		1-51130-792-0 02 1 0406- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-345-0 01 1 0005-0210 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		1-51130-744-0 01 1 0211- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-475-0 01 1 0005-0210 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		1-51130-743-0 01 1 0211- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-343-0 02 1 0005-0405 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> 8-LEAF 		1-51130-343-0 02 1 0406- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0211- ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0211- ●
62 ABSORBER ASM; SHOCK,FRT 1-51600-415-0 02 1 0211- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 0005-0210 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 0211- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0211- ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0211- ●
65 WASHER; S/ABS
(C) ID=23 		1-51631-019-0 02 1 0005-0210 ● ●
65 WASHER; S/ABS
(C) ID=23 		1-51631-019-0 02 1 0211- ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0211- ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0211- ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 0211-0512 ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601- ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 0005-0210 ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 0211-0910 ●
71 NUT; LK,S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0211-0512 ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M16 		9-99110-516-0 02 1 0005-0206 ● ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 0207-0210 ● ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 0211-0512 ●
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0601- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0211-0405 ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6200MM(62W) 		1-51681-616-0 02 1 0406- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0005-0210 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0211- ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0211-0605 ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606- ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 0005-0210 ● ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 0211-0605 ●
180 WASHER; PL,PIN
ID=17 OD=30 		0-91610-516-0 02 1 0606- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0005- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0005-0603 ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0005-0902 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0005- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0005-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 0005- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0005-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0210 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 02 1 0211-0512 ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0005- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0005- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0005-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-163-4 04 1 0211- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 0005-0210 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 0211-1206 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1207- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0211- ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0211- ●

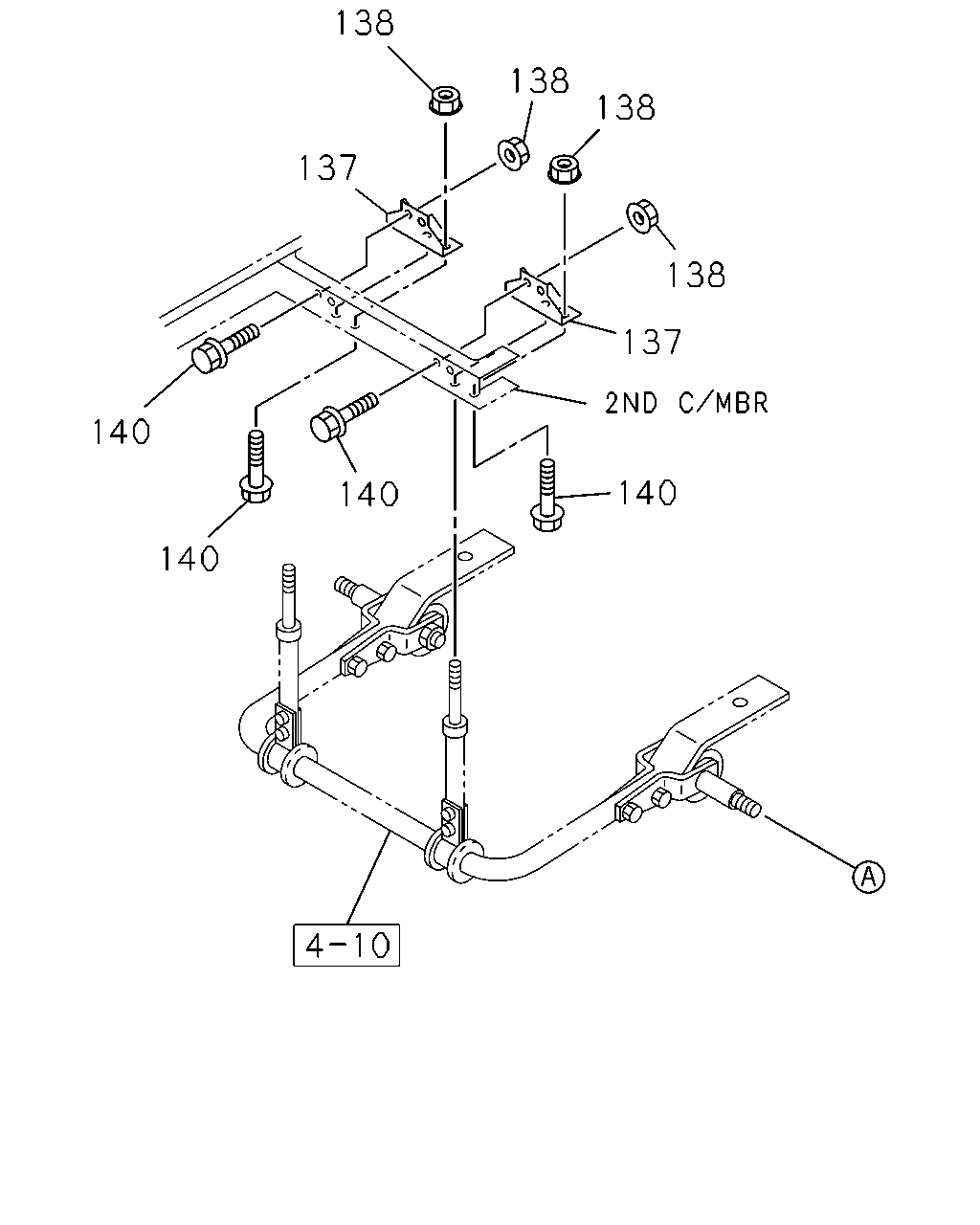

çizim 100460
138 138 138 137 138 137 140 140 140 140
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME 1-51781-046-3 02 1 0005- ●
138 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 0005-0602 ●
138 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0603- ●
140 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 0005-0512 ●
140 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 08 1 0601- ●
