51135 - TBR-WAGON(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#95749) — 14 parça
◀

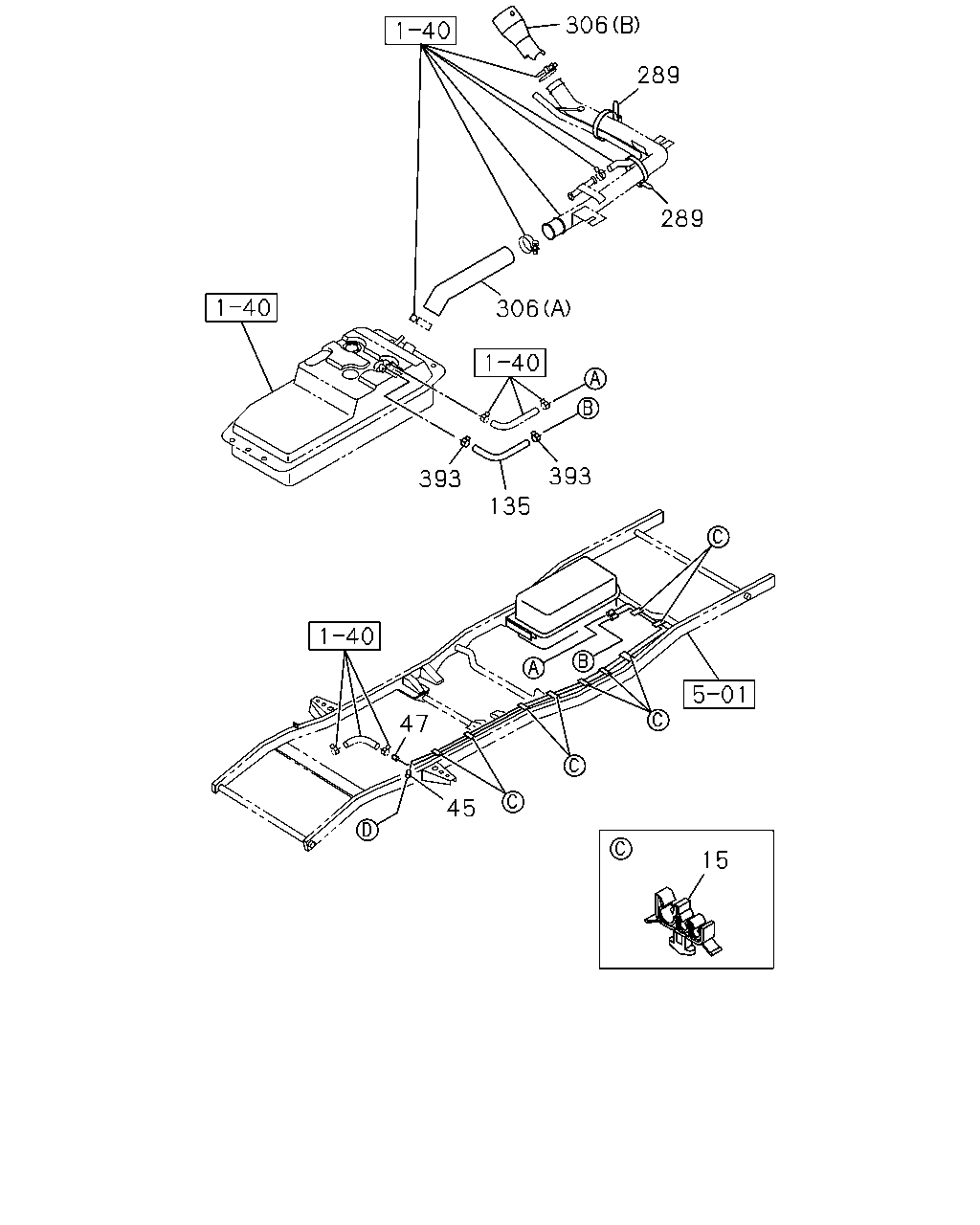

[141A] NO.1 (10 parça)
[141A] NO.2 (4 parça)
▶
289
289
306
393
135
393
47
45
15
306
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CLIP; FUEL PIPE
8-97245-523-0
09
1
0612-
45
PIPE; FUEL,DELIVERY
IDN
8-97562-665-0
01
1
0612-
47
PIPE; FUEL,RETURN
IDN
8-97562-666-0
01
1
0612-
135
HOSE; FUEL TANK TO FUEL PIPE
L=290 SERVICED BY L=3000
0-01262-300-0
01
1
0612-
289
CLIP; BAND,HOSE
L=250 IDN
5-09707-030-1
01
1
0612-
289
CLIP; BAND,HOSE
L=250 IDN
5-09707-030-1
02
1
0612-
306
HOSE; FUEL,FILTER
(B) IDN
8-97957-514-1
01
1
0612-
306
HOSE; FUEL,FILTER
CAB UP<W60> (A) IDN
8-97560-959-0
01
1
0612-
306
HOSE; FUEL,FILTER
EXC. CAB UP<W60> (A) IDN
8-97560-958-0
01
1
0612-
393
CLIP; HOSE,DELIVERY
ID=19
8-97240-196-0
02
1
0612-
148
24
82
82
82
82
82
147
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CLIP; FUEL HOSE
ID=18 & 18
8-94323-068-0
02
1
0612-
82
CLIP; FUEL HOSE
ID=19
8-97240-196-0
04
1
0612-
147
CLIP; FUEL PIPE TO HOSE
ID=13.2 & 11.5
8-97230-081-0
02
1
0612-
148
CLIP; HOSE,FUEL
ID=20.2 & 6
8-94472-577-0
02
1
0612-
