51135 - TBR-WAGON(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

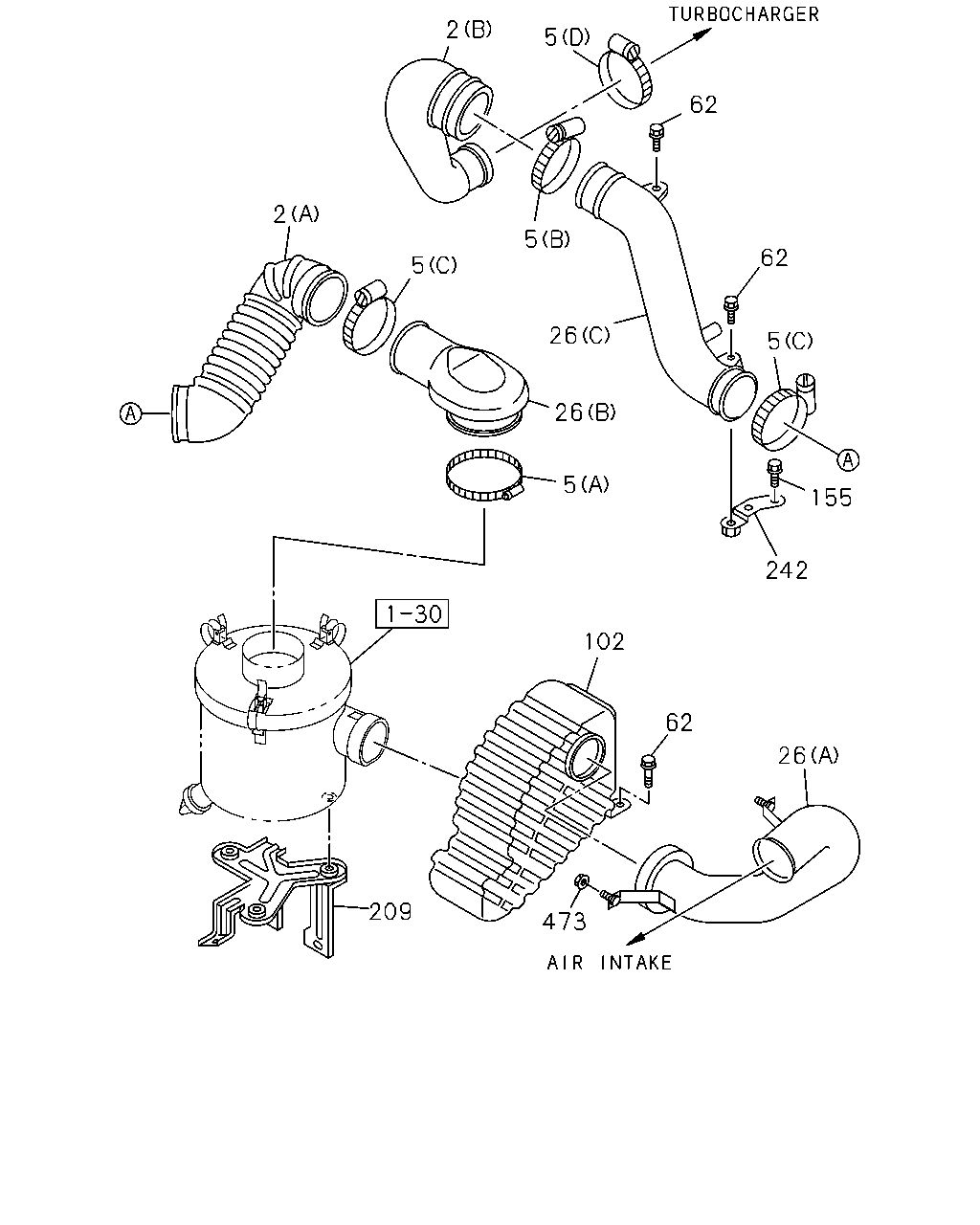

1-31 — AIR DUCT
(#95747) — 21 parça
2
5
26
26
5
5
155
242
102
62
26
473
209
62
62
5
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
(B)
8-97191-019-0
01
1
0612-
2
HOSE; ACL
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) (A)
8-97131-727-0
01
1
0612-
2
HOSE; ACL
GRADE TOURING(RBG) (A)
8-97302-249-0
01
1
0612-
5
CLIP; AIR DUCT
(A) ID=77-95
1-09707-198-0
01
1
0612-0810
5
CLIP; AIR DUCT
(A) ID=75-95
8-98133-357-0
01
1
0811-
5
CLIP; AIR DUCT
(B) ID=68-85
1-09707-202-0
01
1
0612-0810
5
CLIP; AIR DUCT
(B) ID=65-85
8-98133-350-0
01
1
0811-
5
CLIP; AIR DUCT
(C) ID=58-76
1-09707-203-0
02
1
0612-0811
5
CLIP; AIR DUCT
(C) ID=55-75
8-98133-349-0
02
1
0812-
5
CLIP; AIR DUCT
(D) ID=50-65
1-09707-204-0
01
1
0612-0810
5
CLIP; AIR DUCT
(D) ID=45-65
8-98133-348-0
01
1
0811-
26
DUCT; AIR INT
(C)
8-97128-956-2
01
1
0612-
26
DUCT; AIR INT
(A)
8-97190-988-1
01
1
0612-
26
DUCT; AIR INT
(B) THA
8-97912-690-1
01
1
0612-
62
BOLT; AIR INT DUCT
M8X16 FLANGE
0-28050-816-0
01
1
0612-
62
BOLT; AIR INT DUCT
M8X16 FLANGE
0-28050-816-0
02
1
0612-
102
RESONATOR; AIR INT
8-97180-527-0
01
1
0612-
155
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0612-
209
BRACKET; ACL
8-97190-987-0
01
1
0612-
242
BRACKET; AIR DUCT
8-94387-686-1
01
1
0612-
473
NUT; DUCT
M6 FLANGE
0-91180-106-0
02
1
0612-
