51135 - TBR-WAGON(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

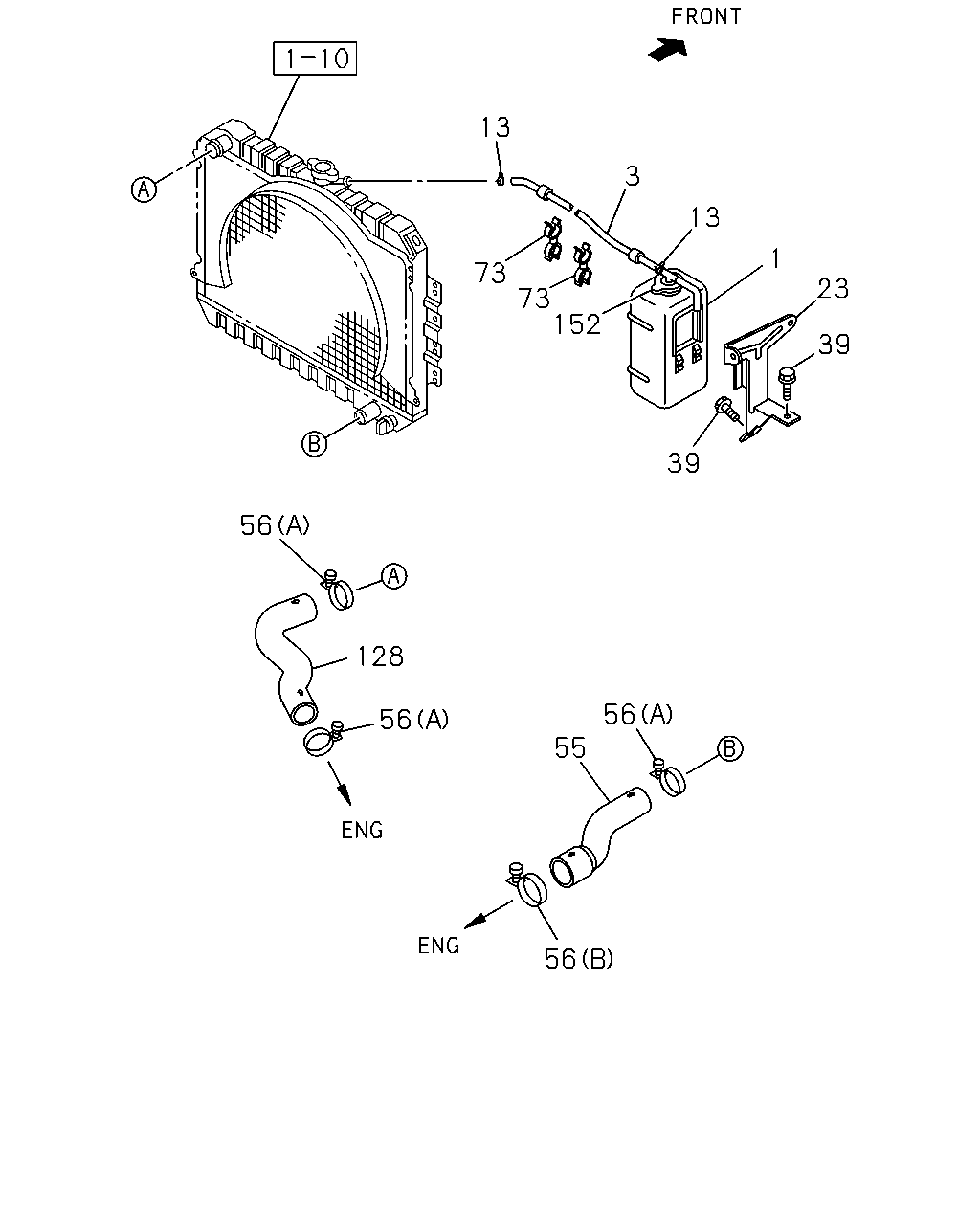

1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#95745) — 13 parça
13
3
13
1
23
39
39
152
73
73
56
128
56
55
56
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
IDN
8-97956-340-4
01
1
0612-
3
HOSE; SURGE TANK
IDN
8-97957-604-2
01
1
0612-
13
CLIP; HOSE,SURGE TANK
IDN
8-97957-610-0
02
1
0612-
23
BRACKET; RESERVE TANK
IDN
8-97956-341-3
01
1
0612-
39
BOLT; BRKT FIX
M8X16 FLANGE
0-28450-816-0
02
1
0612-
55
HOSE; WATER,RAD OUTLET
CAB UP<W60> IDN
8-97302-169-1
01
1
0612-
55
HOSE; WATER,RAD OUTLET
EXC. CAB UP<W60> IDN
8-97177-161-0
01
1
0612-
56
CLIP; WATER HOSE,RAD
(A) ID=42 IDN
8-97209-203-0
03
1
0612-
56
CLIP; WATER HOSE,RAD
(B) ID=48 IDN
9-09915-512-1
01
1
0612-
73
CLIP; RUBBER HOSE
ID=12 & 16.5
8-94400-865-0
01
1
0612-
128
HOSE; WATER,RAD INL
CAB UP<W60> IDN
8-97188-604-2
01
1
0612-
128
HOSE; WATER,RAD INL
EXC. CAB UP<W60> IDN
8-97560-714-0
01
1
0612-
152
CAP ASM; SURGE TANK
IDN
8-97957-609-0
01
1
0612-
