51135 - TBR-WAGON(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶

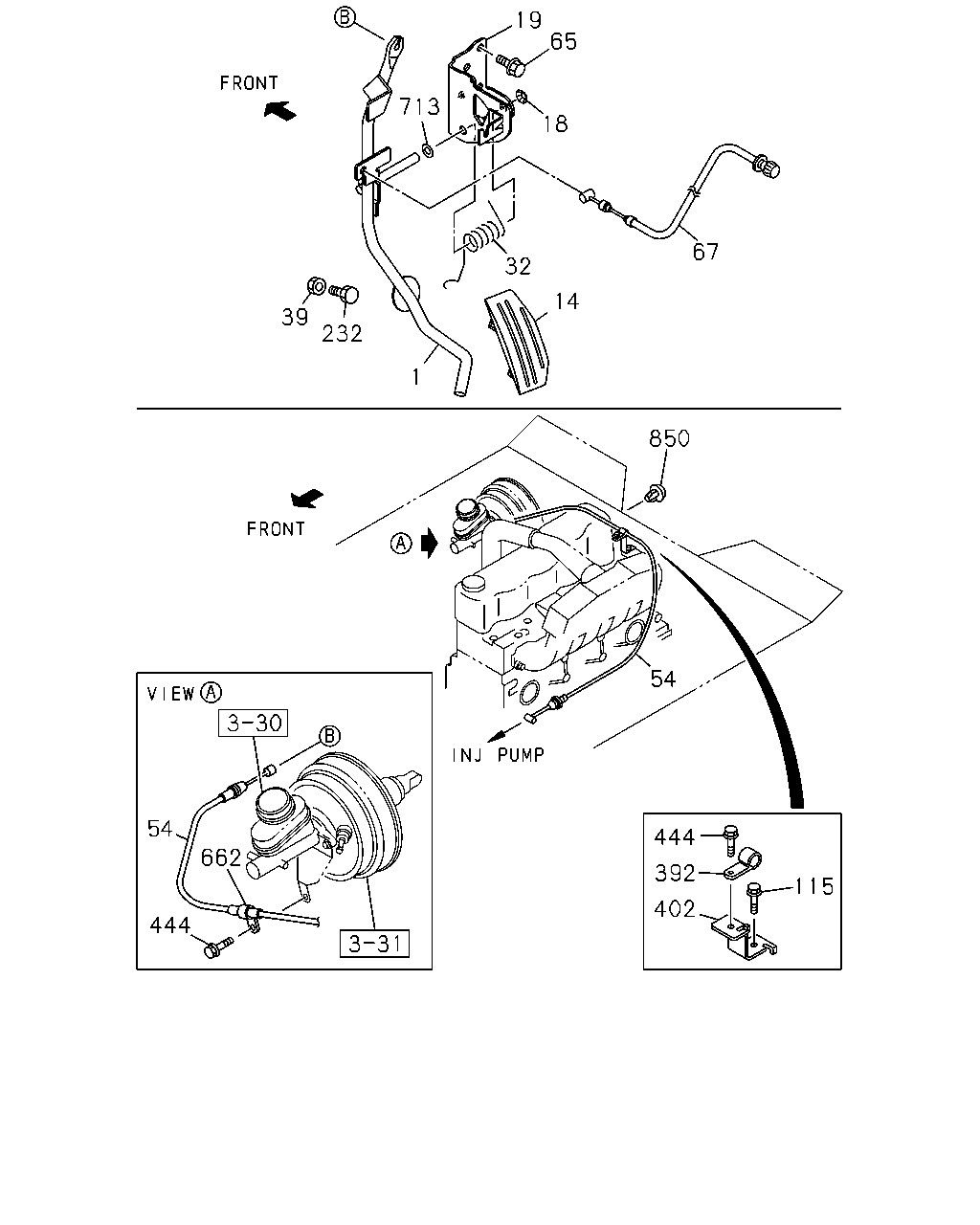

1-01 — ACCELERATOR PEDAL AND CONTROL
(#95743) — 17 parça
713
19
65
18
32
14
67
1
232
39
850
54
444
392
402
115
444
662
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; PEDAL SIDE
8-97027-101-1
01
1
0612-
14
PAD; PEDAL,ACCEL
8-94473-376-1
01
1
0612-
18
NUT; JOINT LK
D=17.5
8-94368-617-0
01
1
0612-
19
BRACKET; ACCEL PEDAL
8-97201-295-0
01
1
0612-
32
SPRING; RETURN,ACCEL PEDAL
8-97201-307-0
01
1
0612-
39
NUT; ACCEL PEDAL STOPPER
M6
0-91110-506-0
01
1
0612-
54
CABLE; ENG CONT
IDN
8-98019-800-0
01
1
0612-
65
BOLT
M6X10 FLANGE IDN
0-28050-610-0
02
1
0612-
67
CABLE ASM; IDLE CONT
IDN
8-97957-906-0
01
1
0612-
115
BOLT; INL MANIF TO BRKT
M8X20 FLANGE IDN
0-28650-820-0
01
1
0612-
232
BOLT; STOPPER,ACCEL PEDAL
M6X40
0-20800-640-0
01
1
0612-
392
CLIP; ACCEL CONT CABLE
ID=11 L=32
0-95235-065-0
01
1
0612-
402
BRACKET; CABLE CLIP
IDN
8-97353-794-1
01
1
0612-
444
BOLT; CABLE CLIP
M8X20 FLANGE IDN
0-28650-820-0
02
1
0612-
662
CLIP; ACCEL CONT CABLE
ID=11 L=32
0-95235-065-0
01
1
0612-
713
WASHER; PL
ID=8.4 OD=16
0-91610-508-0
01
1
0612-
850
PLUG; HOLE
8-97801-635-1
01
1
0612-
