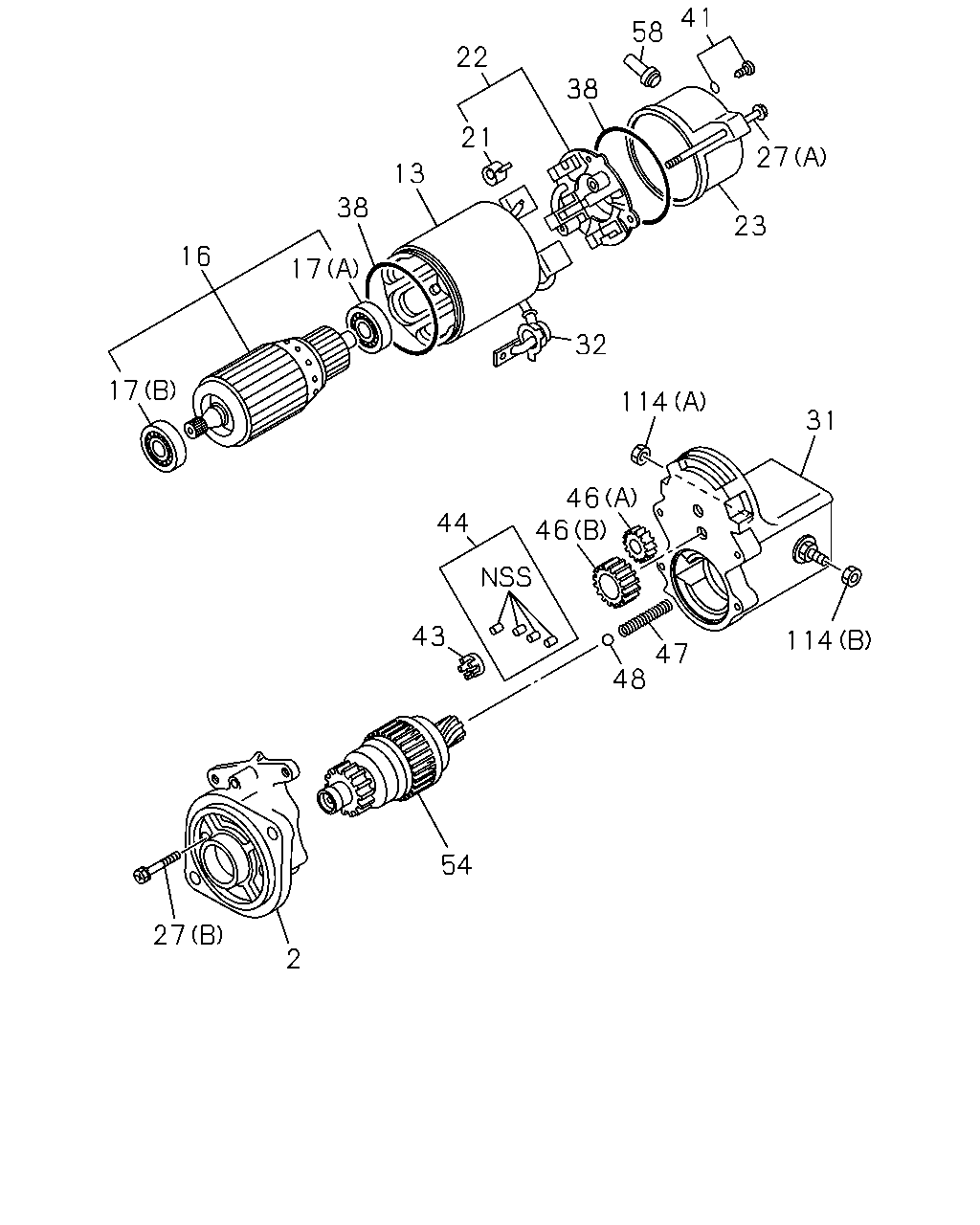

0-65 — STARTER (#95736) — 24 parça

114 31 114 23 27 41 58 38 22 21 13 38 17 16 17 44 32 46 46 47 48 43 54 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER IDN ASM PART: A = 8-97957-512-0	8-97941-441-0	01	1	-
13	YOKE; STARTER IDN ASM PART: A = 8-97957-512-0	8-97941-438-0	01	1	-
16	ARMATURE; STARTER IDN ASM PART: A = 8-97957-512-0	8-97941-439-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), IDN ASM PART: A = 8-97957-512-0	8-97941-448-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), IDN ASM PART: A = 8-97957-512-0	8-97941-449-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER IDN ASM PART: A = 8-97957-512-0	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER IDN ASM PART: A = 8-97957-512-0	8-97941-443-0	01	1	-
23	COVER; RR COVER STARTER IDN ASM PART: A = 8-97957-512-0	8-97941-444-0	01	1	-
27	BOLT; THROUGH,STARTER (A), IDN ASM PART: A = 8-97957-512-0	8-97941-451-0	02	1	-
27	BOLT; THROUGH,STARTER (B), IDN ASM PART: A = 8-97957-512-0	8-97941-454-0	02	1	-
31	SWITCH; ENGAGE STARTER IDN ASM PART: A = 8-97957-512-0	8-94941-442-0	01	1	-
32	COVER; RUBBER,STARTER IDN ASM PART: A = 8-97957-512-0	5-81119-029-0	01	1	-
38	GASKET; RR COVER,STARTER IDN ASM PART: A = 8-97957-512-0	8-97941-450-0	02	1	-
41	SCREW; RR COVER,STARTER IDN ASM PART: A = 8-97957-512-0	8-97941-452-0	02	1	-
43	RETAINER; PINION STARTER IDN ASM PART: A = 8-97957-512-0	8-94377-246-0	01	1	-
44	ROLLER; PINION STARTER IDN ASM PART: A = 8-97957-512-0	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER (A), IDN ASM PART: A = 8-97957-512-0	8-97142-904-0	01	1	-
46	GEAR; CLU STARTER (B), IDN ASM PART: A = 8-97957-512-0	8-97941-445-0	01	1	-
47	SPRING; PINION STARTER IDN ASM PART: A = 8-97957-512-0	8-97941-447-0	01	1	-
48	BALL; PINION,STARTER IDN ASM PART: A = 8-97957-512-0	8-97941-446-0	01	1	-
54	CLUTCH; PINION,STARTER IDN ASM PART: A = 8-97957-512-0	8-97941-440-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER IDN ASM PART: A = 8-97957-512-0	8-97041-421-0	01	1	-
114	NUT; TERMINAL (A), IDN ASM PART: A = 8-97957-512-0	8-94377-238-0	01	1	-
114	NUT; TERMINAL (B), IDN ASM PART: A = 8-97957-512-0	8-97941-453-0	01	1	-
