Isuzu WW
▶
AUV
▶
TBR
▶
51135 - TBR-WAGON(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶

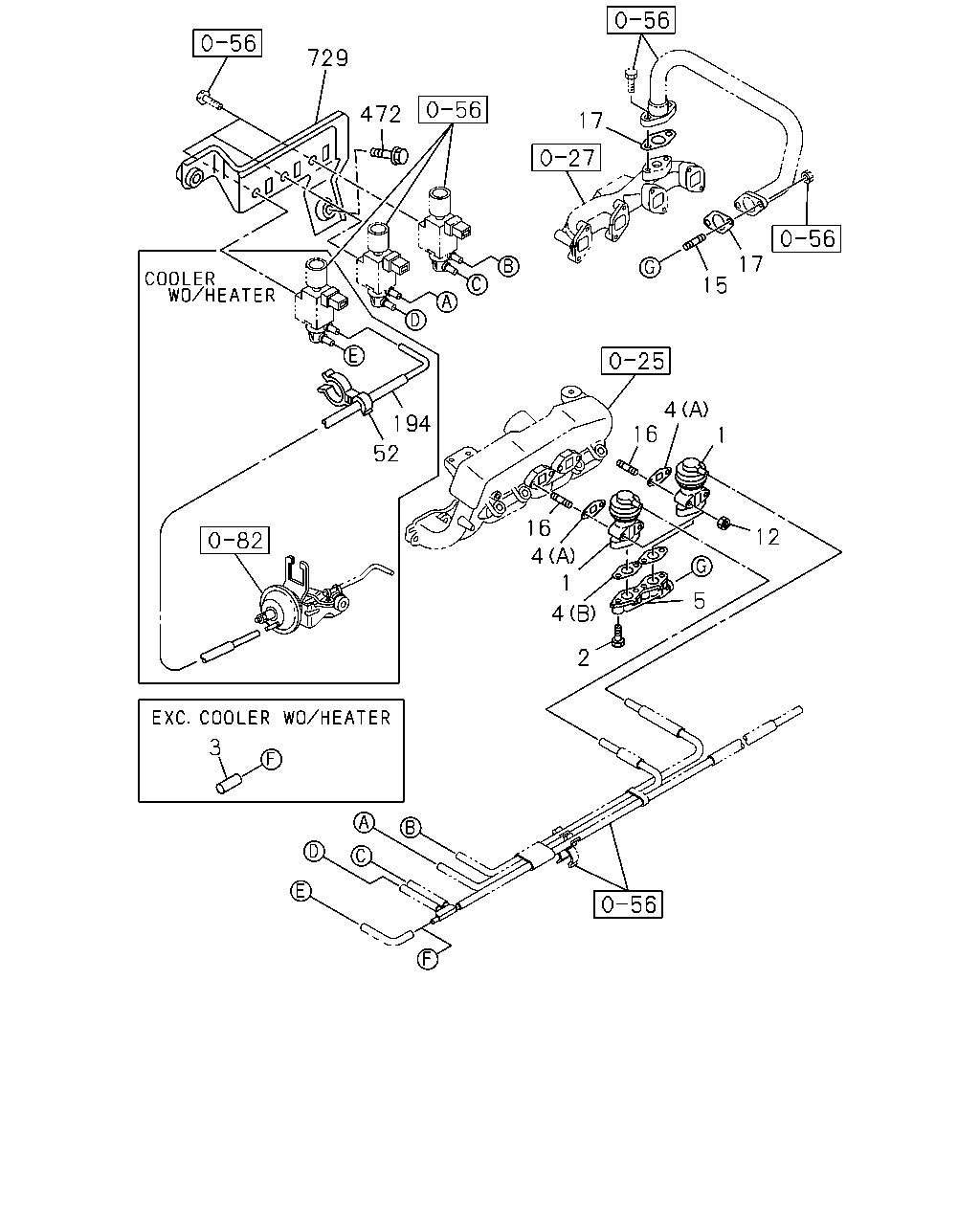

0-57 — EMISSION PIPING
(#95733) — 14 parça
3
2
4
1
4
16
5
12
1
16
4
15
17
17
472
729
194
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; EGR
8-97132-802-5
02
1
0612-
2
BOLT; EGR VLV
M8X40 FLANGE
0-28050-840-0
04
1
0612-
3
CAP; RUBBER
EXC. COOLER WO/HEATER(YL1) OD=7
8-94206-392-0
01
1
0612-
4
GASKET; EGR VLV
(A)
8-94334-338-1
02
1
0612-
4
GASKET; EGR VLV
(B)
8-94379-754-0
01
1
0612-
5
ADAPTER ASM
8-98025-558-0
01
1
0612-
12
NUT; EGR VLV
M8 FLANGE IDN
0-91180-208-0
04
1
0612-
15
STUD; EGR PIPE
M8X25 L=37
0-41010-825-0
02
1
0612-
16
STUD; EGR VLV
M8X49 L=63
8-97019-478-0
04
1
0612-
17
GASKET; EGR PIPE
8-97324-052-0
02
1
0612-
52
CLIP; VSV HOSE
COOLER WO/HEATER(YL1) ID=16.5 & 7
8-97226-171-0
01
1
0612-
194
HOSE; VAC
COOLER WO/HEATER(YL1)
8-98020-908-0
01
1
0612-
472
BOLT; BRKT
M8X22 W/LK&PL WASHER IDN
8-94329-953-1
01
1
0612-
729
BRACKET; VLV,EGR
IDN
8-98020-894-0
01
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
