0-50 — OIL COOLER AND OIL FILTER (#95729) — 15 parça

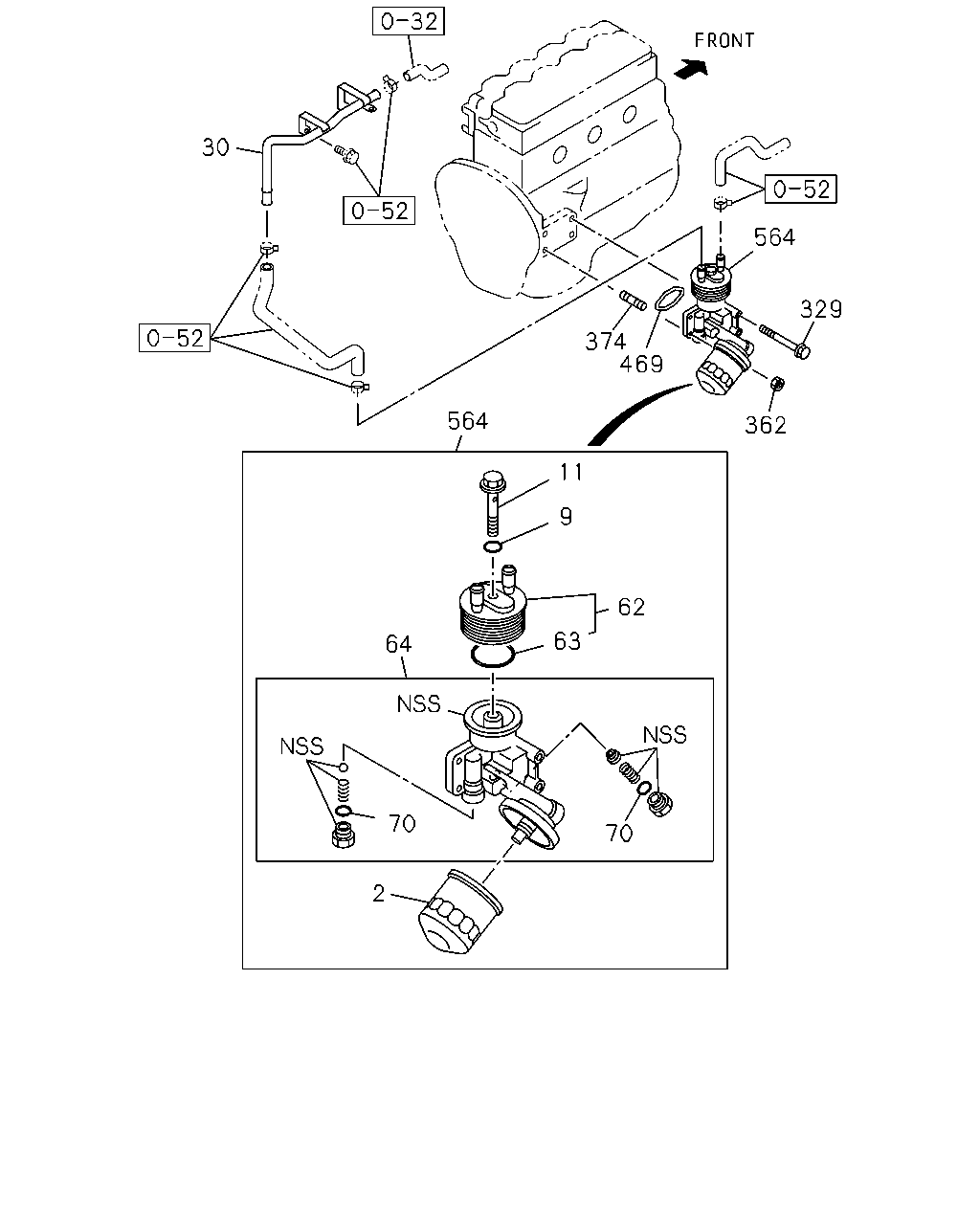

çizim 288123
362 329 564 469 374 564 11 9 62 63 64 70 70 2 30
BalonParca AdiParca NoAdetTipApplied Date
2 ELEMENT; OIL FILTER
IDN 		8-97309-927-0 01 1 0612-
9 GASKET; CENTER BOLT
IDN 		8-97288-938-0 01 1 0612-
11 BOLT; CENTER
IDN 		8-97288-935-0 01 1 0612-
30 PIPE ASM; OIL COOLER 8-97136-009-1 01 1 0612-
62 COOLER ASM; OIL
IDN 		8-97943-622-0 01 1 0612-0911
62 COOLER ASM; OIL 8-97319-556-1 01 1 0912-
63 GASKET; COOLER TO BRKT 8-94450-917-0 01 1 0612-
64 BODY; OIL FILTER & OIL COOLER
IDN 		8-97942-933-0 01 1 0612-
70 GASKET; PLUG,OIL FILTER 8-97914-706-0 02 1 0612-
329 BOLT; OIL FILTER
M8X95 FLANGE 		1-09044-075-1 02 1 0612-
362 NUT; OIL FILTER
M8 FLANGE 		0-91180-108-0 02 1 0612-
374 STUD; OIL FILTER
M8X25 L=37 		0-41010-825-0 02 1 0612-
469 GASKET; OIL COOLER TO C/BL 8-97065-983-1 01 1 0612-0706
469 GASKET; OIL COOLER TO C/BL 8-98087-965-0 01 1 0707-
564 COOLER ASM; OIL,W/O FILTER 8-97287-474-2 01 1 0612-
