◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51135 - TBR-WAGON(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#95726) — 180 parça

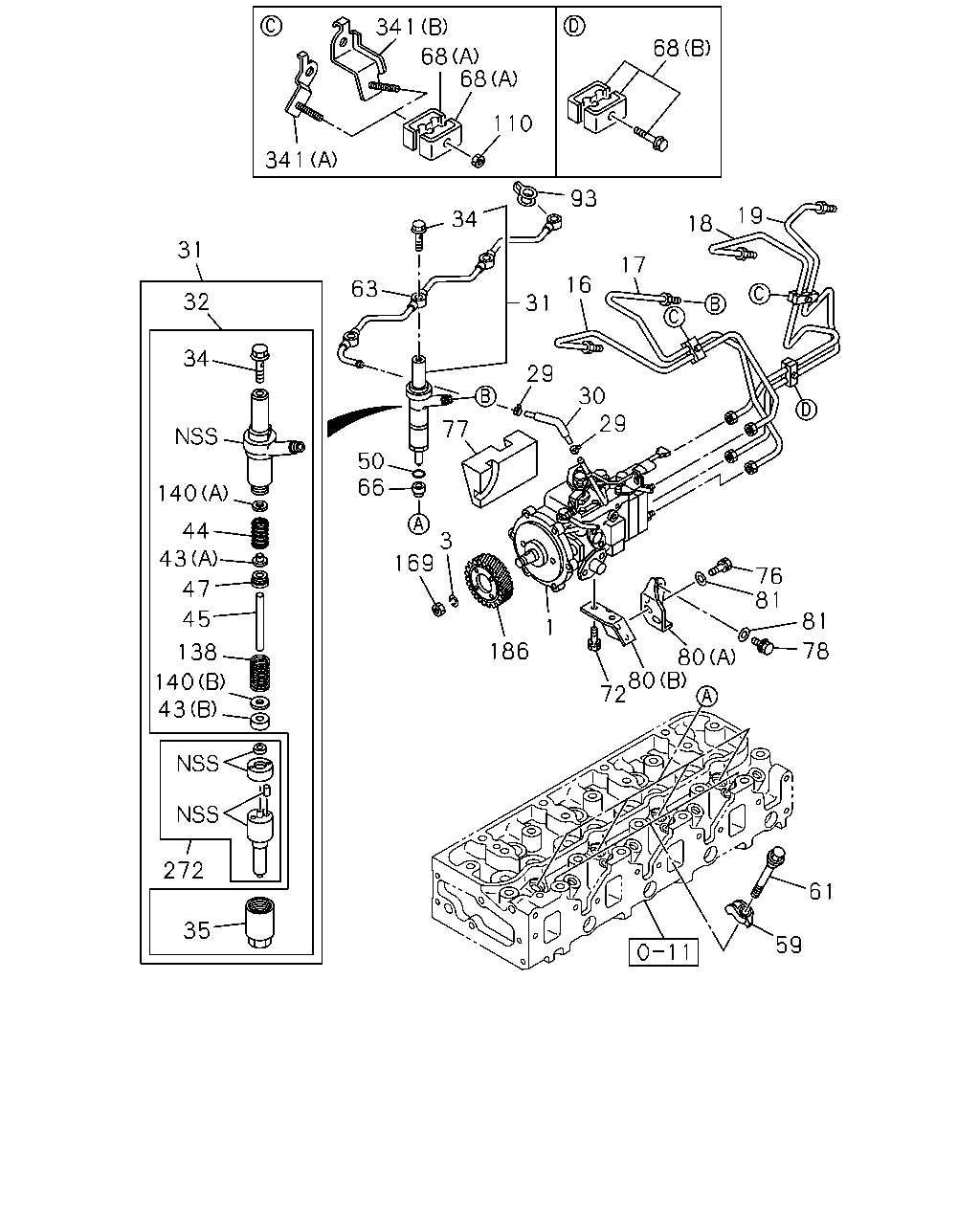

çizim 289453
31 32 34 140 44 43 47 45 138 140 43 272 35 169 186 1 72 80 80 59 61 78 81 81 76 29 30 29 31 16 17 18 19 68 110 93 63 34 68 68 341 341 77 50 66 3
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. COOLER WO/HEATER(YL1) 		8-98022-003-1 01 1 0612-
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. COOLER WO/HEATER(YL1) 		8-98022-001-1 01 1 0612-
3 WASHER; LK,INJ PUMP 8-94226-554-0 01 1 0612-
16 PIPE; INJ NO.1 8-97373-733-0 01 1 0612-
17 PIPE; INJ NO.2 8-97365-210-0 01 1 0612-
18 PIPE; INJ NO.3 8-97373-734-0 01 1 0612-
19 PIPE; INJ NO.4 8-97373-735-0 01 1 0612-
29 CLIP; HOSE
ID=11 		8-97173-219-0 02 1 0612-
30 HOSE; RUBBER,FUEL LEAK
L=320 		8-97364-773-0 01 1 0612-
31 NOZZLE ASM; INJ 8-97382-946-0 04 1 0612-
32 HOLDER ASM; NOZZLE 8-97217-835-0 04 1 0612-
34 BOLT; EYE,NOZZLE HOLDER 8-94320-307-0 04 1 0612-
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.00 		8-97223-343-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.02 		8-97223-344-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.04 		8-97223-345-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.06 		8-97223-346-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.08 		8-97223-347-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.10 		8-97223-348-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.12 		8-97223-349-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.14 		8-97223-350-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.16 		8-97223-351-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.18 		8-97223-352-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.20 		8-97223-353-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.22 		8-97223-354-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.24 		8-97223-355-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.26 		8-97223-356-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.28 		8-97223-357-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.30 		8-97223-358-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.32 		8-97223-359-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.34 		8-97223-360-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.36 		8-97223-361-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.38 		8-97223-362-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.40 		8-97223-363-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.42 		8-97223-364-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.44 		8-97223-365-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.46 		8-97223-366-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.48 		8-97223-367-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.50 		8-97223-368-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.52 		8-97223-369-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.54 		8-97223-370-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.56 		8-97223-371-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.58 		8-97223-372-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.60 		8-97223-373-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.62 		8-97223-374-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.64 		8-97223-375-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.66 		8-97223-376-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.68 		8-97223-377-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.70 		8-97223-378-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.72 		8-97223-379-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.74 		8-97223-380-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.76 		8-97223-381-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.78 		8-97223-382-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.80 		8-97223-383-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.82 		8-97223-384-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.84 		8-97223-385-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.86 		8-97223-386-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.88 		8-97223-387-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.90 		8-97223-388-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.92 		8-97223-389-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.94 		8-97223-390-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.96 		8-97223-391-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.98 		8-97223-392-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=3.00 		8-97223-393-0 04 1 0612-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) 		8-97361-697-0 04 1 0612-
44 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.25 		8-97355-112-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.26 		8-97355-113-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.27 		8-97355-114-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.28 		8-97355-115-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.29 		8-97355-116-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.30 		8-97355-117-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.31 		8-97355-118-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.32 		8-97355-119-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.33 		8-97355-120-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.34 		8-97355-121-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.35 		8-97355-122-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.36 		8-97355-123-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.37 		8-97355-124-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.38 		8-97355-125-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.39 		8-97355-126-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.40 		8-97355-127-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.41 		8-97355-128-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.42 		8-97355-129-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.43 		8-97355-130-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.44 		8-97355-131-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.45 		8-97355-132-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.46 		8-97355-133-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.47 		8-97355-134-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.48 		8-97355-135-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.49 		8-97355-136-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.50 		8-97355-137-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.51 		8-97355-138-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.52 		8-97355-139-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.53 		8-97355-140-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.54 		8-97355-141-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.55 		8-97355-142-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.56 		8-97355-143-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.57 		8-97355-144-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.58 		8-97355-145-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.59 		8-97355-146-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.60 		8-97355-147-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.61 		8-97355-148-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.62 		8-97355-149-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.63 		8-97355-150-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.64 		8-97355-151-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.65 		8-97355-152-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.66 		8-97355-153-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.67 		8-97355-154-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.68 		8-97355-155-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.69 		8-97355-156-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.70 		8-97355-157-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.71 		8-97355-158-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.72 		8-97355-159-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.73 		8-97355-160-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.74 		8-97355-161-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.75 		8-97355-162-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.76 		8-97355-163-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.77 		8-97355-164-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.78 		8-97355-165-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.79 		8-97355-166-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.80 		8-97355-167-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.81 		8-97355-168-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.82 		8-97355-169-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.83 		8-97355-170-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.84 		8-97355-171-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.85 		8-97355-172-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.86 		8-97355-173-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.87 		8-97355-174-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.88 		8-97355-175-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.89 		8-97355-176-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.90 		8-97355-177-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.91 		8-97355-178-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.92 		8-97355-179-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.93 		8-97355-180-0 04 1 0612-
45 ROD; PUSH,NOZZLE HOLDER
L=38.94 		8-97355-182-0 04 1 0612-
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 0612-
50 GASKET; NOZZLE HOLDER
THA 		8-97912-615-0 04 1 0612-
59 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0612-
61 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0612-
63 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0612-
66 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0612-
68 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0612-
68 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0612-
72 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER 		0-50551-020-0 02 1 0612-
76 BOLT; BRKT TO BRKT
M8X25 W/LK WASHER 		0-50540-825-0 02 1 0612-
77 RUBBER; SPACE,INJ PUMP 8-97226-808-0 01 1 0612-
78 BOLT; BRKT TO C/BL
M8X20 FLANGE IDN 		0-28650-820-0 02 1 0612-
80 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 0612-
80 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 0612-
81 WASHER; PL,BRKT TO PUMP
ID=8.4 OD=22 		0-91614-708-0 02 1 0612-
93 GASKET; LEAK OFF PIPE 8-97375-236-0 04 1 0612-
110 NUT; CLIP
M6 FLANGE 		0-91180-206-0 02 1 0612-
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 8-94174-141-0 04 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.20 		1-15349-004-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.52 		1-15349-044-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.54 		1-15349-045-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.56 		1-15349-046-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.58 		1-15349-047-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.60 		1-15349-048-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.70 		1-15349-049-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.10 		8-97116-029-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.20 		8-97116-032-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.30 		8-97116-033-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.40 		8-97116-034-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.50 		8-97116-035-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.51 		8-97116-036-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.52 		8-97116-037-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.53 		8-97116-038-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.54 		8-97116-039-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.55 		8-97116-040-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.56 		8-97116-041-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.57 		8-97116-042-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.58 		8-97116-043-0 AR 1 0612-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.59 		8-97116-044-0 AR 1 0612-
169 NUT; BRKT
M14 		8-94226-565-0 01 1 0612-
186 GEAR; INJ PUMP 8-97322-652-0 01 1 0612-
272 NOZZLE KIT; INJ 8-97362-572-0 04 1 0612-
341 BRACKET; CLIP,INJ PIPE
(A) 		8-97333-806-1 01 1 0612-
341 BRACKET; CLIP,INJ PIPE
(B) 		8-97365-211-1 01 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
