Isuzu WW
▶
AUV
▶
TBR
▶
51135 - TBR-WAGON(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

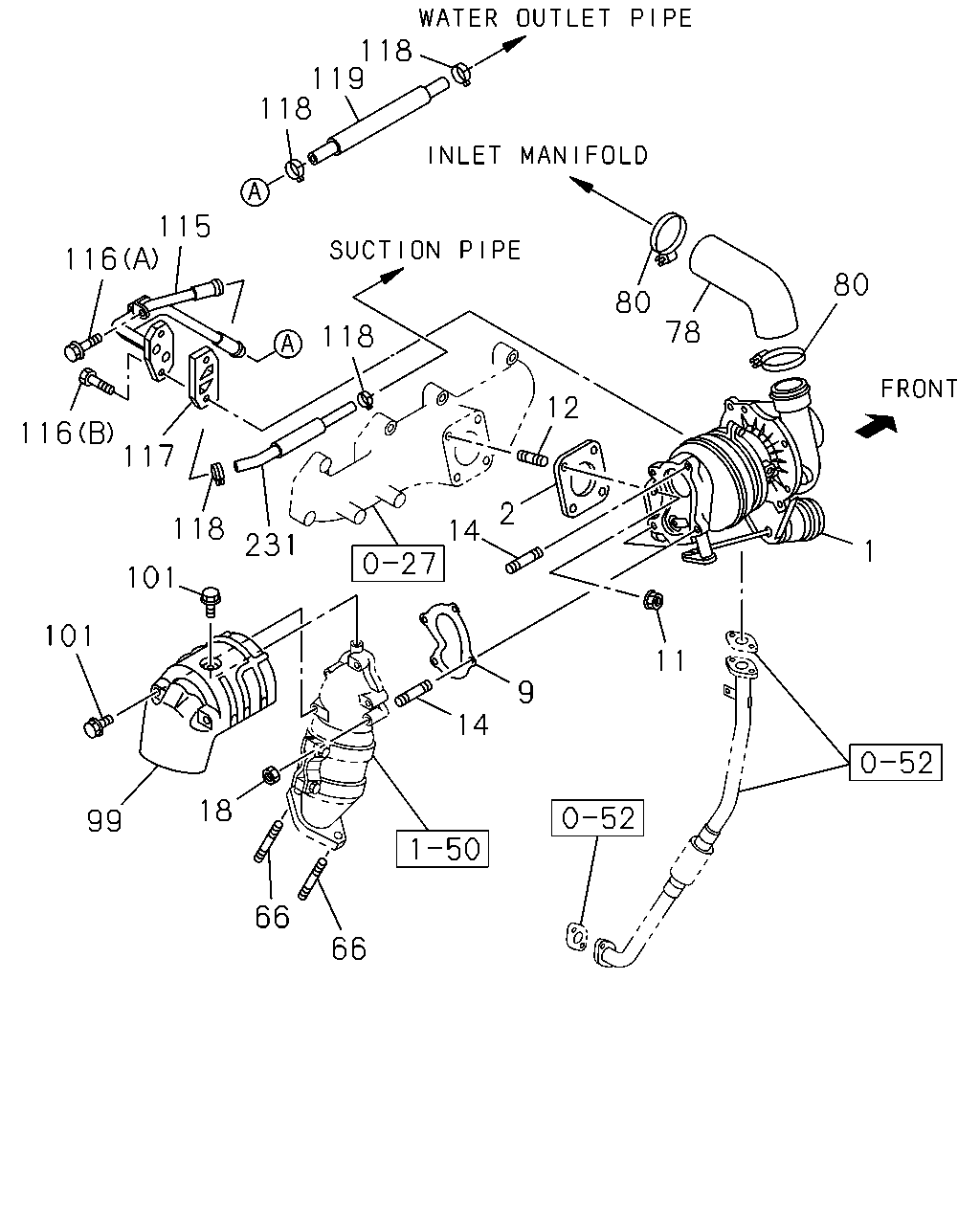

0-36 — TURBOCHARGER SYSTEM
(#95725) — 23 parça
1
11
9
14
66
66
18
99
101
101
118
231
14
2
12
78
80
80
118
119
118
115
118
116
116
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
8-97313-292-0
01
1
0612-
2
GASKET; TURBOCHARGER TO EXH MANIF
8-97315-266-0
01
1
0612-
9
GASKET; TURBOCHARGER TO EXH DUCT
8-97139-726-0
01
1
0612-
11
NUT; TURBOCHARGER
M8 FLANGE
8-97161-607-0
04
1
0612-
12
STUD; TURBOCHARGER
M8X20 L=31
8-97378-060-0
04
1
0612-
14
STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54
8-97378-067-0
04
1
0612-
18
NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
04
1
0612-
66
STUD; EXH PIPE
M10X38 L=53
5-09302-007-0
02
1
0612-
78
HOSE; INL PIPE,TURBOCHARGER
8-97096-628-3
01
1
0612-
80
CLIP; CONN HOSE,TURBOCHARGER
ID=45.5-56.5
8-97131-943-0
02
1
0612-
99
PROTECTOR; HEAT
8-97318-472-0
01
1
0612-
101
BOLT; HEAT PROTECTOR
M6X12 FLANGE
0-28050-612-0
03
1
0612-
115
PIPE; WATER,TURBOCHARGER OUT
8-97149-127-1
01
1
0612-1010
115
PIPE; WATER,TURBOCHARGER OUT
8-98169-767-0
01
1
1011-1203
115
PIPE; WATER,TURBOCHARGER OUT
THA
8-97912-777-1
01
1
1204-
116
BOLT; WATER PIPE
(A) M6X12 FLANGE
0-28050-612-0
01
1
0612-
116
BOLT; WATER PIPE
(B) M6X20 FLANGE IDN
0-28650-620-0
02
1
0612-1010
116
BOLT; WATER PIPE
(B) M6X16 FLANGE IDN
0-28050-616-0
02
1
1011-1203
116
BOLT; WATER PIPE
(B) M6X20 FLANGE
0-28050-620-0
02
1
1204-
117
GASKET; WATER PIPE
8-94321-135-1
01
1
0612-
118
CLIP; WATER HOSE
ID=12.8
8-94367-943-0
04
1
0612-
119
HOSE; WATER,TURBOCHARGER
8-97260-753-0
01
1
0612-
231
HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR
8-94325-255-0
01
1
0612-
