Isuzu WW
▶
AUV
▶
TBR
▶
51135 - TBR-WAGON(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

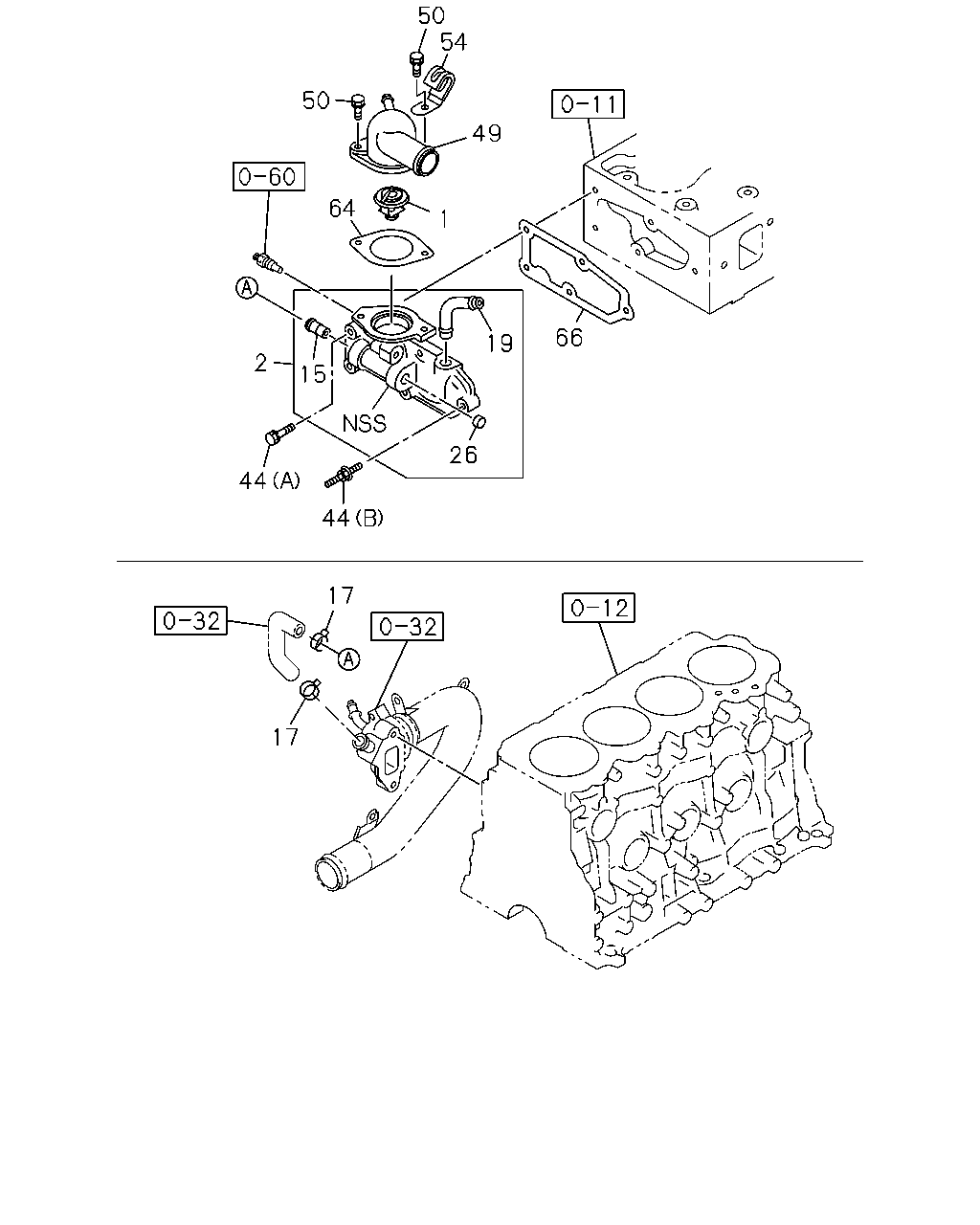

0-31 — THERMOSTAT AND HOUSING
(#95722) — 14 parça
50
50
54
49
66
19
1
64
2
15
26
44
44
17
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
82?C
8-97361-770-0
01
1
0612-
2
HOUSING; THERMOSTAT
THA
8-97916-700-0
01
1
0612-
15
PIPE; BYPASS
THA
8-97910-083-0
01
1
0612-
17
CLIP; WATER HOSE
ID=20.8
8-94125-862-1
02
1
0612-
19
PIPE; HSG TO HTR
THA
8-97910-082-0
01
1
0612-
26
CUP; SEALING,VLV,VENTILATION
OD=18
5-11219-008-0
02
1
0612-
44
BOLT; HSG TO HD
(A) M8X30 W/LK WASHER
0-50540-830-0
04
1
0612-
44
BOLT; HSG TO HD
(B) M8X28,M8X34 L=69
8-94479-011-1
01
1
0612-
49
PIPE; WATER OUTLET
THA
8-97921-733-0
01
1
0612-
50
BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER
0-50640-830-0
02
1
0612-
54
CLIP; THERMO SWITCH,OUTLET PIPE
ID=12
5-09700-331-0
01
1
0612-0801
54
CLIP; THERMO SWITCH,OUTLET PIPE
ID=12
8-97367-983-1
01
1
0802-
64
GASKET; OUTLET PIPE TO HSG
8-94365-674-2
01
1
0612-
66
GASKET; THERMOSTAT HSG
8-97216-156-0
01
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
