4-36 — POWER STEERING CONTROL; ENGINE SIDE (#9572) — 16 parça

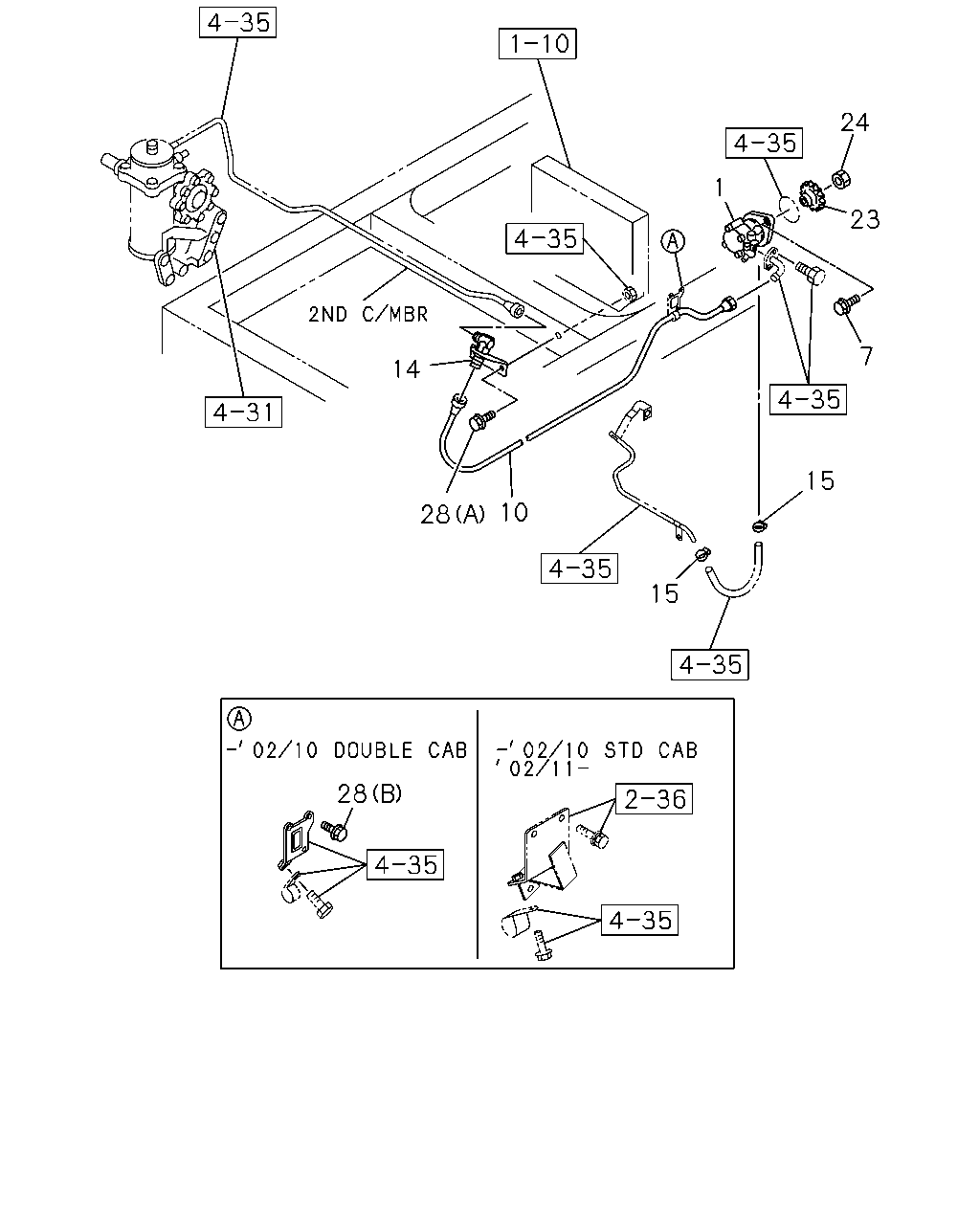

çizim 39823
24 1 23 7 14 15 10 28 15 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-548-1 01 1 0005- ● ●
7 BOLT; OIL PUMP,P/S
M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0005- ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 01 1 0005-0805 ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 01 1 0806- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-129-0 01 1 0005-0210 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=900 		1-09365-251-0 01 1 0211- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=770 		1-09364-987-1 01 1 0005-0210 ●
14 UNION; FLEX HOSE,P/S 1-47470-463-1 01 1 0005-0210 ● ●
14 UNION; FLEX HOSE,P/S 1-47470-663-0 01 1 0211- ● ●
15 CLIP; OIL PIPE SUCTION
ID=32 		1-09704-085-0 02 1 0005- ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0005- ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0005-0712 ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0801- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005-0210 ●
