51135 - TBR-WAGON(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

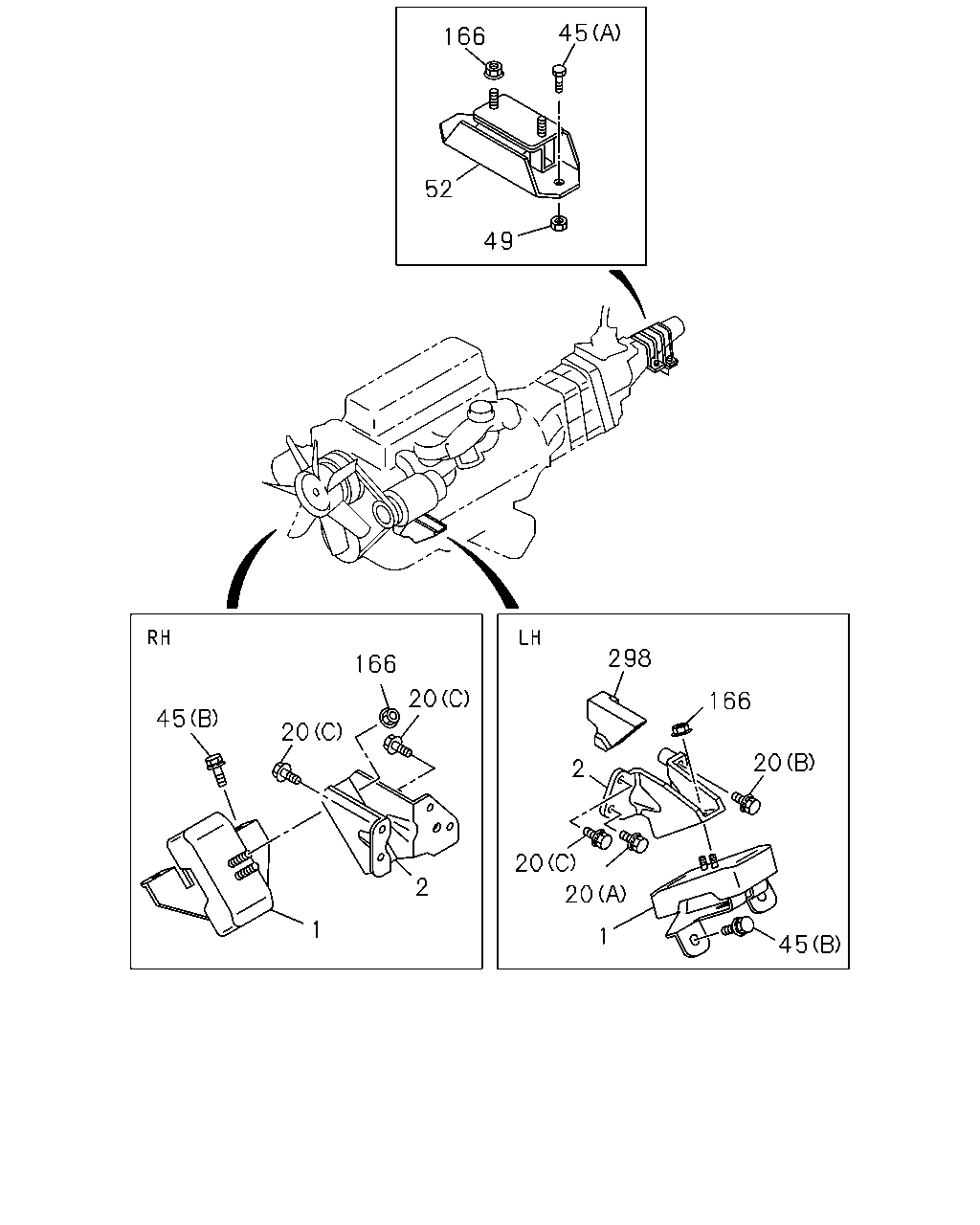

0-22 — ENGINE MOUNTING
(#95717) — 15 parça
1
1
2
20
20
2
20
20
20
45
166
298
166
45
49
52
166
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
8-97086-076-1
01
1
0612-
1
RUBBER; ENG FOOT,FRT
8-97039-189-3
01
1
0612-
2
FOOT; ENG
TRM THA
8-97910-109-0
01
1
0612-
2
FOOT; ENG
TRM THA
8-97910-108-0
01
1
0612-
20
BOLT; ENG FOOT
(C) M10X22 W/LK WASHER
0-50041-022-0
06
1
0612-0909
20
BOLT; ENG FOOT
(C) M10X22 W/LK WASHER
0-50541-022-0
06
1
0910-
20
BOLT; ENG FOOT
(B) M10X35 W/LK WASHER
0-50541-035-0
01
1
0612-
20
BOLT; ENG FOOT
(A) M14X25 W/LK WASHER
0-50541-425-0
01
1
0612-
45
BOLT; CUSHION RUBBER TO FRAME
(A) M10X30 FLANGE
0-28651-030-0
02
1
0612-
45
BOLT; CUSHION RUBBER TO FRAME
(B) M10X28 W/LK WASHER
8-97035-564-0
04
1
0612-
49
NUT; CUSHION RUBBER TO FRAME
M10 FLANGE
8-94126-973-0
02
1
0612-
52
RUBBER; CUSHION,ENG MTG,RR
8-94434-208-1
01
1
0612-
166
NUT; SUPPORT RUBBER
M10 FLANGE
0-91180-110-0
02
1
0612-
166
NUT; SUPPORT RUBBER
M10 FLANGE
0-91180-110-0
04
1
0612-
298
RUBBER; SPACE,ENG FOOT
8-97231-523-0
01
1
0612-
