Isuzu WW
▶
AUV
▶
TBR
▶
51135 - TBR-WAGON(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

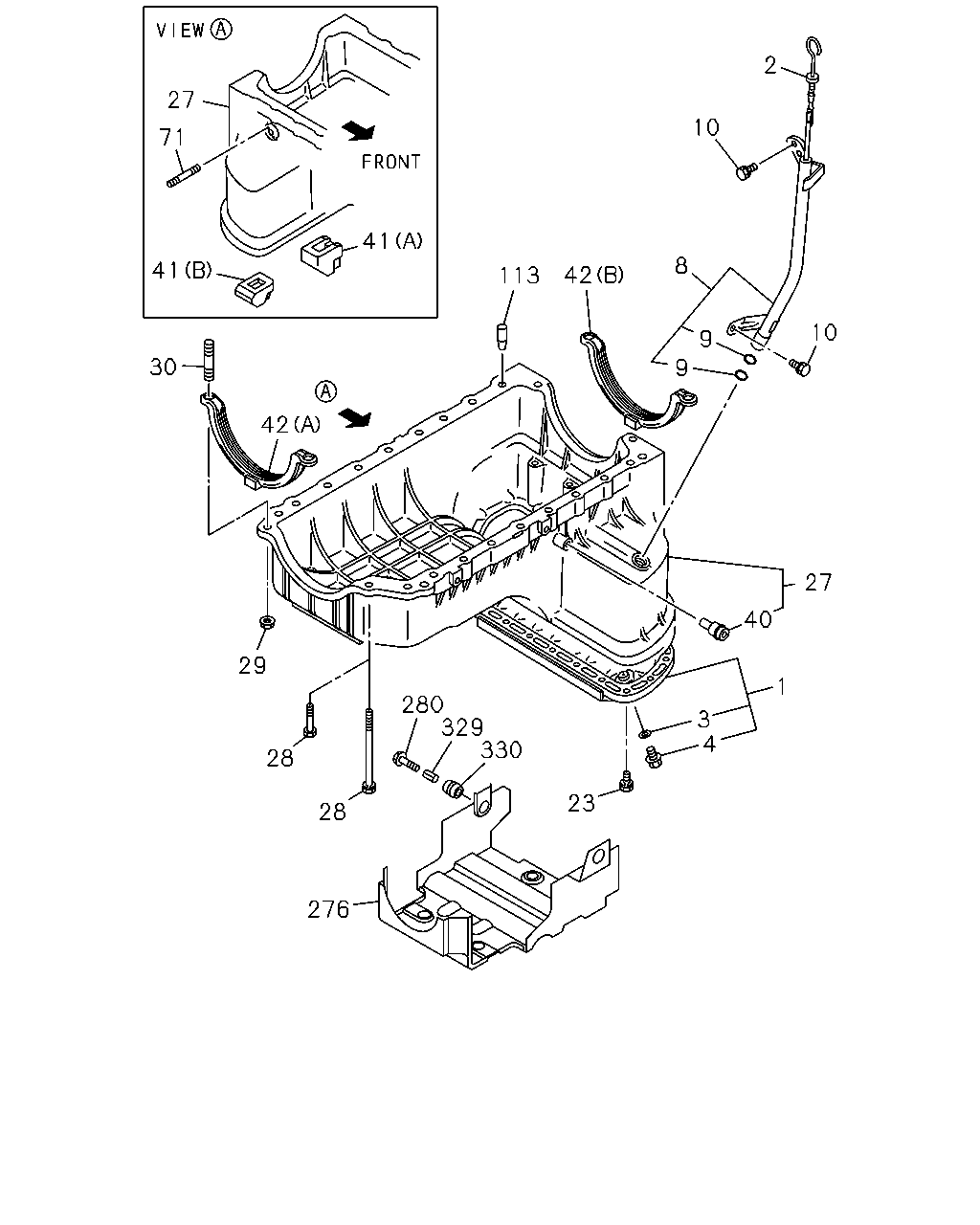

0-13 — OIL PAN AND LEVEL GAUGE
(#95713) — 26 parça
27
71
41
41
30
42
113
42
8
10
2
10
9
9
27
40
1
3
4
23
330
329
280
29
28
28
276
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-97131-905-0
01
1
0612-
2
GAUGE; OIL LEVEL
8-97085-167-0
01
1
0612-
3
GASKET; DRAIN PLUG
ID=14.2 OD=24
8-94158-328-0
01
1
0612-
4
PLUG; DRAIN,OIL
M14X14 IDN
8-94152-613-0
01
1
0612-
8
TUBE; GUIDE,OIL LEVEL GAUGE
8-97944-103-1
01
1
0612-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11
5-09623-002-0
02
1
0612-
10
BOLT; GUIDE TUBE
M8X16 FLANGE
0-28050-816-0
02
1
0612-
23
BOLT; OIL PAN
M6X13 W/PL WASHER
8-97135-141-0
17
1
0612-
27
CRANKCASE
8-97358-796-0
01
1
0612-
28
BOLT; CRANKCASE TO C/BL
M8X120 FLANGE
0-28055-812-0
01
1
0612-
28
BOLT; CRANKCASE TO C/BL
M8X32 W/LK WASHER
0-50040-832-0
19
1
0612-0909
28
BOLT; CRANKCASE TO C/BL
M8X32 W/LK WASHER
0-50540-832-0
19
1
0910-
29
NUT; CRANKCASE
M8 FLANGE
0-91180-108-0
02
1
0612-
30
STUD; CRANKCASE
M8X35 L=47
0-41010-835-0
02
1
0612-
40
NIPPLE; OIL RETURN HOSE VAC PUMP
5-11369-038-0
01
1
0612-
41
RUBBER; SPACE
(A)
8-97123-362-0
01
1
0612-
41
RUBBER; SPACE
(B)
8-97123-363-0
01
1
0612-
42
GASKET; CRANKCASE TO C/BL
(A) FRONT
8-97120-933-0
01
1
0612-
42
GASKET; CRANKCASE TO C/BL
(B) REAR
8-97123-342-0
01
1
0612-
71
STUD; OIL DRAIN PIPE
M8X18 L=30
0-41010-818-0
02
1
0612-
113
PIN; STRAIGHT
9-09878-597-0
02
1
0612-
276
COVER; CRANKCASE
8-97229-929-6
01
1
0612-
280
BOLT; COVER
M8X22 W/LK&PL WASHER IDN
8-94329-953-1
04
1
0612-
329
GUIDE; COVER,CRANKCASE
OD=13 T=9.5 IDN
8-94140-427-1
05
1
0612-1101
329
GUIDE; COVER,CRANKCASE
OD=13 T=9.5
8-98164-239-0
05
1
1102-
330
RUBBER; MTG,CRANKCASE COVER
OD=21.8
8-97325-051-0
05
1
0612-
