Isuzu WW
▶
AUV
▶
TBR
▶
51135 - TBR-WAGON(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

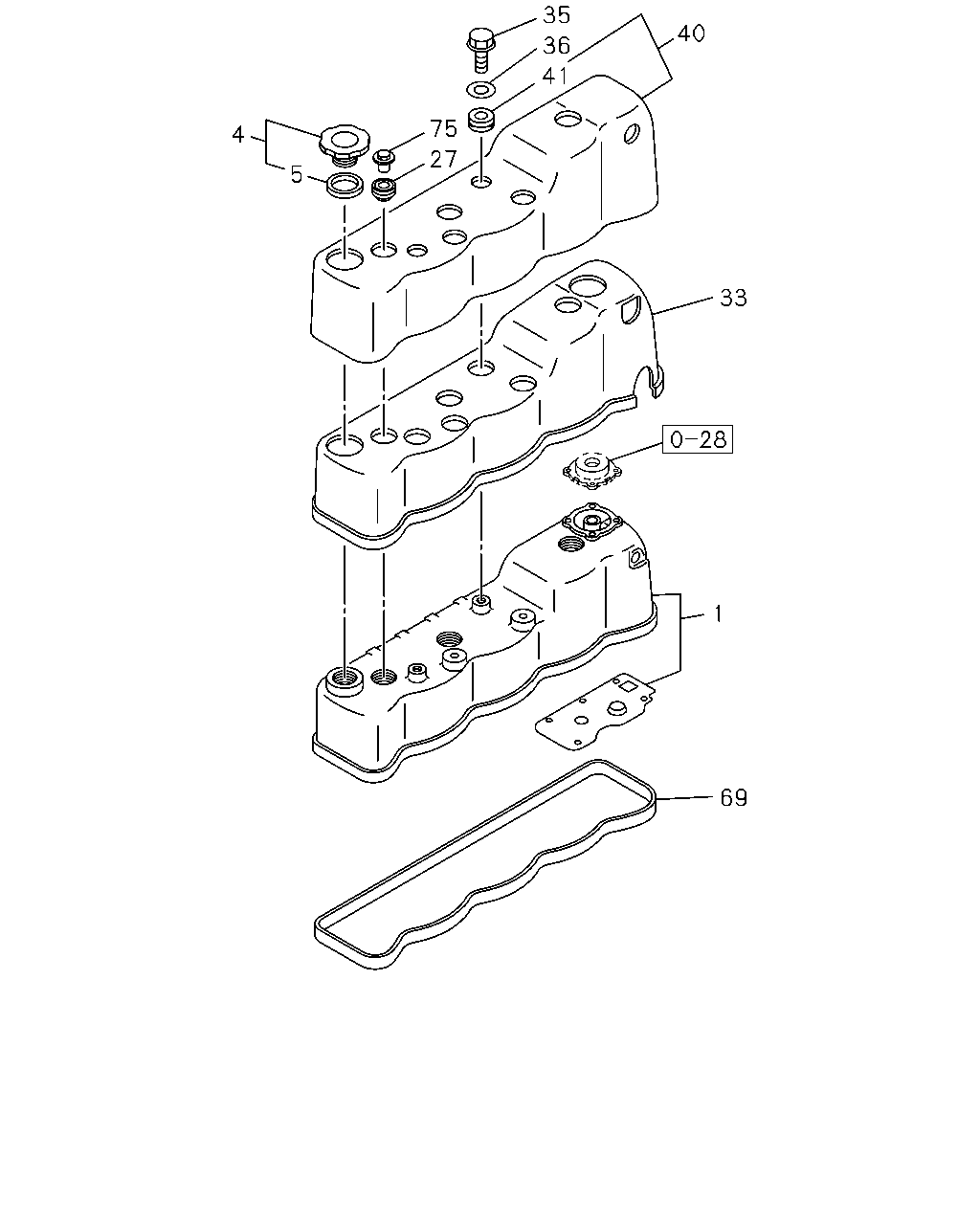

0-10 — CYLINDER HEAD COVER
(#95710) — 11 parça
4
5
27
75
41
36
35
40
33
1
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-94433-742-2
01
1
0612-
4
CAP; OIL FILLER
8-94133-207-5
01
1
0612-
5
GASKET; OIL FILLER
ID=32 OD=40
8-94123-623-1
01
1
0612-
27
GASKET; HD COVER
ID=19.5
8-97263-801-1
03
1
0612-
33
RUBBER; SPACE,CYL HD COVER
THA
8-97920-049-1
01
1
0612-
35
BOLT; NOISE SHIELD COVER
M8X12 FLANGE
0-28050-812-0
02
1
0612-
36
WASHER; PL,NOISE SHIELD COVER
ID=8.5 OD=30 T=2.6
9-09651-112-0
02
1
0612-
40
COVER
8-97043-018-0
01
1
0612-
41
GROMMET; HD COVER,OUTER
8-94256-959-0
02
1
0612-
69
GASKET; HD TO COVER
8-97349-416-1
01
1
0612-
75
NUT; CAP,HD COVER
M8 OD=19
8-94158-108-0
03
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
