4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#9571) — 70 parça

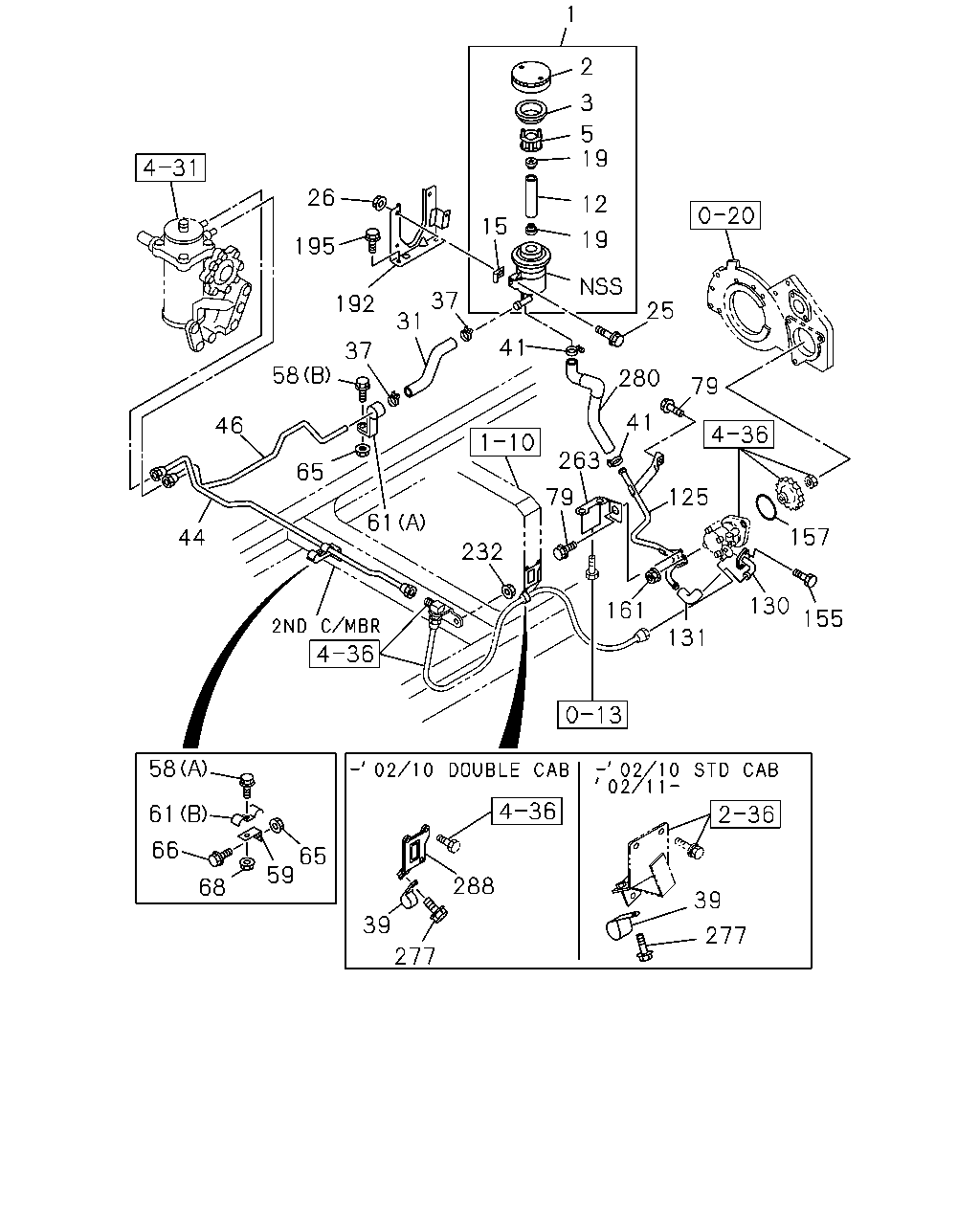

çizim 100044
1 2 3 5 19 26 12 15 19 195 37 192 25 31 41 37 58 280 79 41 46 263 65 125 79 61 157 44 232 130 161 155 131 58 61 65 59 66 288 68 39 39 277 277
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 0005-0508 ● ●
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006 ● ●
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007- ● ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0005-1006 ● ●
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007- ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0005- ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0005- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0005- ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 0005-0508 ● ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509- ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 0005- ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 0005-0210 ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-590-0 01 1 0211- ● ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0005- ● ●
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 0005- ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0005- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=1035 		1-21116-108-0 01 1 0005-0210 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=965 		1-21117-226-0 01 1 0211- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=1018 		1-21116-105-0 01 1 0005-0210 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=743 		1-21115-891-0 01 1 0005-0210 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21117-231-0 01 1 0211- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=833 		1-21115-892-0 01 1 0005-0210 ●
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ● ●
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
58 BOLT; CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0512 ● ●
58 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 0005- ● ●
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0005- ● ●
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 0005- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0210 ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0211-0512 ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0512 ● ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
125 CONNECTOR; P/S PUMP 8-94390-584-1 01 1 0005-0210 ●
125 CONNECTOR; P/S PUMP 8-94390-584-1 01 1 0211- ● ●
125 CONNECTOR; P/S PUMP 8-94391-745-0 01 1 0005-0210 ●
130 ADAPTER; P/S PUMP 8-94390-583-0 01 1 0005- ● ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0005- ● ●
155 BOLT; CONNECTOR
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0512 ● ●
155 BOLT; CONNECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 0005- ● ●
161 NUT; P/S PIPE
M10 FLANGE 		0-91150-110-0 02 1 0211-0602 ● ●
161 NUT; P/S PIPE
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
161 NUT; P/S PIPE
M10 FLANGE 		0-91150-110-0 01 1 0005-0210 ● ●
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 0005-0210 ● ●
192 BRACKET; P/S OIL TANK 1-21119-142-1 01 1 0211- ● ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0005-0210 ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0211-0406 ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 0407-0512 ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 02 1 0601- ● ●
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 0005- ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
280 HOSE; P/S OIL PUMP,INL 1-21116-695-0 01 1 0005-0210 ● ●
280 HOSE; P/S OIL PUMP,INL 1-21116-721-0 01 1 0211- ● ●
288 BRACKET; CLIP,P/S 1-82659-149-0 01 1 0005-0210 ●
