51134 - TBR-PICKUP INDONESIA
▶
9 - Tools
▶
9-31 - REAR BODY; FLOOR AND FENDER
▶

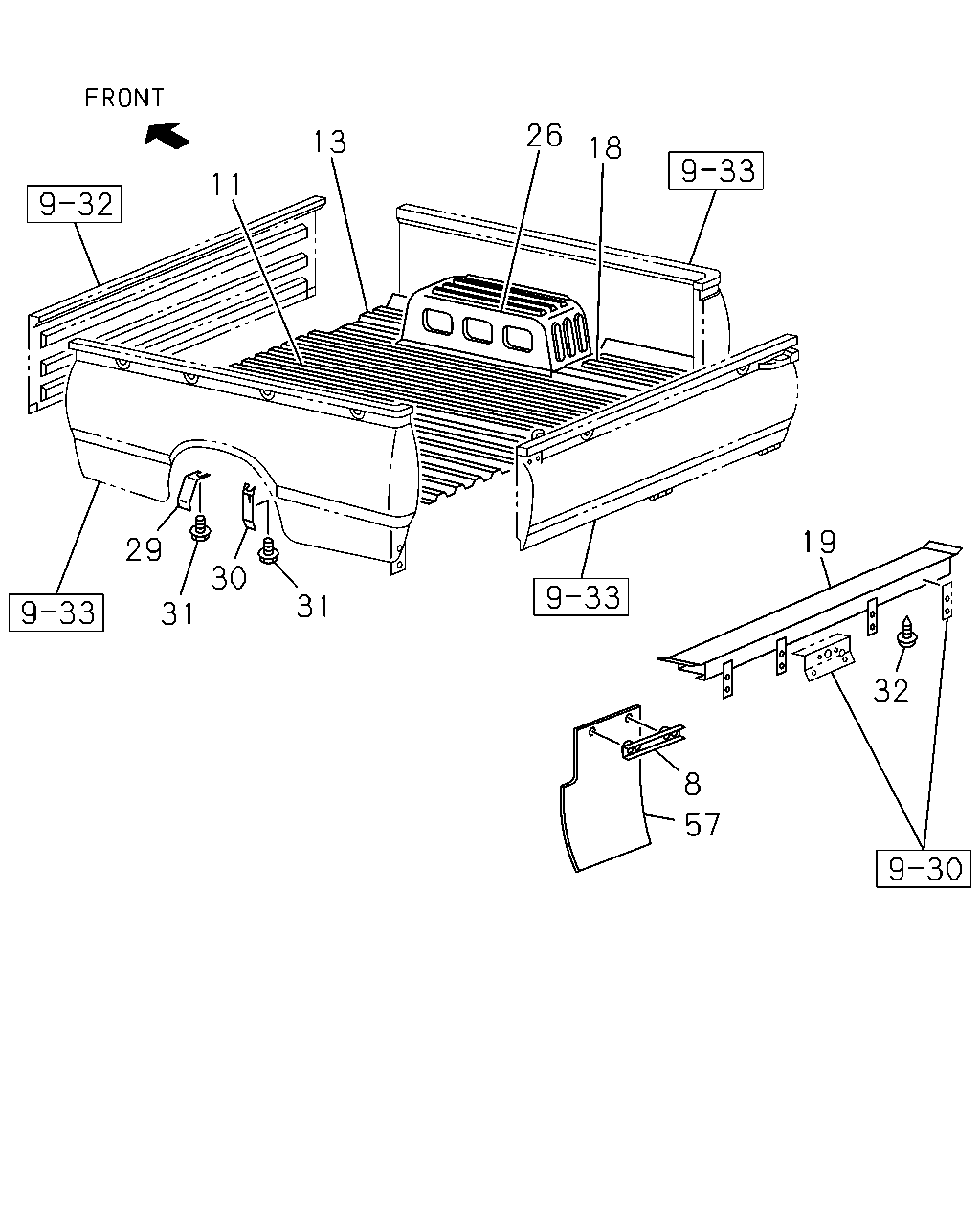

9-31 — REAR BODY; FLOOR AND FENDER
(#95707) — 14 parça
57
8
32
19
31
30
31
29
18
26
13
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HOLDER; FLAP RUBBER
IDN
8-94366-921-0
02
1
0612-
11
PANEL; FLOOR BOARD,RR BODY
IDN
8-94367-149-0
01
1
0612-
13
PANEL; FLOOR BOARD,FRT SIDE,RR BODY
IDN
8-94388-902-0
01
1
0612-
13
PANEL; FLOOR BOARD,FRT SIDE,RR BODY
IDN
8-94388-901-0
01
1
0612-
18
PANEL; FLOOR BOARD,RR SIDE
IDN
8-94388-897-0
01
1
0612-
18
PANEL; FLOOR BOARD,RR SIDE
IDN
8-94388-896-0
01
1
0612-
19
BOLSTER; RR END,RR BODY
IDN
8-94367-165-1
01
1
0612-
26
PANEL; WHEEL HOUSE,RR BODY
IDN
8-94367-217-1
02
1
0612-
29
STAY; SIDE PANEL TO FLOOR,RR BODY FRT
IDN
8-94367-225-0
02
1
0612-
30
STAY; SIDE PANEL TO FLOOR,RR BODY RR
IDN
8-94389-329-0
01
1
0612-
30
STAY; SIDE PANEL TO FLOOR,RR BODY RR
IDN
8-94389-328-0
01
1
0612-
31
BOLT; SIDE PANEL STAY,RR BODY
M6X16 W/PL WASHER IDN
8-94204-636-0
04
1
0612-
32
SCREW; FLOOR BOLSTER,RR BODY
M6X16 IDN
8-97020-619-0
12
1
0612-
57
RUBBER; FLAP RR
IDN
8-94366-920-1
02
1
0612-
