8-90 — RADIO AND TV (#95704) — 17 parça

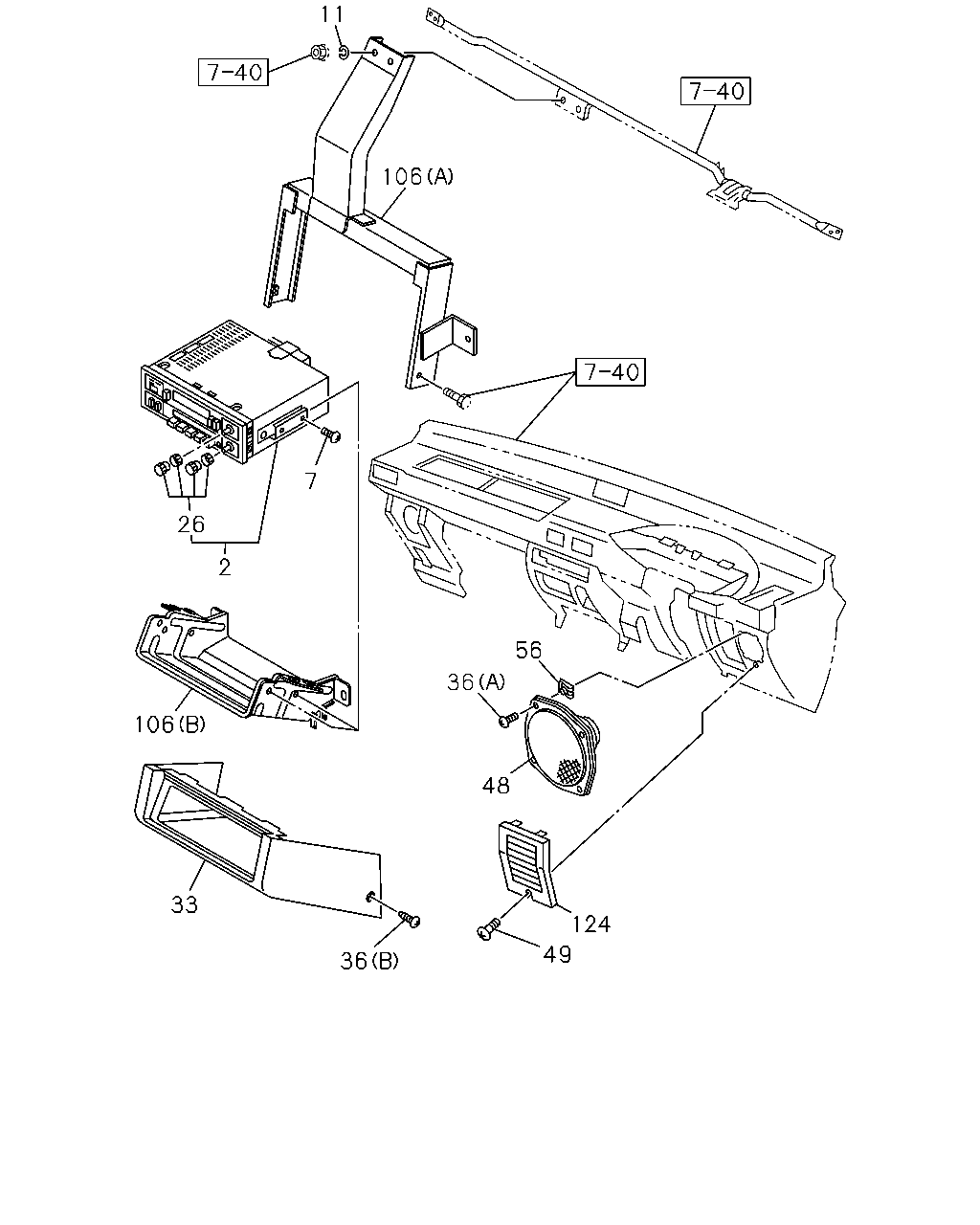

11 106 7 56 36 48 124 49 36 33 106 26 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RADIO & CASSETTE DECK ASM AM/FM RADIO CASSETTE STEREO(UM2) IDN	8-94426-154-0	01	1	0612-
7	SCREW; RADIO AM/FM RADIO CASSETTE STEREO(UM2) M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0612-
11	WASHER; LK,BRKT TO FACIA ID=6.4 OD=18	0-91610-706-0	02	1	0612-
26	ATTACH KIT; RADIO AM/FM RADIO CASSETTE STEREO(UM2) IDN	8-94167-958-0	01	1	0612-
33	COVER; RADIO BLACK	8-94333-794-2	01	1	0612-
36	SCREW; COVER (B) M5X16 TAPPING	9-09829-323-1	02	1	0612-
36	SCREW; COVER AM/FM RADIO CASSETTE STEREO(UM2) (A) M4X12 TAPPING OVAL-HEAD IDN	9-09829-312-1	08	1	0612-
48	SPEAKER; AUDIO AM/FM RADIO CASSETTE STEREO(UM2) IDN	8-94434-601-1	02	1	0612-
49	SCREW; SPEAKER M5X16 TAPPING	9-09829-323-1	01	1	0612-
56	NUT; SPEAKER,RADIO OR STEREO AM/FM RADIO CASSETTE STEREO(UM2) IDN	8-94449-956-0	08	1	0612-
106	BRACKET; STEREO DECK (A) IDN	8-94379-601-1	01	1	0612-
106	BRACKET; STEREO DECK (B)	8-94435-484-3	01	1	0612-
124	GRILLE; SPEAKER BLACK	8-94340-986-1	01	1	0612-

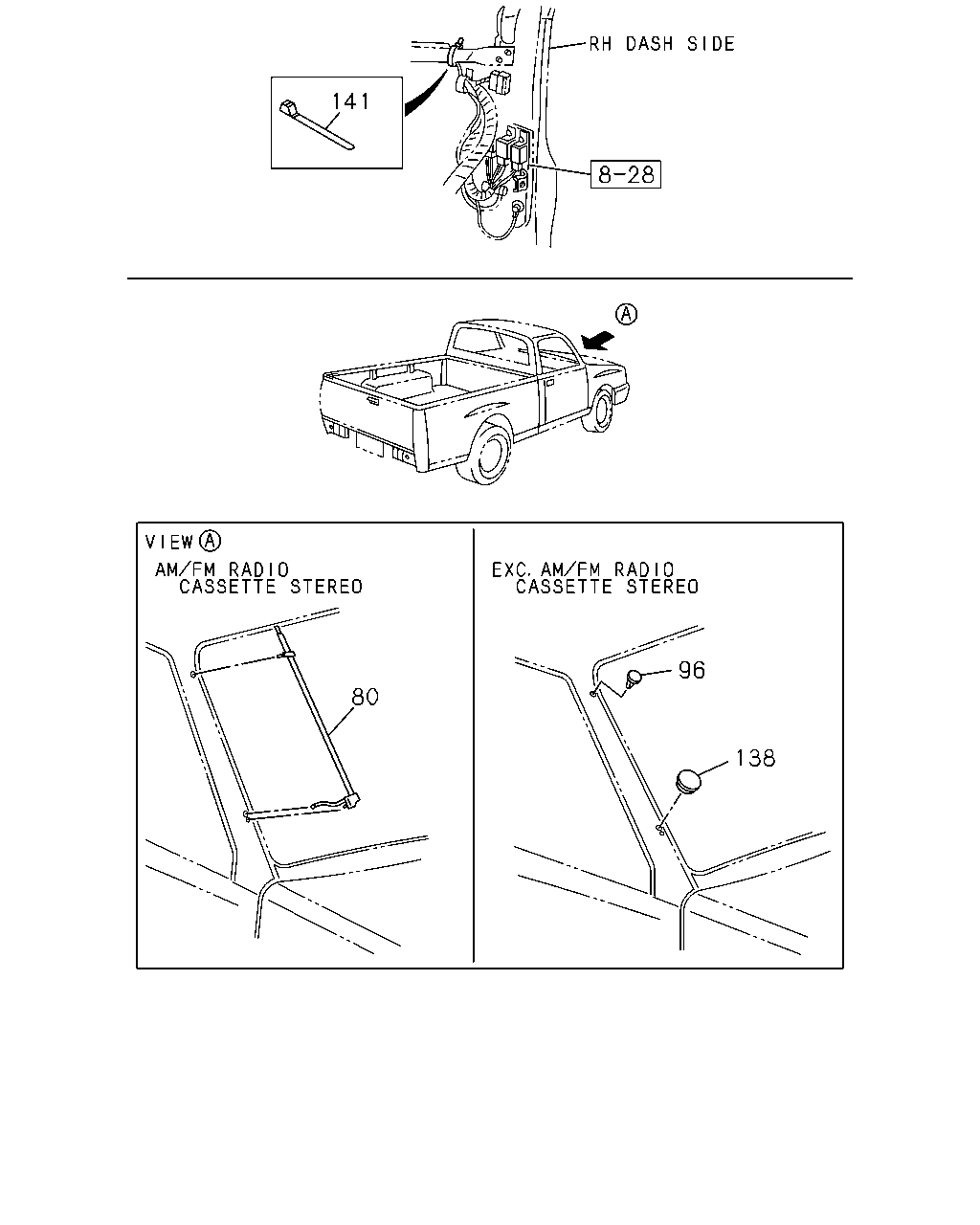

141 138 96 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	ANTENNA AM/FM RADIO CASSETTE STEREO(UM2) IDN	8-97027-515-0	01	1	0612-
96	PLUG; ANTENNA HOLE EXC. AM/FM RADIO CASSETTE STEREO(UM2) IDN	8-94208-453-1	02	1	0612-
138	PLUG; RUBBER,DASH SIDE PANEL EXC. AM/FM RADIO CASSETTE STEREO(UM2) IDN	8-94203-634-1	01	1	0612-
141	CLIP; ANTENNA CABLE AM/FM RADIO CASSETTE STEREO(UM2) L=140 IDN	5-09707-031-1	02	1	0612-
