51134 - TBR-PICKUP INDONESIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

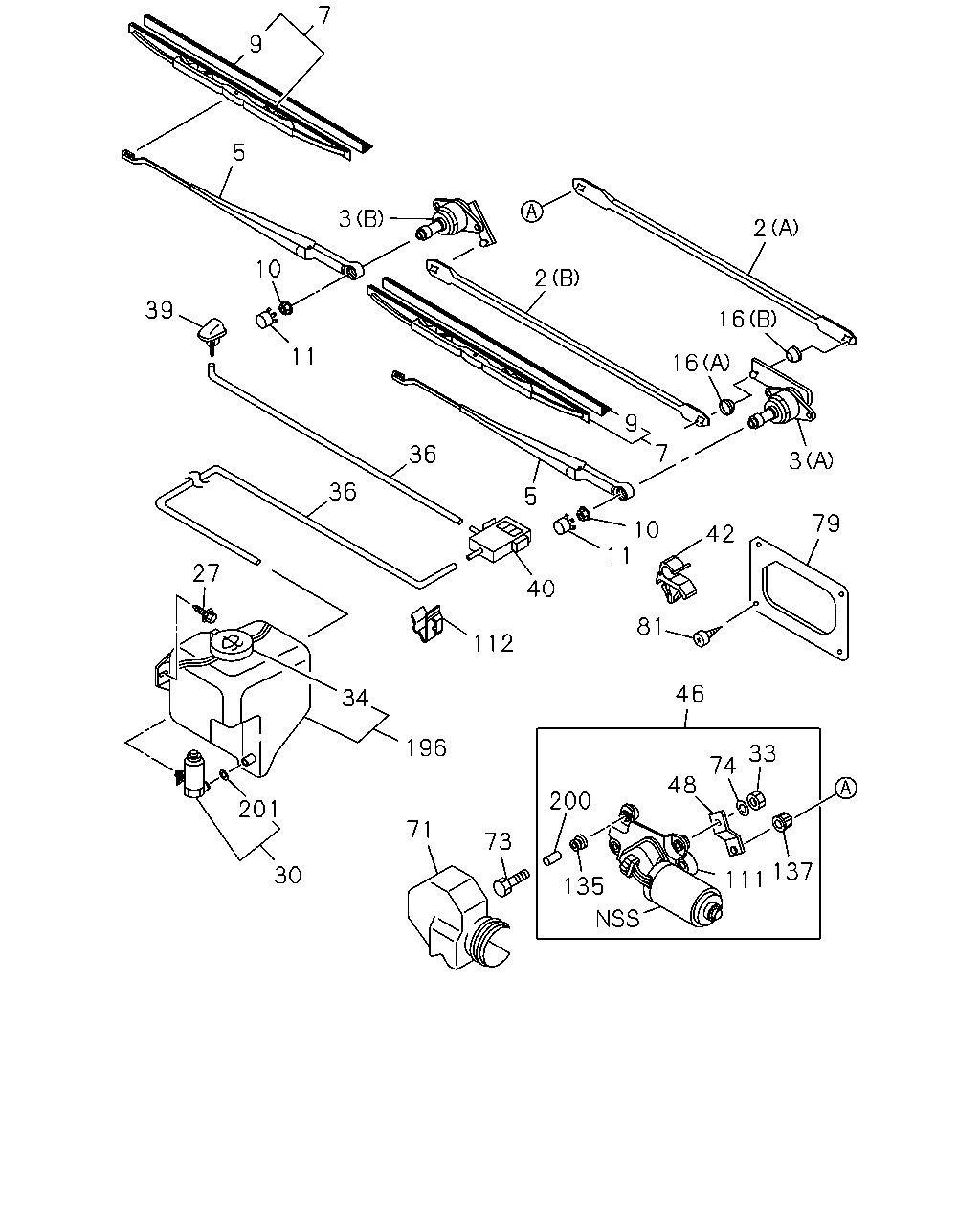

8-80 — WINDSHIELD WIPER AND WASHER
(#95703) — 34 parça
2
16
16
2
3
7
9
5
10
11
39
36
36
7
9
3
5
10
11
42
79
46
81
40
112
34
27
196
201
73
71
30
33
74
48
200
135
111
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LINK; FRT WIPER
(A)
8-97027-516-0
01
1
0612-
2
LINK; FRT WIPER
(B)
8-97036-734-0
01
1
0612-
3
PIVOT ASM; FRT WIPER
(A)
8-97036-733-0
01
1
0612-
3
PIVOT ASM; FRT WIPER
(B)
8-97036-735-0
01
1
0612-
5
ARM; WIPER
IDN
8-97137-351-0
02
1
0612-
7
BLADE; WIPER
IDN
8-97136-361-0
02
1
0612-
9
RUBBER; FRT WIPER BLADE
IDN
8-97034-166-0
02
1
0612-
10
NUT; WIPER ARM TO WIPER PIVOT
M8 FLANGE
9-09844-190-0
02
1
0612-0803
10
NUT; WIPER ARM TO WIPER PIVOT
M8 FLANGE
8-98053-188-0
02
1
0804-
11
COVER; WIPER ARM
8-94460-965-0
02
1
0612-
16
SEAL; BALL JOINT
(A) IDN
8-94167-624-0
01
1
0612-
16
SEAL; BALL JOINT
(B) IDN
8-97025-889-0
02
1
0612-
27
BOLT; WASHER TANK
M6X18
8-94239-622-0
02
1
0612-
30
MOTOR ASM; FRT WASHER TANK
IDN
8-94335-625-1
01
1
0612-
33
NUT; MOTOR TO ARM
M8
9-09111-408-0
01
1
0612-
34
CAP; WASHER TANK
IDN
8-94436-369-0
01
1
0612-
36
HOSE; WASHER
SERVICED BY L=10000 IDN
9-09914-906-0
01
1
0612-
39
NOZZLE; WINDSHIELD WASHER
8-94139-450-2
01
1
0612-
40
JOINT; WASHER HOSE
IDN
8-94335-627-0
01
1
0612-
42
CLIP; WASHER HOSE
ID=6.5
8-94206-730-0
03
1
0612-
46
MOTOR ASM; FRT WINDSHIELD WIPER
8-94368-230-1
01
1
0612-
48
ARM; WIPER MOTOR
8-97034-390-0
01
1
0612-
71
COVER; WIPER MOTOR
8-94153-152-1
01
1
0612-
73
BOLT
M6X28 W/PL WASHER
8-94148-420-0
04
1
0612-
74
WASHER; ARM TO MOTOR
ID=8.2
9-09150-508-0
01
1
0612-
79
COVER; CHECK HOLE,WIPER MOTOR & LINK
IDN
8-97021-719-0
02
1
0612-
81
SCREW; CHECK HOLE COVER,WIPER MOTOR
M5X10 TAPPING
0-71240-510-0
08
1
0612-
111
SEAL; FRT WIPER MOTOR TO BRKT
8-94139-442-2
01
1
0612-
112
CLIP; HARNESS,WIPER MOTOR
8-94218-056-0
02
1
0612-
135
RUBBER; CUSHION,WIPER MOTOR
8-94148-134-0
04
1
0612-
137
SEAL; JOINT,WIPER MOTOR
IDN
8-94167-624-0
01
1
0612-
196
TANK; WASHER
IDN
8-97075-617-0
01
1
0612-
200
COLLAR; WIPER MOTOR
8-94148-135-0
04
1
0612-
201
LINING; WIPER MOTOR
IDN
8-94352-050-0
01
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
