8-71 — COMPRESSOR; AIR CONDITIONING (#95702) — 11 parça

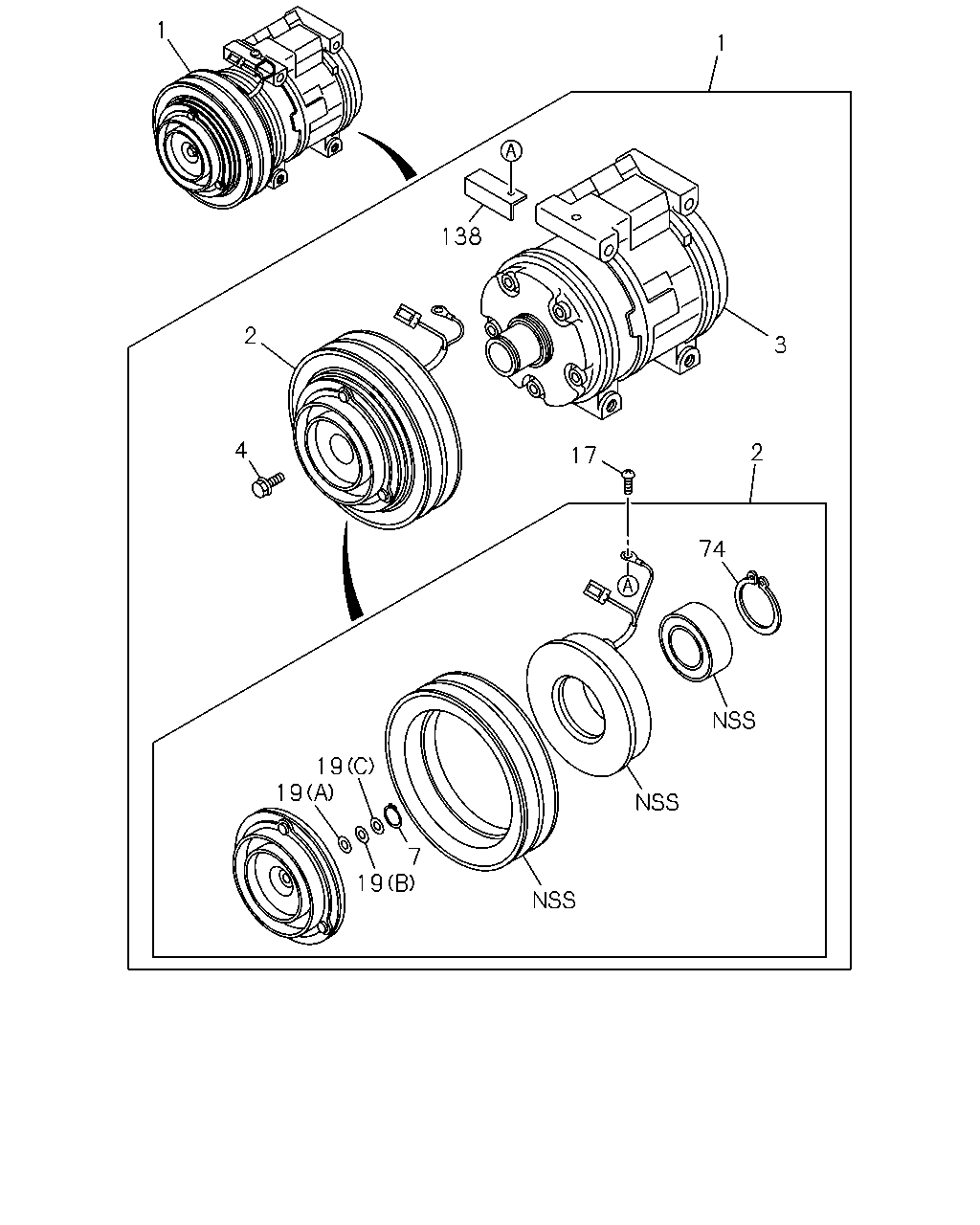

çizim 288868
74 2 3 17 7 19 19 19 4 2 138 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
AIR CON PREPARATORY PACK(S6D) IDN 		8-97562-627-0 01 1 0612-
2 CLUTCH; MAGNET,A/C
AIR CON PREPARATORY PACK(S6D) IDN 		8-97254-499-0 01 1 0612-
3 COMPRESSOR ASM; A/C
AIR CON PREPARATORY PACK(S6D) IDN 		8-98016-874-0 01 1 0612-
4 BOLT; MAGNET CLU
AIR CON PREPARATORY PACK(S6D) IDN 		8-97126-316-0 01 1 0612-
7 RING; SNAP,PULLEY
AIR CON PREPARATORY PACK(S6D) IDN 		1-83579-932-0 01 1 0612-
17 SCREW; WIRE CLIP MAGNET CLU
AIR CON PREPARATORY PACK(S6D) 		5-81129-130-0 01 1 0612-
19 WASHER; LK,PULLEY,MAGNET CLU
AIR CON PREPARATORY PACK(S6D) (A) T=0.1 		1-83579-890-0 01 1 0612-
19 WASHER; LK,PULLEY,MAGNET CLU
AIR CON PREPARATORY PACK(S6D) (B) T=0.3 IDN 		1-83579-891-0 01 1 0612-
19 WASHER; LK,PULLEY,MAGNET CLU
AIR CON PREPARATORY PACK(S6D) (C) T=0.5 IDN 		1-83579-892-0 01 1 0612-
74 RING; SNAP,MAGNET CLU
AIR CON PREPARATORY PACK(S6D) IDN 		1-83579-889-0 01 1 0612-
138 BRACKET; COMPRESSOR
AIR CON PREPARATORY PACK(S6D) IDN 		8-97254-501-0 01 1 0612-
