4-33 — STEERING LINKAGE
(#9570) — 32 parça
Tümü
A - FTR5MF
B - FTR5WF
◀

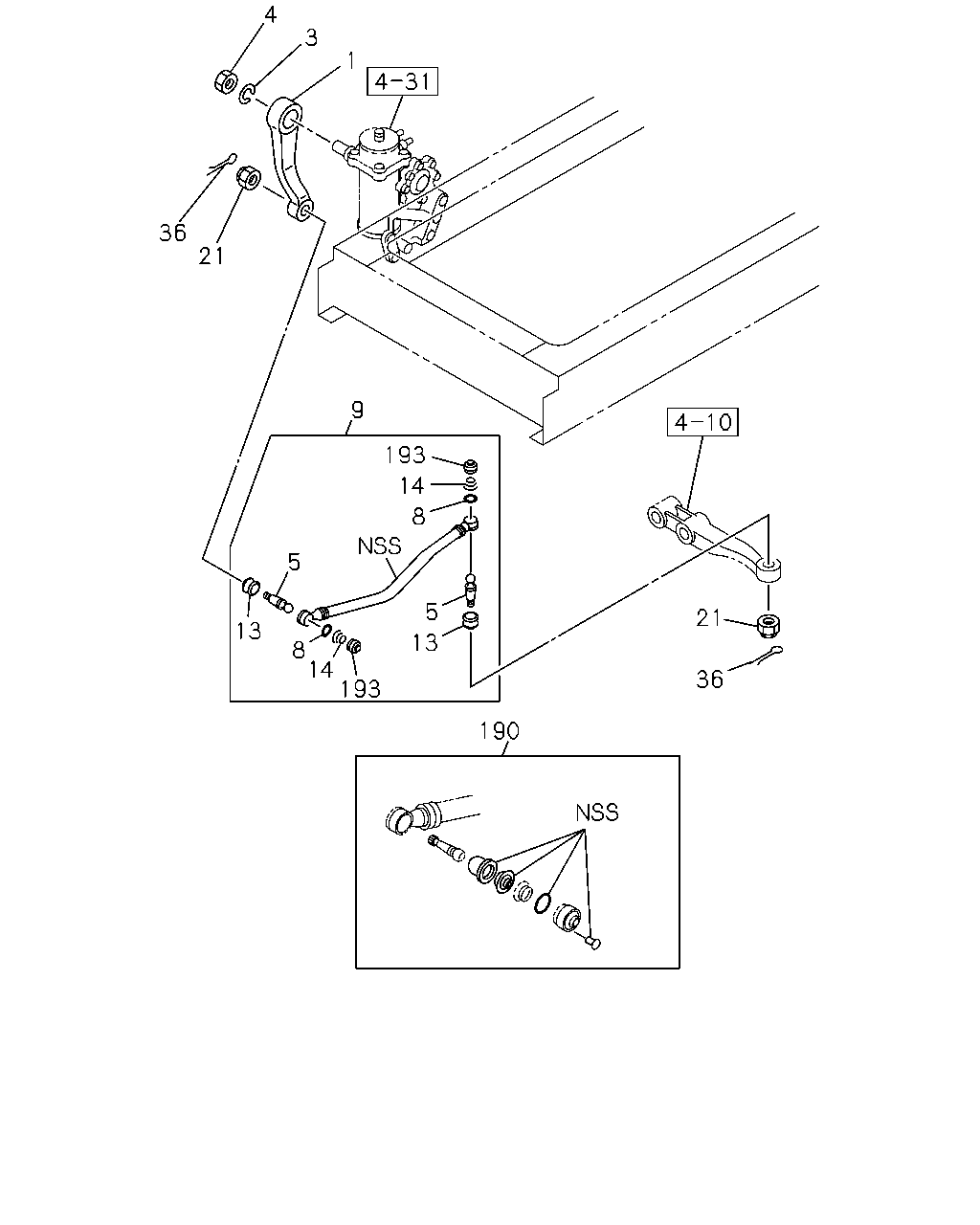

[433A] -'11/3 (18 parça)
[433A] '11/4- (14 parça)
▶
4
3
1
36
21
9
193
14
8
5
5
21
13
13
8
14
193
36
190
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; PITMAN,STRG
1-44341-409-1
01
1
0005-
●
●
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0005-
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0005-0805
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
●
●
5
BALL; JOINT,DRAG LINK
1-44361-105-1
02
1
0005-1103
●
●
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
0005-1103
●
●
9
LINK; DRAG
1-44380-100-3
01
1
0005-0301
●
●
9
LINK; DRAG
1-44380-283-1
01
1
0302-1103
●
●
9
LINK; DRAG
8-98181-401-0
01
1
1104-
●
●
13
BOOT; DRAG LINK
1-43159-107-0
02
1
0005-1103
●
●
13
BOOT; DRAG LINK
1-43159-131-0
02
1
1104-
●
●
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
0005-1103
●
●
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0005-0805
●
●
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0005-0606
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
●
●
190
REPAIR KIT; DRAG LINK
1-85574-041-0
02
1
0005-1103
●
●
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
0005-1103
●
●
4
3
1
36
21
9
11
11
13
13
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; PITMAN,STRG
1-44341-409-1
01
1
0005-
●
●
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0005-
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0005-0805
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
●
●
9
LINK; DRAG
1-44380-100-3
01
1
0005-0301
●
●
9
LINK; DRAG
1-44380-283-1
01
1
0302-1103
●
●
9
LINK; DRAG
8-98181-401-0
01
1
1104-
●
●
11
NIPPLE; GREASE,DRAG LINK
8-98160-122-0
02
1
1104-
●
●
13
BOOT; DRAG LINK
1-43159-107-0
02
1
0005-1103
●
●
13
BOOT; DRAG LINK
1-43159-131-0
02
1
1104-
●
●
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0005-0805
●
●
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0005-0606
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
●
●
