Isuzu WW
▶
AUV
▶
TBR
▶
51134 - TBR-PICKUP INDONESIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶

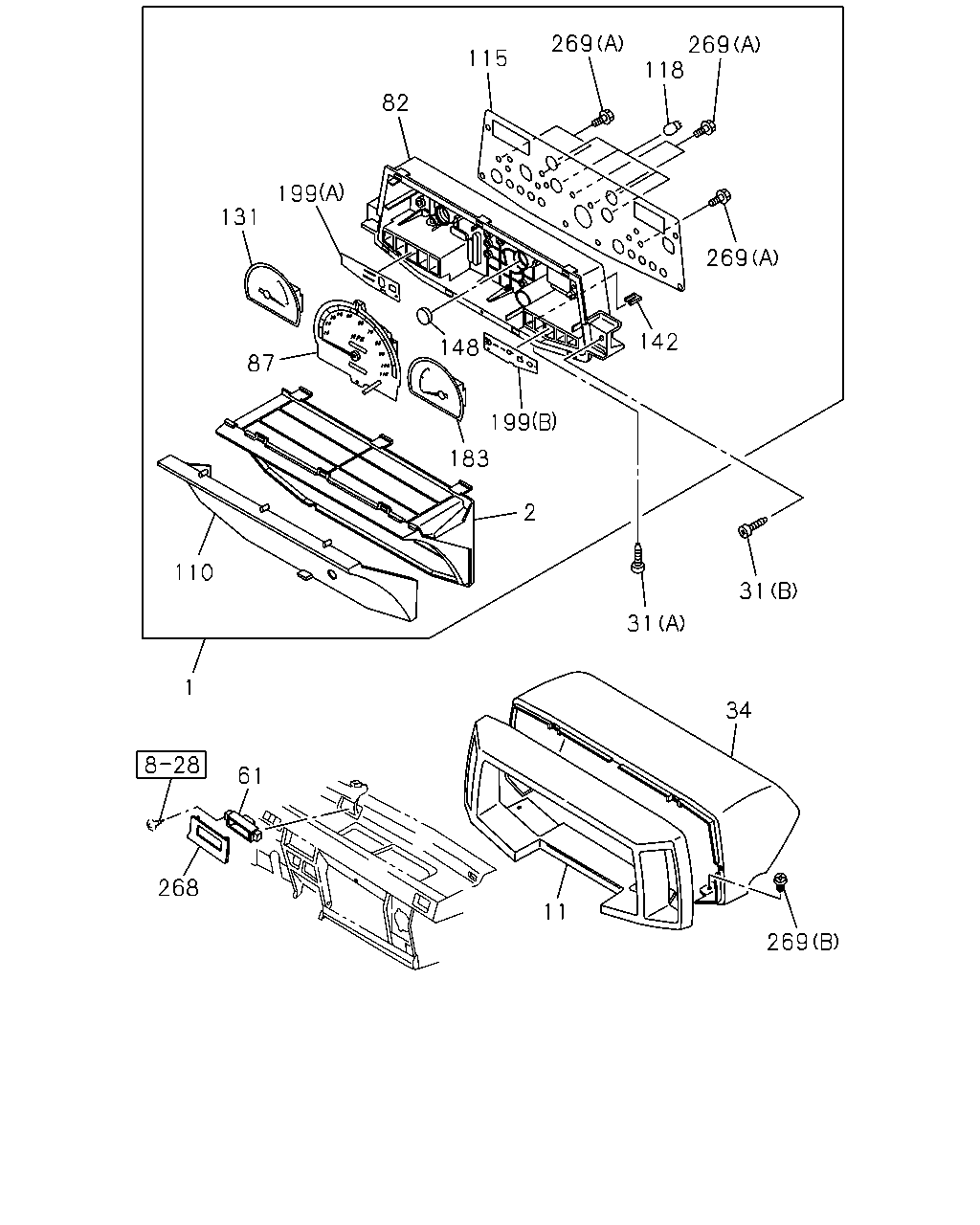

8-21 — METER ASM
(#95695) — 25 parça
268
61
11
269
34
31
31
110
2
183
199
87
148
142
269
131
199
82
115
269
269
118
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-97135-117-0
01
1
0612-
2
PANEL; CLUSTER
8-97147-171-0
01
1
0612-
11
CLUSTER ASM; METER
BLACK
8-97151-128-2
01
1
0612-
31
SCREW; METER,INST PANEL
(A) M5X14 TAPPING W/PL WASHER IDN
0-74160-514-0
01
1
0612-
31
SCREW; METER,INST PANEL
(B) M5X16 TAPPING
9-09829-323-1
02
1
0612-
34
HOOD; CLUSTER METER
BLACK
8-94333-788-5
01
1
0612-
61
CLOCK; DIGITAL
DIGITAL CLOCK<UE8> IDN
8-94434-489-1
01
1
0612-
82
CASE ASM; CLUSTER METER
8-97147-172-0
01
1
0612-
87
SPEEDOMETER
8-97147-175-0
01
1
0612-
110
GLASS; CLUSTER METER
8-97147-170-0
01
1
0612-
115
CIRCUIT; PRINTED,CLUSTER METER
8-97147-174-0
01
1
0612-
118
BULB; CLUSTER METER
W/GREEN CAP 14V 3.4W
8-97147-187-0
02
1
0612-
118
BULB; CLUSTER METER
WO/CAP 14V 3.4W
8-97147-188-0
03
1
0612-
118
BULB; CLUSTER METER
14V 1.4W
8-97147-189-0
04
1
0612-
131
GAUGE; TEMP,CLUSTER METER
8-97147-180-0
01
1
0612-
142
NUT; HOOD FIX,CLUSTER METER
8-97147-193-0
01
1
0612-
148
LENS; PILOT,TURN SIGNAL,CLUSTER METER
8-97147-185-0
02
1
0612-
183
GAUGE; FUEL
8-97147-179-0
01
1
0612-
199
LENS; WARNING LAMP
(A)
8-97147-182-0
01
1
0612-
199
LENS; WARNING LAMP
(B)
8-97147-184-0
01
1
0612-
268
BEZEL; CLOCK
DIGITAL CLOCK<UE8> BLACK IDN
8-94434-488-0
01
1
0612-
268
BEZEL; CLOCK
EXC. DIGITAL CLOCK<UE8> BLACK IDN
8-94333-789-1
01
1
0612-
269
SCREW; METER CLUSTER
(A) M4
8-97147-191-0
02
1
0612-
269
SCREW; METER CLUSTER
(A) M3
8-97147-192-0
06
1
0612-
269
SCREW; METER CLUSTER
(B) M5X16 TAPPING
9-09829-323-1
04
1
0612-
