51134 - TBR-PICKUP INDONESIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-15 - FIXING PARTS; WIRING HARNESS
▶
8-15 — FIXING PARTS; WIRING HARNESS
(#95693) — 14 parça
◀

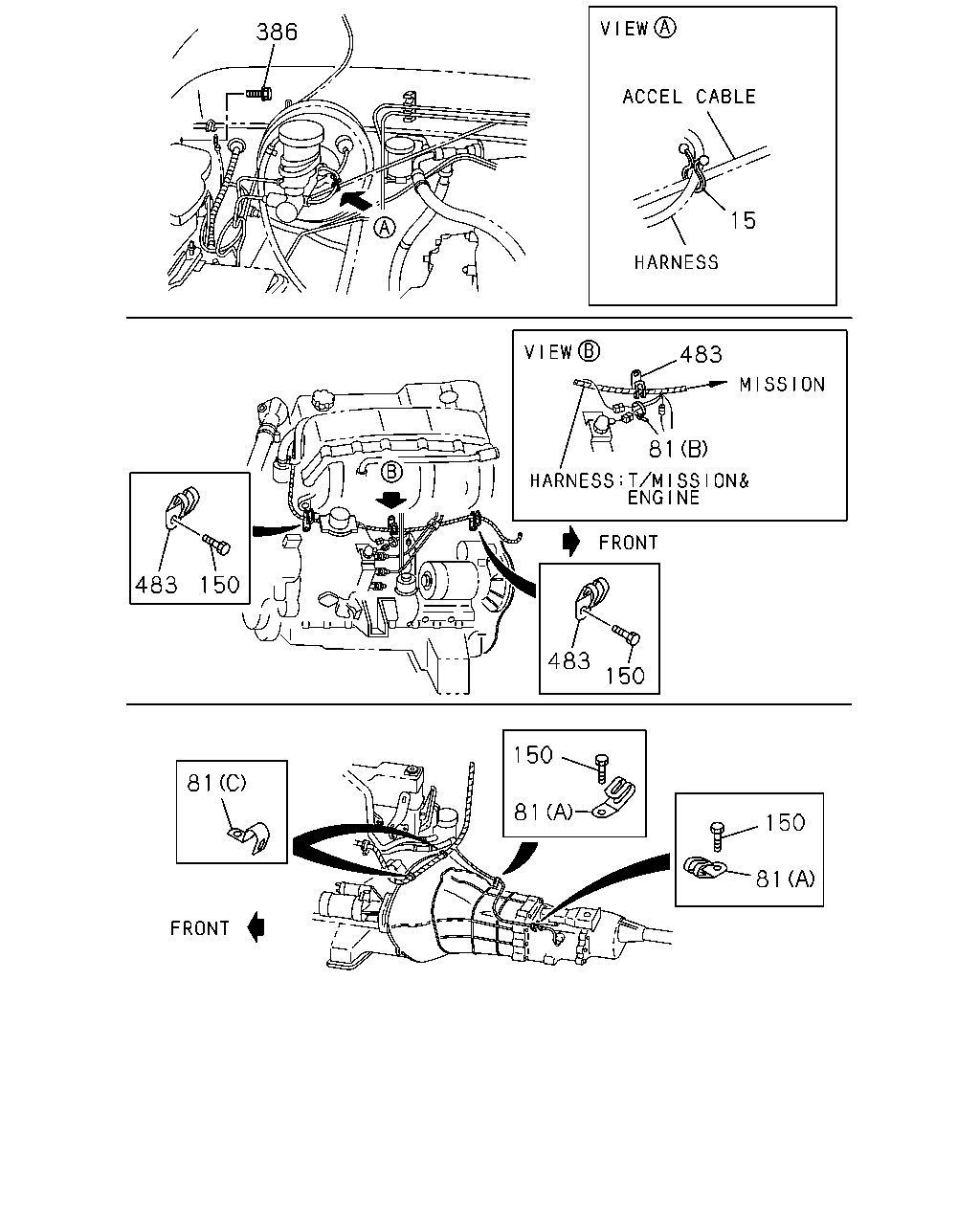

[815A] NO.2 (9 parça)
[815A] NO.1 (5 parça)
▶
386
15
483
81
483
150
483
150
81
150
81
150
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CLIP; PURSE LOCK
ID=8.3
1-09709-082-0
01
1
0612-
81
CLIP; HARNESS
(A) ID=12 B=14 ID=8.5 IDN
5-09700-350-0
02
1
0612-0801
81
CLIP; HARNESS
(A) ID=12 IDN
8-97367-984-1
02
1
0802-
81
CLIP; HARNESS
(B) L=140 IDN
5-09707-031-1
01
1
0612-
81
CLIP; HARNESS
(C) ID=22
8-97022-767-0
02
1
0612-
150
BOLT; CLIP
M8X12 FLANGE
0-28050-812-0
03
1
0612-
386
BOLT; GRAND HARNESS
M6X14 W/LK&PL WASHER
8-97086-822-0
04
1
0612-
483
CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 IDN
5-09700-350-0
03
1
0612-0801
483
CLIP; ENG HARNESS
ID=12 IDN
8-97367-984-1
03
1
0802-
38
64
38
16
294
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; HARNESS
L=140 IDN
5-09707-031-1
02
1
0612-
38
BOLT; CLIP,HARNESS
(B) M6X16
5-09009-032-0
01
1
0612-
38
BOLT; CLIP,HARNESS
(A) M5X16
8-94242-120-0
02
1
0612-
64
SCREW; CLIP
M5X16 TAPPING
9-09829-323-1
01
1
0612-
294
NUT
AIR CON PREPARATORY PACK(S6D) M8 FLANGE IDN
0-91180-208-0
01
1
0612-
