51134 - TBR-PICKUP INDONESIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

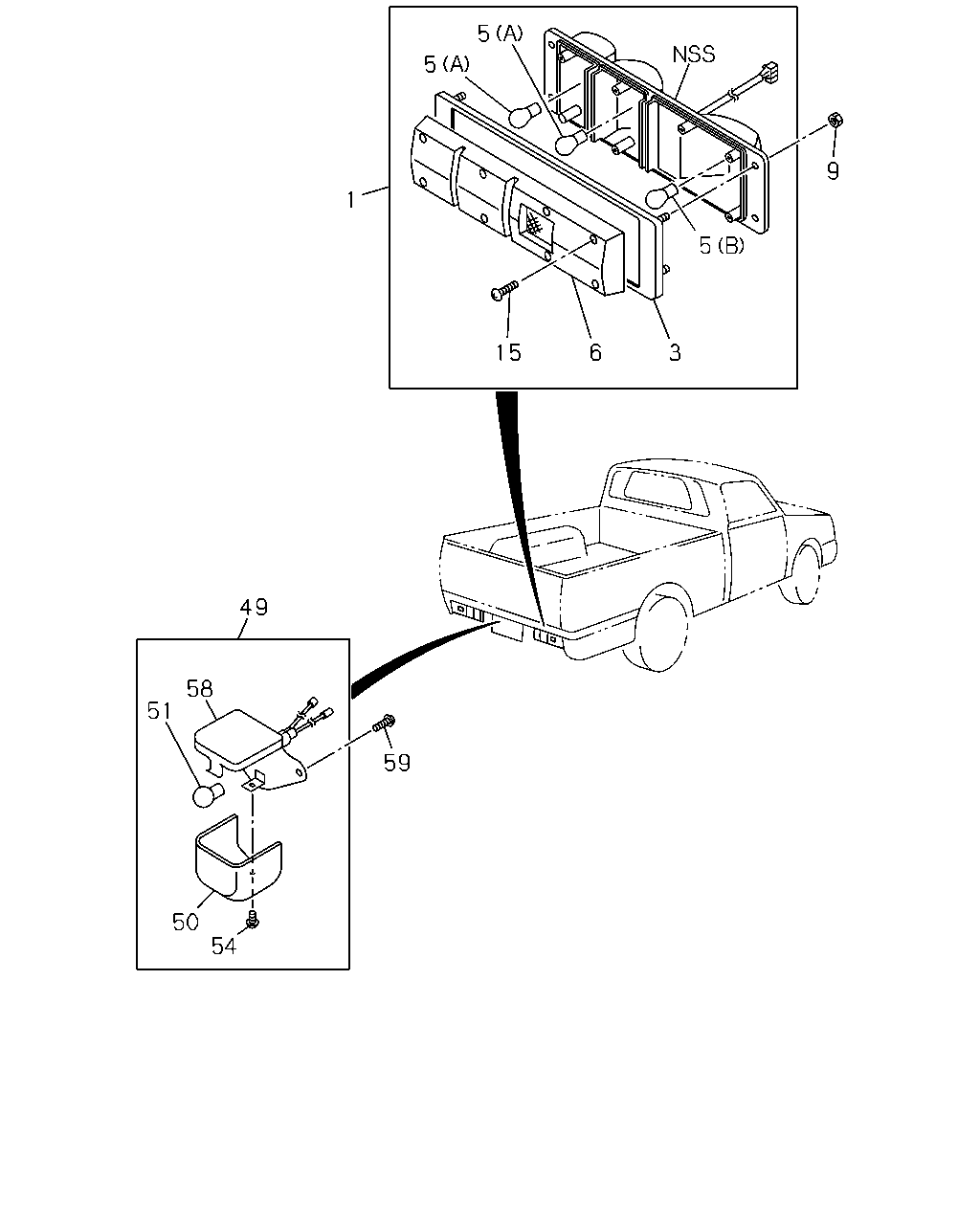

8-03 — LAMP; REAR AND REAR SIDE
(#95690) — 16 parça
5
5
9
5
3
6
15
1
49
59
58
51
50
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
IDN
5-82230-037-1
01
1
0612-
1
LAMP ASM; RR COMB
IDN
5-82230-036-1
01
1
0612-
3
GASKET; RR COMB LAMP
IDN
5-82236-002-0
01
1
0612-
3
GASKET; RR COMB LAMP
IDN
5-82236-001-0
01
1
0612-
5
BULB; RR COMB LAMP
(A) 12V 23W IDN
9-82692-131-0
04
1
0612-
5
BULB; RR COMB LAMP
(B) 12V 23/8W IDN
9-82692-132-0
02
1
0612-
6
LENS; RR COMB LAMP
IDN
5-82235-002-0
01
1
0612-
6
LENS; RR COMB LAMP
IDN
5-82235-001-0
01
1
0612-
9
NUT; LAMP,RR COMB
M5 FLANGE IDN
5-09440-003-0
08
1
0612-
15
SCREW; RR COMB LAMP
IDN
5-82239-005-0
16
1
0612-
49
LAMP; LICENSE PLATE
12V 10W IDN
5-82120-020-0
01
1
0612-
50
LENS; LICENSE PLATE LAMP
5-82125-004-0
01
1
0612-
51
BULB; LICENSE PLATE LAMP
12V 10W IDN
8-94126-494-0
01
1
0612-
54
SCREW; LICENSE PLATE LAMP
M4X8 IDN
8-94419-312-0
01
1
0612-
58
COVER; LICENSE PLATE LAMP
8-97045-767-1
01
1
0612-
59
SCREW; TAP,LICENSE LAMP BODY
M5X12 TAPPING
0-71040-512-0
02
1
0612-
