7-50 — FRONT SEAT (#95687) — 33 parça

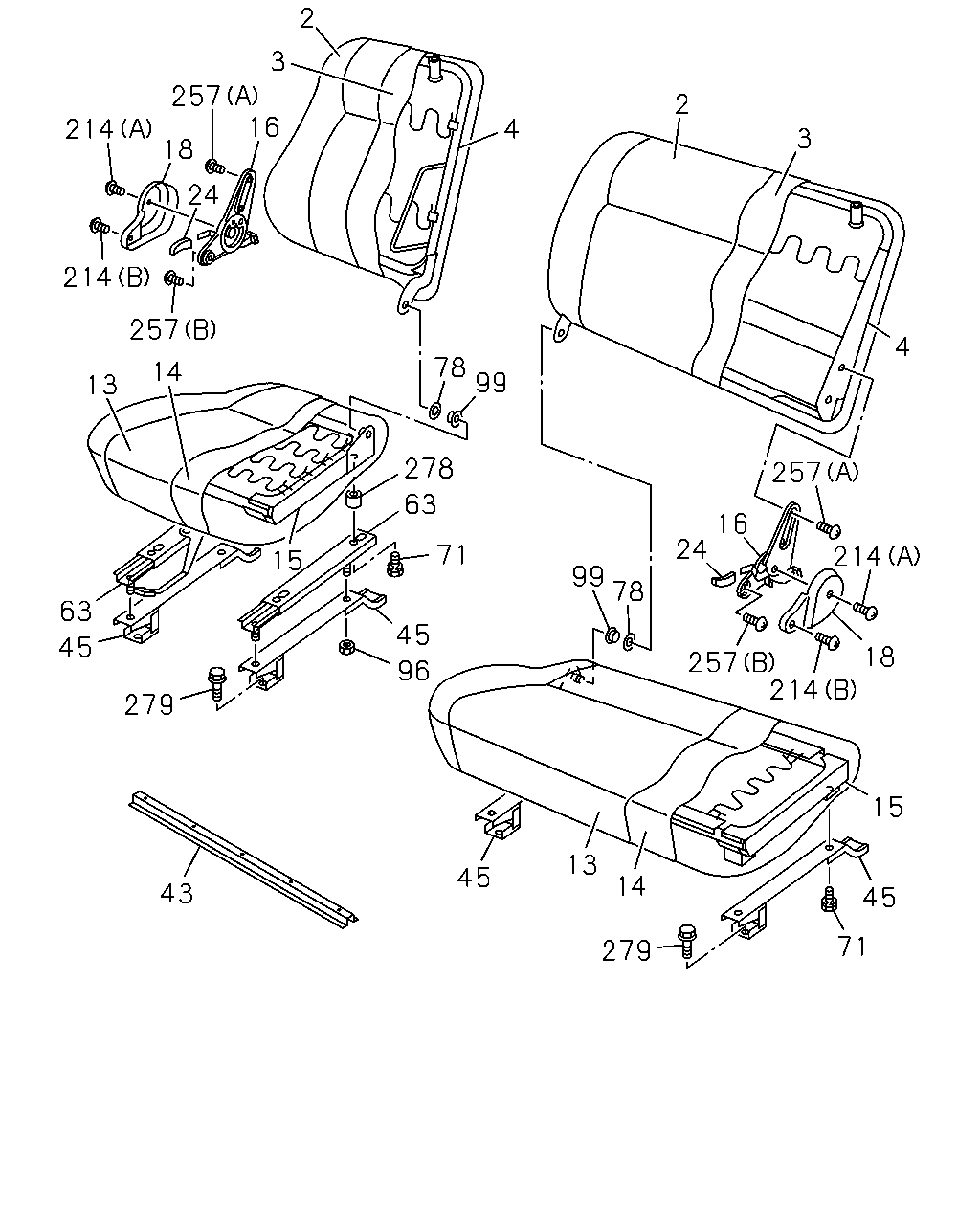

çizim 289542
2 3 4 257 2 3 4 16 257 214 24 214 14 257 13 78 278 71 63 45 96 279 45 15 63 18 16 24 78 99 43 45 14 13 279 71 15 214 257 214 18 99 45
BalonParca AdiParca NoAdetTipApplied Date
2 COVER; TRIM,FRT SEAT,BACK
GRAY IDN 		8-97000-888-1 01 1 0612-
2 COVER; TRIM,FRT SEAT,BACK
GRAY IDN 		8-97000-882-1 01 1 0612-
3 PAD; FRT SEAT BACK
IDN 		8-94369-424-1 01 1 0612-
3 PAD; FRT SEAT BACK
IDN 		8-94369-418-1 01 1 0612-
4 FRAME ASM; FRT SEAT
IDN 		8-94369-423-1 01 1 0612-
4 FRAME ASM; FRT SEAT
IDN 		8-94369-417-1 01 1 0612-
13 COVER; TRIM,FRT SEAT,CUSHION
IDN 		8-97000-890-1 01 1 0612-
13 COVER; TRIM,FRT SEAT,CUSHION
IDN 		8-97000-884-1 01 1 0612-
14 PAD; FRT SEAT CUSHION
IDN 		8-94369-427-1 01 1 0612-
14 PAD; FRT SEAT CUSHION
IDN 		8-94369-421-1 01 1 0612-
15 FRAME; CUSHION,FRT SEAT
IDN 		8-94369-426-1 01 1 0612-
15 FRAME; CUSHION,FRT SEAT
IDN 		8-94369-420-1 01 1 0612-
16 ADJUSTER ASM; RECLINING
IDN 		8-94473-669-2 01 1 0612-
16 ADJUSTER ASM; RECLINING
IDN 		8-94473-497-2 01 1 0612-
18 COVER; RECLINING
GRAY IDN 		8-97000-891-1 01 1 0612-
18 COVER; RECLINING
GRAY IDN 		8-97000-885-1 01 1 0612-
24 KNOB; RECLINING,FRT,SEAT
GRAY IDN 		8-94477-521-0 01 1 0612-
24 KNOB; RECLINING,FRT,SEAT
GRAY IDN 		8-94477-508-0 01 1 0612-
43 BAR ASM; FRT SEAT MTG
IDN 		8-94377-663-1 01 1 0612-
45 BRACKET; SEAT MTG,FRT
IDN 		8-97011-688-0 04 1 0612-
63 ADJUSTER; SEAT SLIDE
WO/LEVER IDN 		8-97011-753-1 01 1 0612-
63 ADJUSTER; SEAT SLIDE
W/LEVER IDN 		8-97011-752-1 01 1 0612-
71 BOLT; ADJ TO SEAT
M8X25 W/LK&PL WASHER IDN 		0-50640-825-0 04 1 0612-
71 BOLT; ADJ TO SEAT
M8X35 W/LK&PL WASHER IDN 		0-50640-835-0 04 1 0612-
78 RING; SNAP
ID=10 IDN 		0-91805-510-0 02 1 0612-
96 NUT; LK,HINGE
M8 FLANGE IDN 		0-91180-208-0 04 1 0612-
99 BUSHING; SEAT BACK
IDN 		8-94371-716-0 02 1 0612-
214 SCREW; SIDE COVER
(A) M5X16 TAPPING W/PL WASHER IDN 		0-74360-516-0 02 1 0612-
214 SCREW; SIDE COVER
(B) IDN 		8-94478-733-0 02 1 0612-
257 BOLT; RECLINING DEVICE
(A) M10X20 W/LK WASHER IDN 		0-50541-020-0 04 1 0612-
257 BOLT; RECLINING DEVICE
(B) M10X20 W/LK WASHER IDN 		8-94317-654-0 04 1 0612-
278 COLLAR; FRT SEAT
IDN 		8-94371-715-1 04 1 0612-
279 BOLT; FRT SEAT
M10X19 		8-94427-095-2 08 1 0612-
