51134 - TBR-PICKUP INDONESIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶

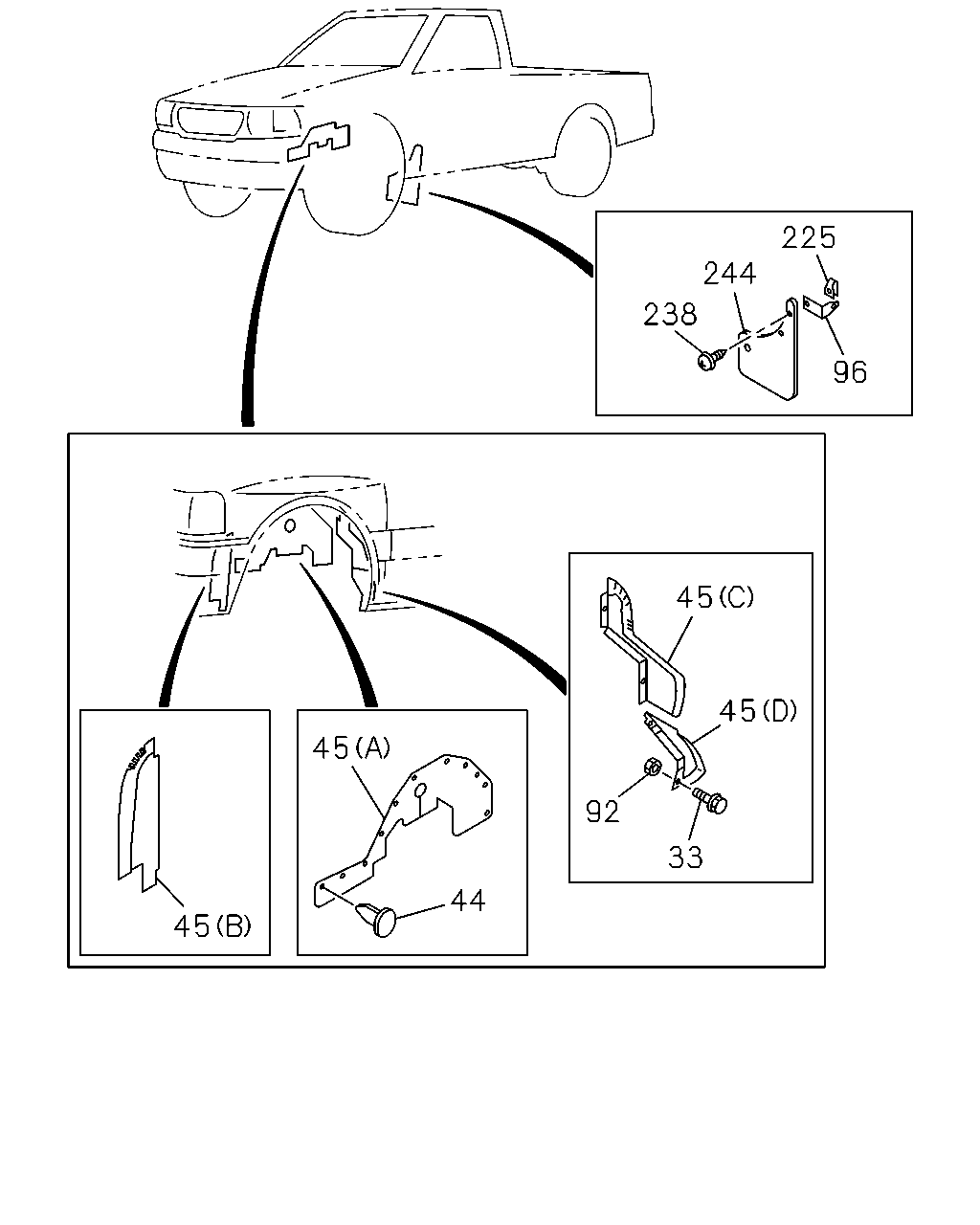

6-47 — MUD GUARD AND INSULATOR
(#95671) — 14 parça
225
244
238
96
45
45
33
92
45
44
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
BOLT; MUD COVER
M6X16 W/PL WASHER IDN
8-94204-636-0
18
1
0612-
44
CLIP; ANCHOR
8-94215-211-0
22
1
0612-
45
COVER; MUD,FENDER SKIRT
(A) IDN
8-94366-931-0
02
1
0612-
45
COVER; MUD,FENDER SKIRT
(B) IDN
8-94366-933-0
01
1
0612-
45
COVER; MUD,FENDER SKIRT
(B) IDN
8-94366-932-0
01
1
0612-
45
COVER; MUD,FENDER SKIRT
(C) IDN
8-94388-228-0
01
1
0612-
45
COVER; MUD,FENDER SKIRT
(C) IDN
8-94388-227-0
01
1
0612-
45
COVER; MUD,FENDER SKIRT
(D) IDN
8-94388-230-0
01
1
0612-
45
COVER; MUD,FENDER SKIRT
(D) IDN
8-94388-229-0
01
1
0612-
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
08
1
0612-
96
STAY; MUD GUARD
IDN
8-97026-328-0
02
1
0612-
225
NUT; MUD GUARD
8-94158-038-0
08
1
0612-
238
SCREW; MUD GUARD
M5X16 IDN
8-94380-268-0
08
1
0612-
244
GUARD; MUD,SPLASH
IDN
8-97026-327-0
02
1
0612-
