6-32 — FRONT DOOR LOCK AND HANDLE (#95669) — 29 parça

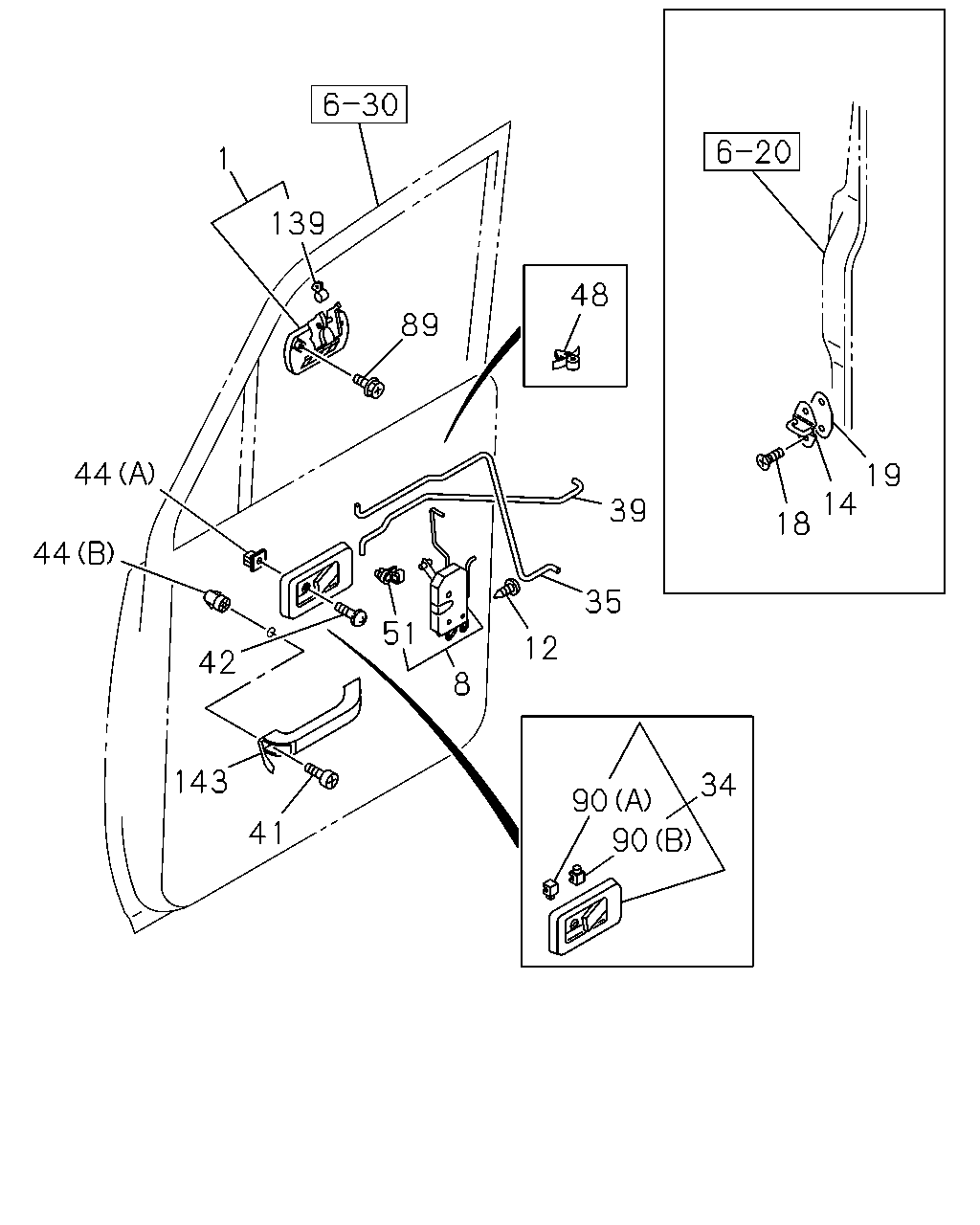

çizim 288613
18 14 19 48 39 12 35 34 90 90 8 51 41 143 42 44 44 1 139 89
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR
IDN 		8-97072-485-1 01 1 0612-
1 HANDLE; OUTSIDE,FRT DOOR
IDN 		8-97072-484-1 01 1 0612-
8 LOCK; DOOR,FRT DOOR 8-94366-400-2 01 1 0612-
8 LOCK; DOOR,FRT DOOR 8-94366-399-2 01 1 0612-
12 SCREW; DOOR LK
M6X16 OVAL-HD IDN 		8-94172-523-0 06 1 0612-
14 STRIKER; FRT DOOR 8-94115-959-0 02 1 0612-
18 SCREW; DOOR STRIKER
M8X20 IDN 		8-94327-388-0 04 1 0612-
19 SHEET; ADJ,DOOR STRIKER
IDN 		8-94239-378-0 AR 1 0612-
34 HANDLE; INSIDE,FRT DOOR
BLACK IDN 		8-97398-366-0 01 1 0612-
34 HANDLE; INSIDE,FRT DOOR
BLACK IDN 		8-97398-365-0 01 1 0612-
35 LINK; DOOR LOCK,INSIDE 8-97178-606-0 01 1 0612-
35 LINK; DOOR LOCK,INSIDE
IDN 		8-97178-605-0 01 1 0612-
39 LINK; INSIDE HANDLE,FRT DOOR 8-94367-324-3 01 1 0612-
39 LINK; INSIDE HANDLE,FRT DOOR
IDN 		8-94367-323-3 01 1 0612-
41 SCREW; INSIDE HANDLE
M6X25 TAPPING 		9-07077-625-0 04 1 0612-
42 SCREW; TAPPING,INSIDE LEVER
M5X14 IDN 		8-94152-495-0 02 1 0612-
44 GROMMET; SCREW,INSIDE HANDLE
(A) IDN 		8-94152-494-0 02 1 0612-
44 GROMMET; SCREW,INSIDE HANDLE
(B) IDN 		8-94481-286-2 04 1 0612-
48 ANTIRATTLER; DOOR LINK
IDN 		8-94342-940-0 04 1 0612-
51 SNAP; FRT DOOR LOCK CONT ROD 8-97041-588-0 02 1 0612-
51 SNAP; FRT DOOR LOCK CONT ROD 8-97041-587-0 02 1 0612-
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 IDN 		8-94155-893-0 04 1 0612-
90 CLIP; DOOR LK LINK
(A) IDN 		8-97079-979-0 01 1 0612-
90 CLIP; DOOR LK LINK
(B) IDN 		8-97080-106-0 01 1 0612-
90 CLIP; DOOR LK LINK
(A) IDN 		8-97079-978-0 01 1 0612-
90 CLIP; DOOR LK LINK
(B) IDN 		8-97080-105-0 01 1 0612-
139 HOLDER; ROD,DOOR HANDLE
BROWN IDN 		8-97037-509-0 01 1 0612-
139 HOLDER; ROD,DOOR HANDLE
WHITE IDN 		8-97037-508-0 01 1 0612-
143 GRIP; ASSIST,FRT DOOR
BLACK IDN 		8-97159-031-0 02 1 0612-
