Isuzu WW
▶
AUV
▶
TBR
▶
51134 - TBR-PICKUP INDONESIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

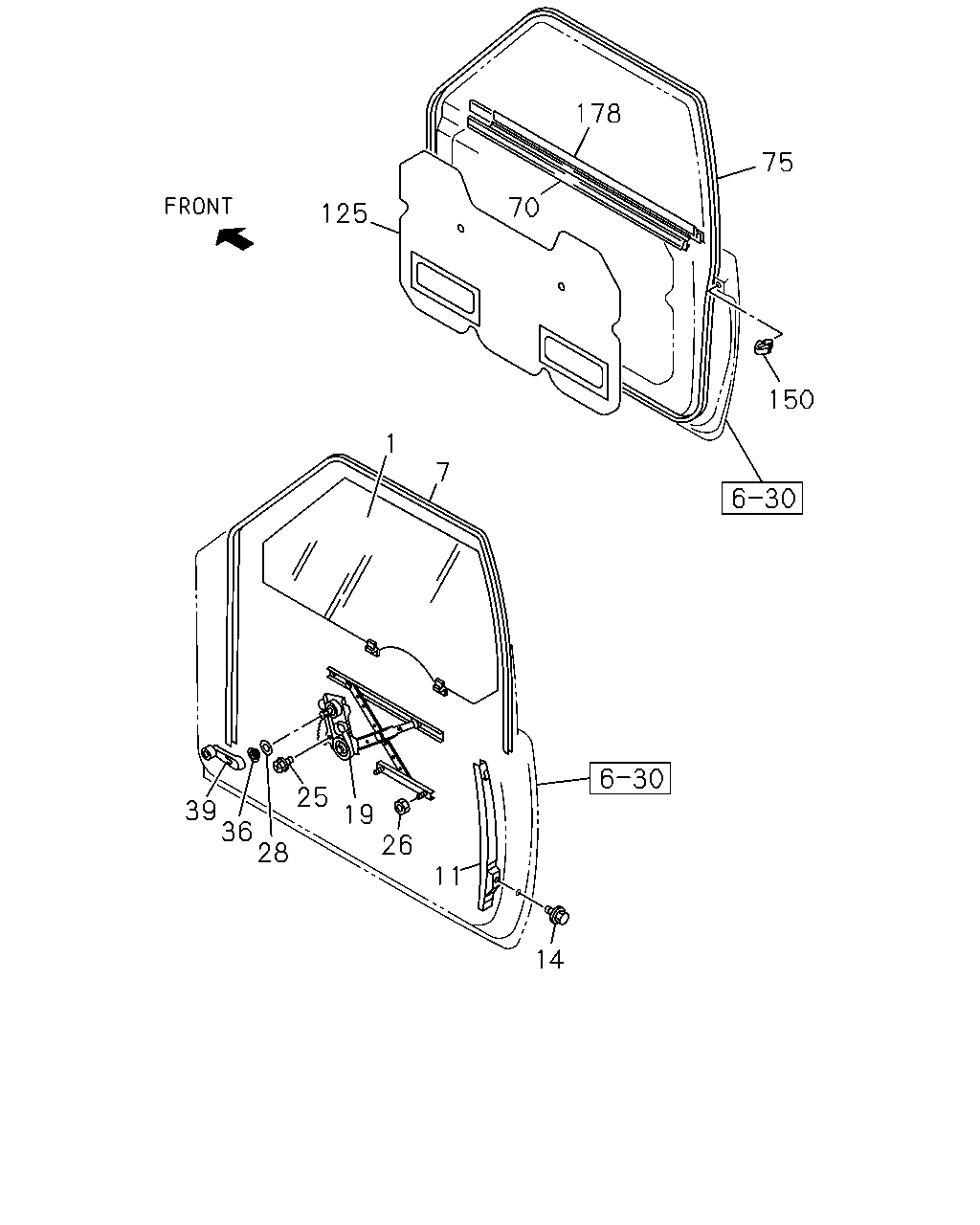

6-31 - FRONT DOOR GLASS AND REGULATOR
▶
6-31 — FRONT DOOR GLASS AND REGULATOR
(#95668) — 21 parça
125
70
178
75
150
1
7
39
36
28
26
11
19
25
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
IDN
8-94366-392-0
01
1
0612-
1
GLASS; FRT DOOR
IDN
8-94366-391-0
01
1
0612-
7
GLASS RUN; FRT DOOR
IDN
8-94366-397-0
02
1
0612-
11
RAIL; RR GUIDE,FRT DOOR
8-94367-329-1
01
1
0612-
11
RAIL; RR GUIDE,FRT DOOR
8-94367-328-1
01
1
0612-
14
BOLT; RR GUIDE RAIL
M6X12 W/PL WASHER
8-94232-078-0
02
1
0612-
19
REGULATOR; WINDOW,FRT DOOR
IDN
8-94385-217-1
01
1
0612-
19
REGULATOR; WINDOW,FRT DOOR
IDN
8-94385-216-1
01
1
0612-
25
BOLT; WINDOW REG
M6X8 IDN
8-94155-893-0
12
1
0612-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91180-106-0
04
1
0612-
28
GASKET; DUST SEAL,WINDOW REG
IDN
8-94106-830-1
02
1
0612-
36
ESCUTCHEON; HANDLE,WINDOW REG
IDN
8-94220-668-1
02
1
0612-
39
HANDLE; WINDOW REG,FRT DOOR
BLACK IDN
8-94403-144-0
02
1
0612-
70
SEAL; WAIST,FRT DOOR INNER
8-94366-404-0
01
1
0612-
70
SEAL; WAIST,FRT DOOR INNER
8-94366-403-0
01
1
0612-
75
WEATHERSTRIP; FRT DOOR
IDN
8-94366-396-2
01
1
0612-
75
WEATHERSTRIP; FRT DOOR
IDN
8-94366-395-2
01
1
0612-
125
SHEET; WATER PROOF,FRT DOOR
IDN
8-94366-398-0
02
1
0612-
150
BUFFER; FRT DOOR
IDN
8-97955-217-0
02
1
0612-
178
SEAL; WAIST OUTER,FRT DOOR
8-94366-402-0
01
1
0612-
178
SEAL; WAIST OUTER,FRT DOOR
8-94366-401-0
01
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
