51134 - TBR-PICKUP INDONESIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

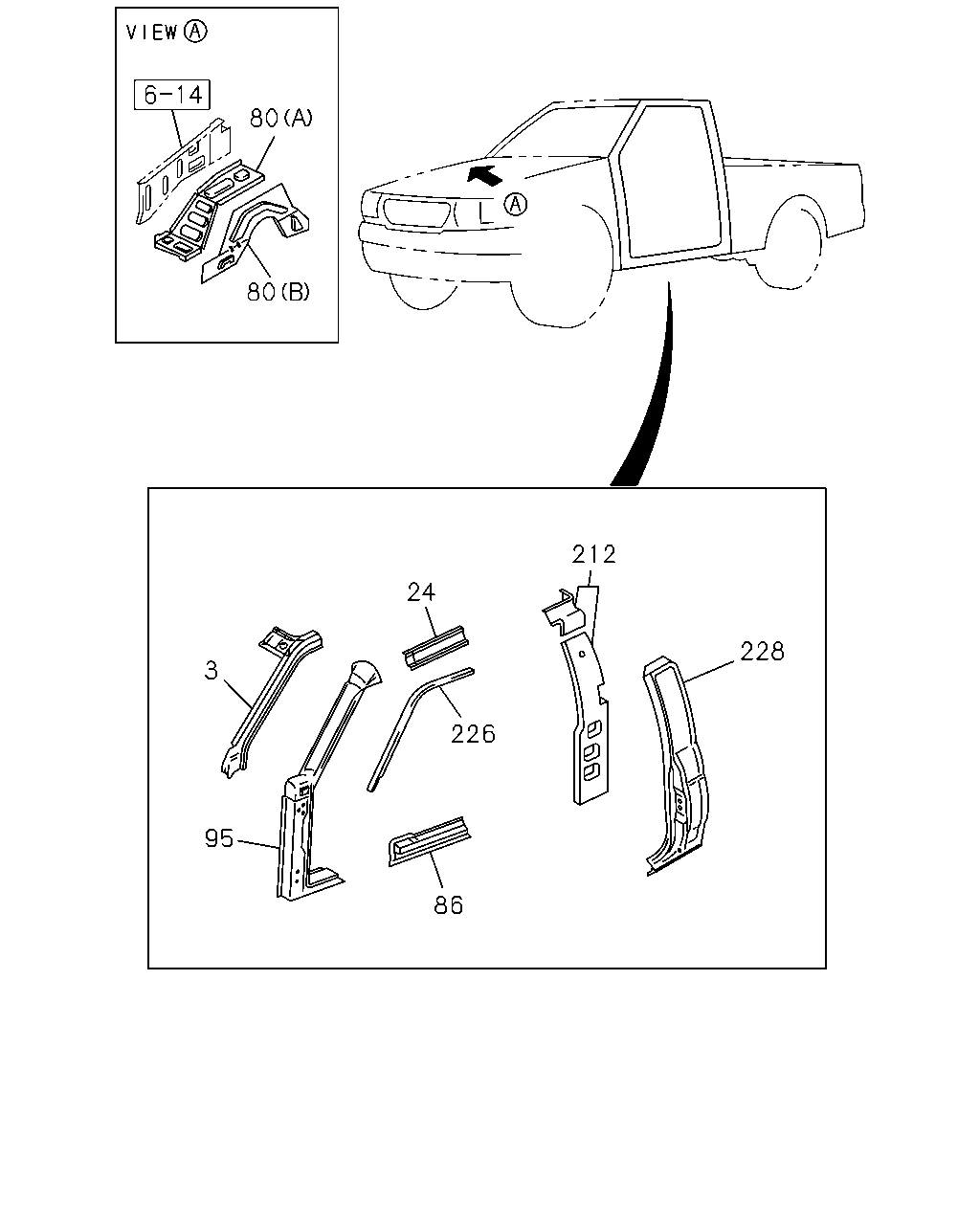

6-20 - SIDE PANEL AND STEP
▶
6-20 — SIDE PANEL AND STEP
(#95666) — 17 parça
80
80
3
95
86
226
24
212
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
PANEL; CLOSING,FRT PILLAR
IDN
8-94366-437-1
01
1
0612-
3
PANEL; CLOSING,FRT PILLAR
IDN
8-94366-436-1
01
1
0612-
24
CLOSING; ROOF RAIL SIDE
IDN
8-94366-441-2
01
1
0612-
80
PANEL; WHEEL HOUSE,INNER
(A) IDN
8-97123-488-2
01
1
0612-
80
PANEL; WHEEL HOUSE,INNER
(B) IDN
8-97123-493-1
01
1
0612-
80
PANEL; WHEEL HOUSE,INNER
(A) IDN
8-97132-002-1
01
1
0612-
80
PANEL; WHEEL HOUSE,INNER
(B) IDN
8-94366-741-1
01
1
0612-
86
PANEL; ROCKER OUTER
IDN
8-97956-570-0
01
1
0612-
86
PANEL; ROCKER OUTER
IDN
8-97956-569-0
01
1
0612-
95
PILLAR; FRT
IDN
8-94381-081-0
01
1
0612-
95
PILLAR; FRT
IDN
8-94381-080-0
01
1
0612-
212
CLOSING; PILLAR
IDN
8-94367-699-0
01
1
0612-
212
CLOSING; PILLAR
IDN
8-94367-698-0
01
1
0612-
226
RAIL; DRIP,FRT PILLAR
8-94366-429-2
01
1
0612-
226
RAIL; DRIP,FRT PILLAR
8-94366-428-2
01
1
0612-
228
PANEL; RR PILLAR OUTER
IDN
8-94385-525-0
01
1
0612-
228
PANEL; RR PILLAR OUTER
IDN
8-94385-524-0
01
1
0612-
