51134 - TBR-PICKUP INDONESIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

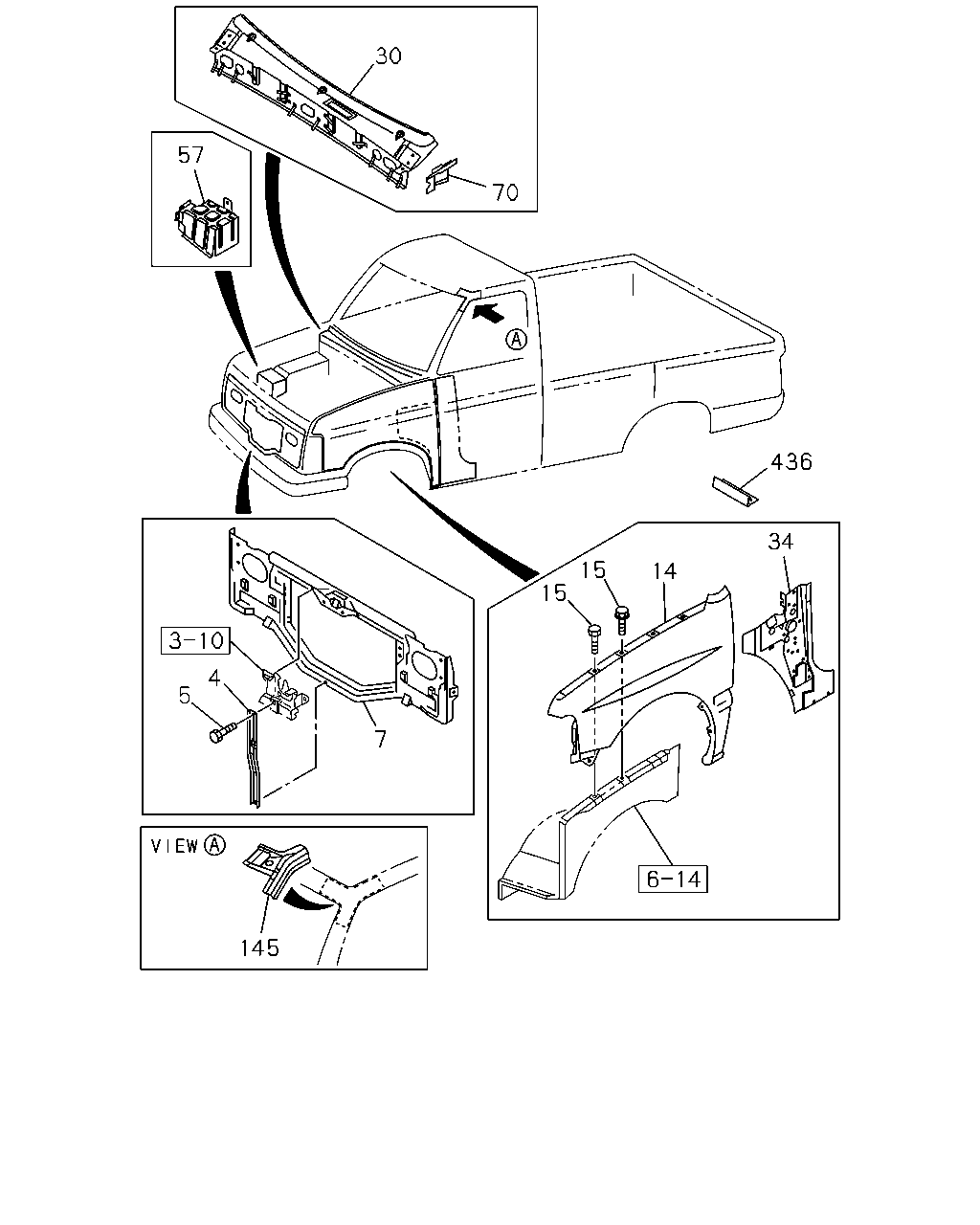

6-05 - FRONT PANEL
▶
6-05 — FRONT PANEL
(#95662) — 16 parça
30
70
57
436
34
14
15
15
7
4
5
145
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
SUPPORT ASM; DEFLECTOR
IDN
8-94366-986-0
01
1
0612-
5
BOLT; SUPPORT
M6X18
8-94408-386-1
02
1
0612-
7
PANEL; DEFLECTOR
IDN
8-97123-618-1
01
1
0612-
14
FENDER; FRT
IDN
8-94385-306-0
01
1
0612-
14
FENDER; FRT
IDN
8-94385-305-0
01
1
0612-
15
BOLT; FENDER
M6X16 W/PL WASHER IDN
8-94204-636-0
16
1
0612-
15
BOLT; FENDER
M6X14 FLANGE
8-94327-380-0
02
1
0612-
30
PANEL; COWL UPR
IDN
8-97123-480-0
01
1
0612-
34
PANEL; DASH SIDE
IDN
8-97955-164-1
01
1
0612-
34
PANEL; DASH SIDE
IDN
8-97955-163-1
01
1
0612-
57
TRAY; BATTERY
IDN
8-97956-566-0
01
1
0612-
70
PANEL ASM; COWL SIDE
IDN
8-94366-450-1
01
1
0612-
70
PANEL ASM; COWL SIDE
IDN
8-94366-449-1
01
1
0612-
145
GUSSET; FRT PILLAR,UPR
IDN
8-97037-367-0
01
1
0612-
145
GUSSET; FRT PILLAR,UPR
IDN
8-97037-366-0
01
1
0612-
436
JOINT; DRIP RAIL
IDN
8-94377-403-0
04
1
0612-
