Isuzu WW
▶
AUV
▶
TBR
▶
51134 - TBR-PICKUP INDONESIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

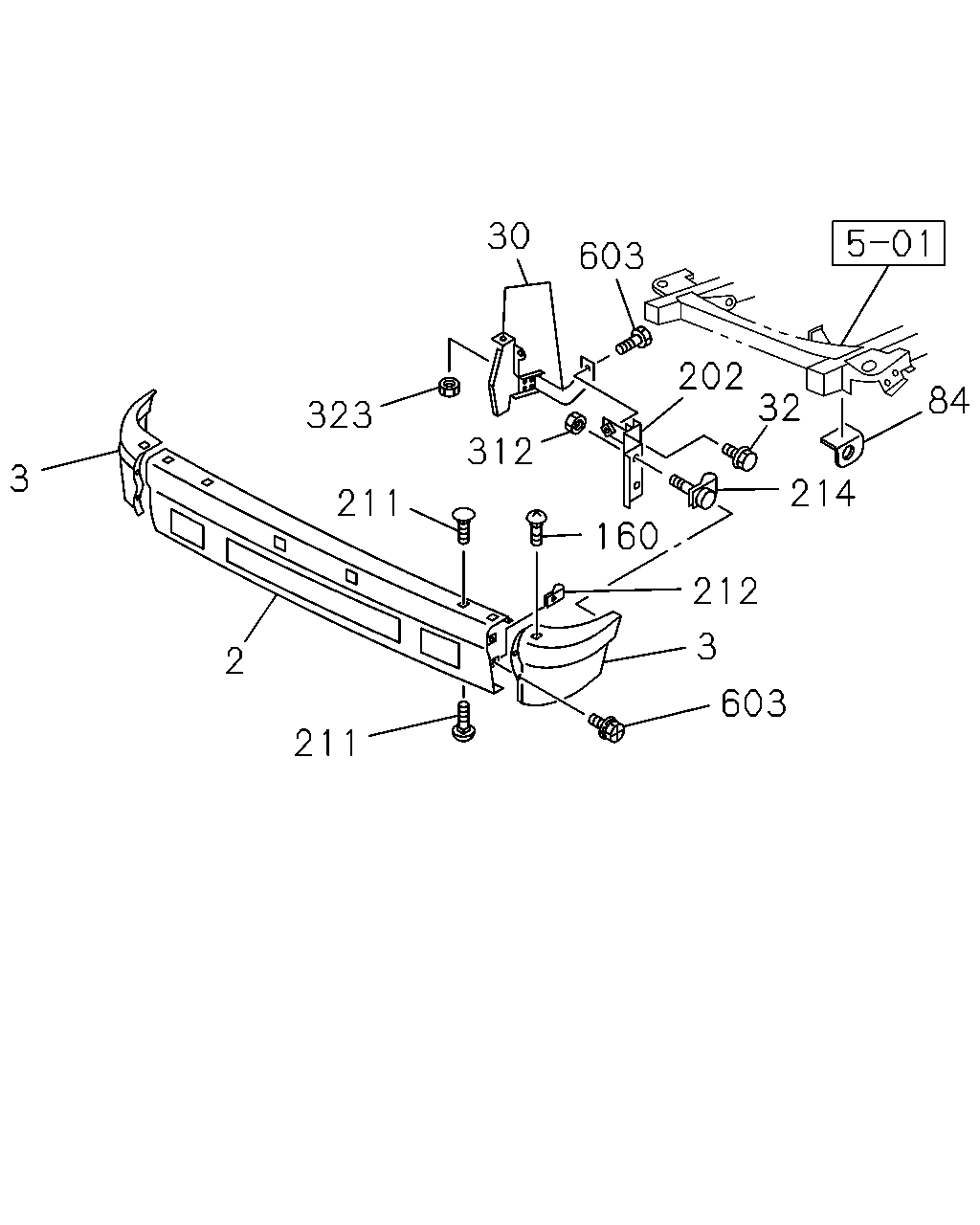

6-01 — FRONT BUMPER
(#95660) — 17 parça
84
214
32
202
603
30
323
211
312
160
212
3
603
211
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BUMPER; FRT,CENTER
IDN
8-97955-031-0
01
1
0612-
3
BUMPER; FRT,SIDE
IDN
8-97127-296-0
01
1
0612-
3
BUMPER; FRT,SIDE
IDN
8-97127-295-0
01
1
0612-
30
BRACKET; FRT BUMPER
IDN
8-97955-047-0
01
1
0612-
30
BRACKET; FRT BUMPER
IDN
8-97955-046-0
01
1
0612-
32
BOLT; BRKT,BUMPER
M12X30 FLANGE
8-94475-424-0
04
1
0612-
84
HOOK
IDN
8-97015-038-0
01
1
0612-
160
SCREW
M6X10
8-97179-642-0
04
1
0612-
202
BRACKET; BUMPER SIDE
IDN
8-97127-208-1
01
1
0612-
202
BRACKET; BUMPER SIDE
IDN
8-97127-207-1
01
1
0612-
211
BOLT; NECK
M8X20
8-97110-408-0
04
1
0612-
212
CLIP; BUMPER SUPPORT
IDN
8-94471-330-2
04
1
0612-
214
CLIP; SUPPORT TO BUMPER
8-97806-845-2
04
1
0612-
312
NUT; BRKT
M6 FLANGE
0-91180-106-0
04
1
0612-
323
NUT; FLANGE
M8 FLANGE
5-09440-005-0
04
1
0612-0805
323
NUT; FLANGE
M8 FLANGE
8-97581-233-0
04
1
0806-
603
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
06
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
