Isuzu WW
▶
AUV
▶
TBR
▶
51134 - TBR-PICKUP INDONESIA
▶
5 - Frame, Cab Mounting
▶

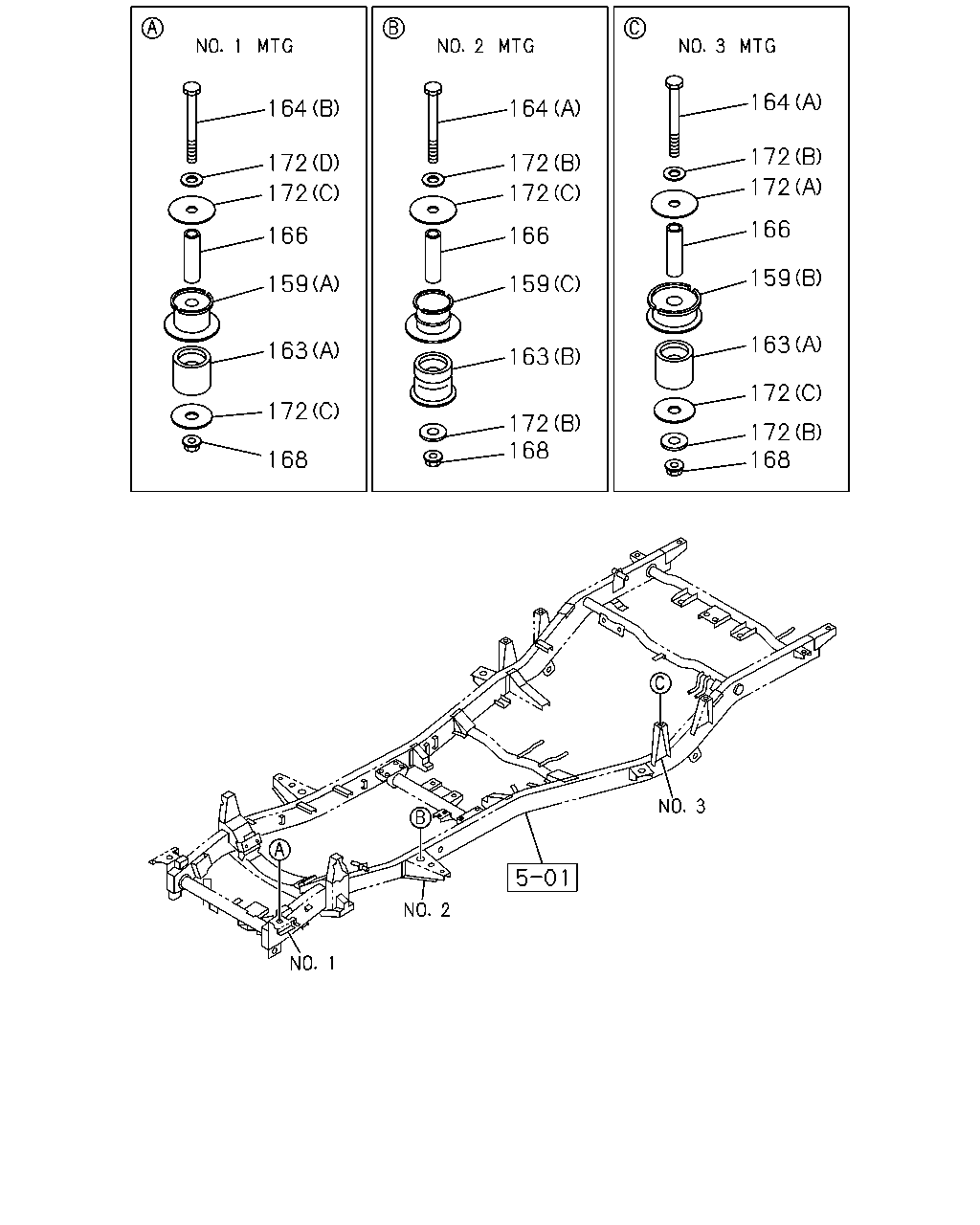

5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#95656) — 13 parça
164
172
172
166
159
163
172
168
164
172
172
166
159
163
172
168
164
172
172
166
159
163
172
172
168
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
159
RUBBER; CUSHION,CAB MTG
(A) IDN
8-94368-398-0
02
1
0612-
159
RUBBER; CUSHION,CAB MTG
(B) IDN
8-94368-400-0
02
1
0612-
159
RUBBER; CUSHION,CAB MTG
(C) IDN
8-97027-925-0
02
1
0612-
163
RUBBER; CUSHION,BODY MTG,REBOUND
(A) IDN
8-94368-399-0
04
1
0612-
163
RUBBER; CUSHION,BODY MTG,REBOUND
(B) IDN
8-97027-926-0
02
1
0612-
164
BOLT; CUSHION RUBBER,CAB MTG
(A) M10X115
8-94121-025-2
04
1
0612-
164
BOLT; CUSHION RUBBER,CAB MTG
(B) M10X110
8-94223-169-0
02
1
0612-
166
PIECE; DIST,BODY MTG RUBBER
L=70 IDN
8-97562-253-0
06
1
0612-
168
NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE
0-91180-210-0
06
1
0612-
172
WASHER; BODY MTG RUBBER
(D) ID=10.5 OD=32
0-91614-810-0
02
1
0612-
172
WASHER; BODY MTG RUBBER
(C) ID=11 OD=48 T=2.9 IDN
8-94223-170-0
08
1
0612-
172
WASHER; BODY MTG RUBBER
(B) OD=32 T=6.0 IDN
8-94416-693-0
08
1
0612-
172
WASHER; BODY MTG RUBBER
(A) ID=11 OD=62 T=2.9 IDN
8-97037-993-0
02
1
0612-
