5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

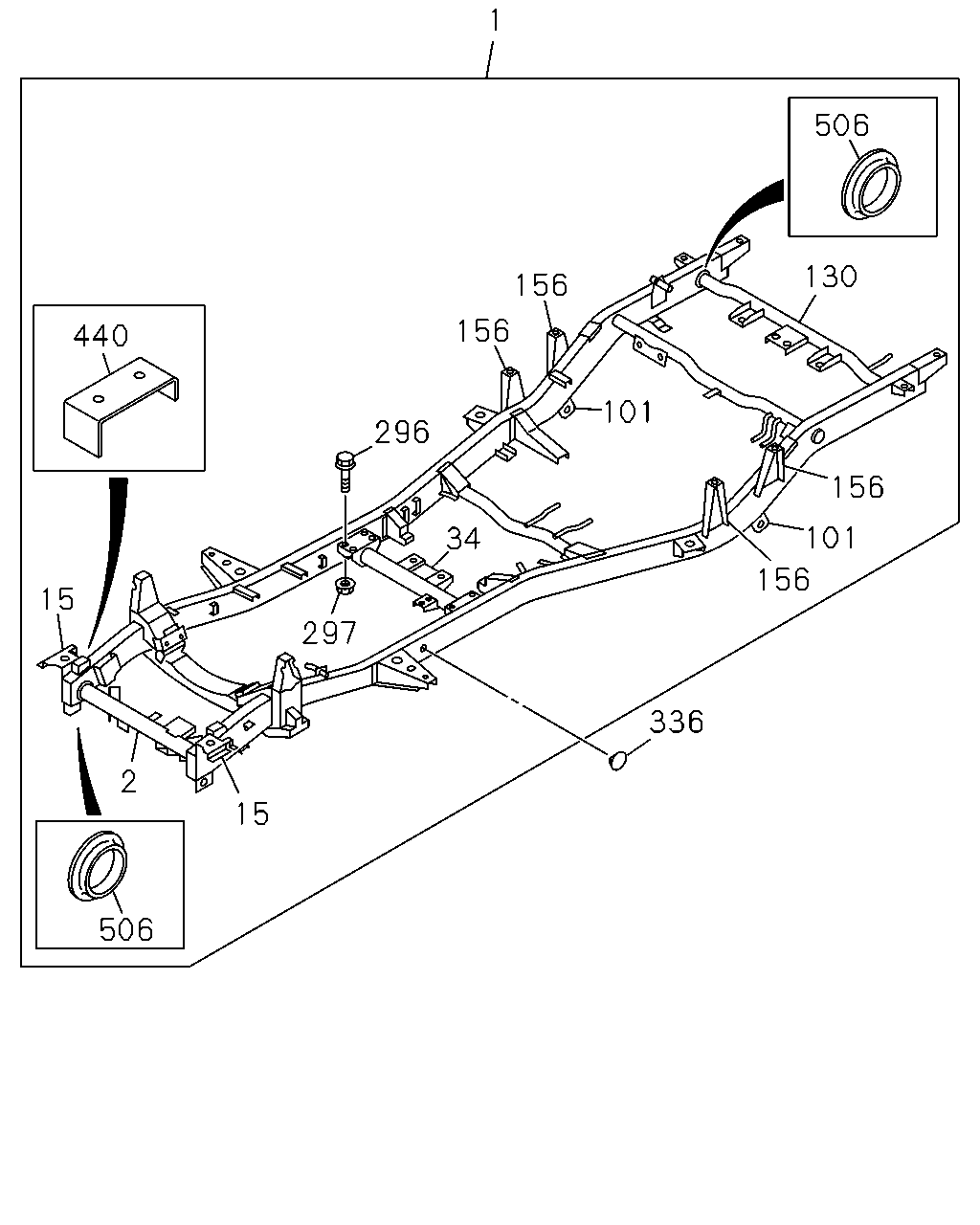

5-01 — FRAME AND OTHER PARTS
(#95655) — 14 parça
1
506
130
156
156
296
101
156
101
156
336
15
297
34
2
15
506
440
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FRAME ASM
IDN
8-97562-640-0
01
1
0612-
2
MEMBER; CROSS,1ST
IDN
8-97133-840-3
01
1
0612-
15
BRACKET; BODY MTG,FRT
IDN
8-94366-652-1
01
1
0612-
15
BRACKET; BODY MTG,FRT
IDN
8-94366-651-1
01
1
0612-
34
MEMBER; CROSS,3RD
IDN
8-97133-841-3
01
1
0612-
101
BRACKET; RR SPR,FRT
IDN
8-94370-496-0
02
1
0612-
130
MEMBER; CROSS,END
IDN
8-97955-168-0
01
1
0612-
156
BRACKET; RR BODY MTG
IDN
8-94370-517-0
02
1
0612-
156
BRACKET; RR BODY MTG
IDN
8-94370-516-0
02
1
0612-
296
BOLT; 3RD C/MBR
M10X25 FLANGE
0-28251-025-0
08
1
0612-
297
NUT; 3RD C/MBR
M10 FLANGE
0-91180-110-0
08
1
0612-
336
PLUG; HOLE
OD=40 BLACK
8-97806-918-0
02
1
0612-
440
BRACKET; HOSE
IDN
8-94370-697-0
02
1
0612-
506
REINFORCEMENT; C/MBR
IDN
8-94372-034-0
04
1
0612-
