51134 - TBR-PICKUP INDONESIA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

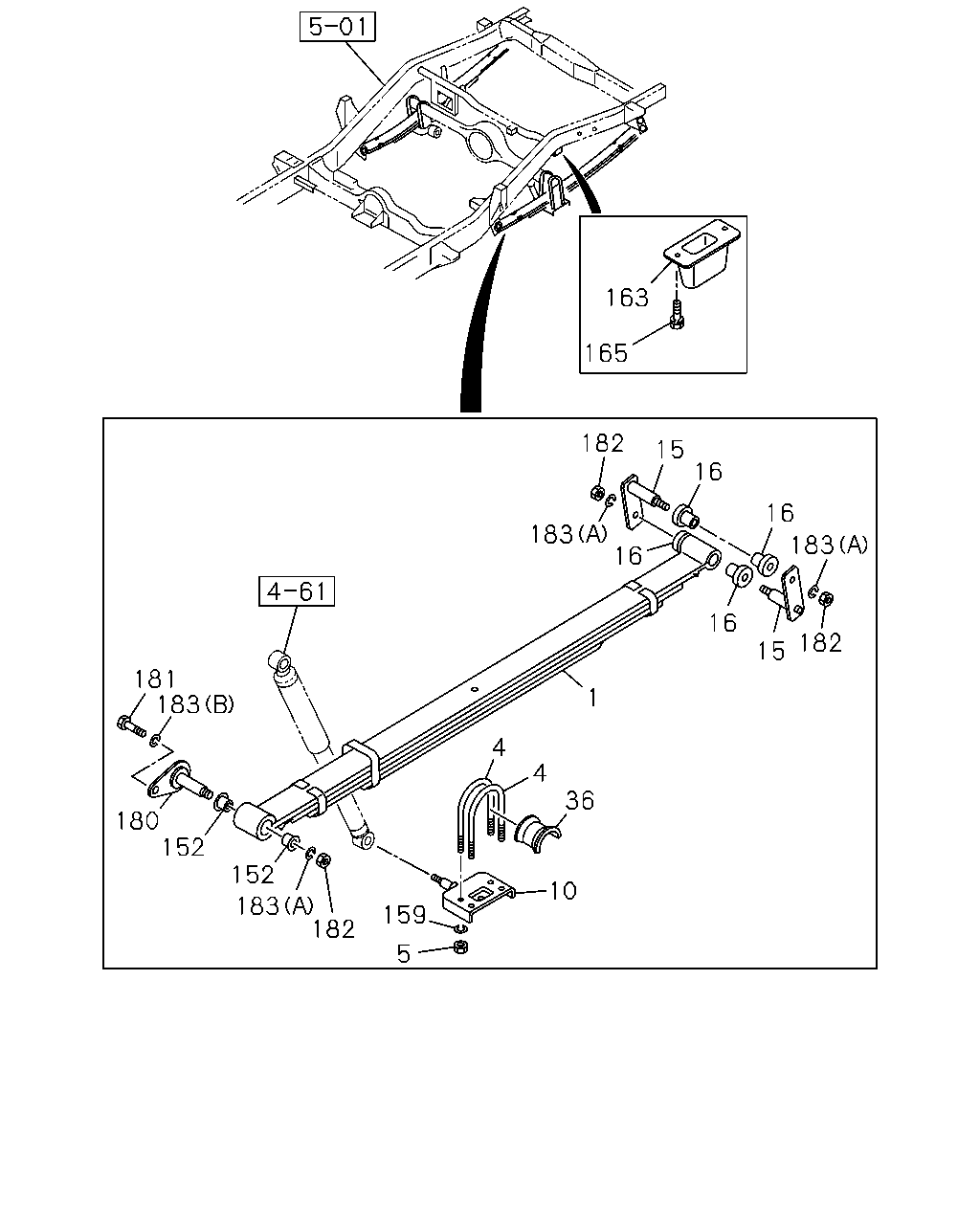

4-60 — REAR SUSPENSION
(#95651) — 16 parça
181
183
180
152
152
183
182
5
159
10
36
4
4
1
15
182
16
16
183
183
16
16
15
182
165
163
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. IDN
8-94368-268-1
02
1
0612-
4
U-BOLT; RR SPR
IDN
8-94223-188-2
04
1
0612-
5
NUT; U-BOLT,RR SPR
M12
0-91110-512-0
08
1
0612-
10
CLAMP; LWR,RR SPR
8-94155-451-1
02
1
0612-
15
SHACKLE; RR SPR
IDN
8-97562-633-0
04
1
0612-
16
BUSHING; SHACKLE,RR SPR
8-94234-319-0
08
1
0612-
36
SEAT; HELPER RUBBER,RR SPR
5-51376-001-0
02
1
0612-
152
BUSHING; FRT EYE,RR SPRING
8-94223-168-0
04
1
0612-
159
WASHER; LK,RR SPR
ID=12.2
0-91510-612-0
08
1
0612-
163
RUBBER; HELPER,RR SPR
8-94223-166-2
02
1
0612-
165
BOLT; HELPER RUBBER
M10X20 W/LK WASHER IDN
0-50541-020-0
04
1
0612-
180
PIN; RR SPR
8-94223-350-2
02
1
0612-
181
BOLT; SPR & SHACKLE
M8X20
0-20850-820-0
02
1
0612-
182
NUT; PIN,RR SPR
M14
0-91110-514-0
06
1
0612-
183
WASHER; LK,PIN,RR SPR
(B) ID=8.2
0-91510-508-0
02
1
0612-
183
WASHER; LK,PIN,RR SPR
(A) ID=14.2
0-91510-614-0
06
1
0612-
