◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51134 - TBR-PICKUP INDONESIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#95650) — 58 parça

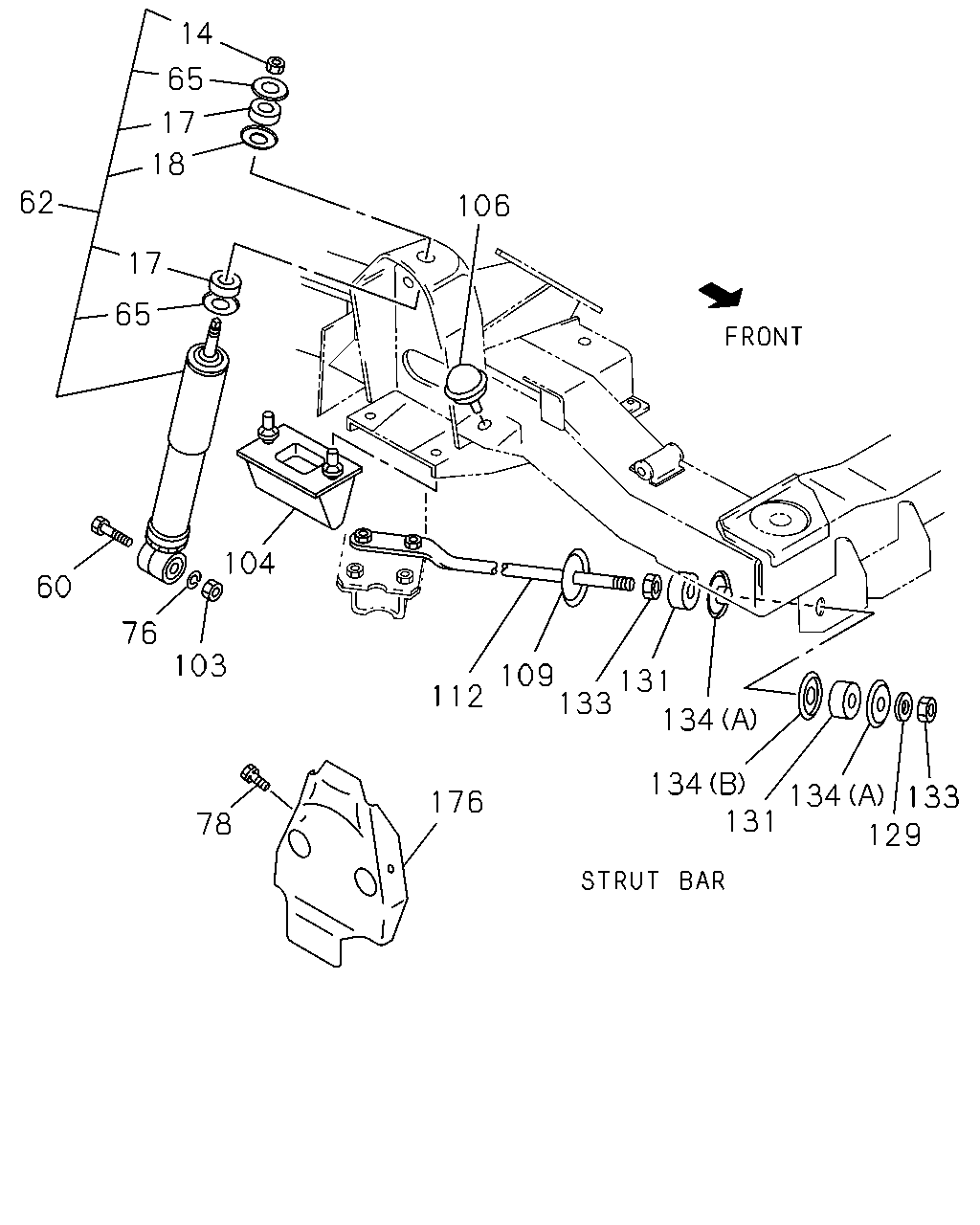

çizim 288488
62 14 65 17 18 17 65 60 76 104 103 78 112 176 109 133 131 134 134 131 134 133 129 106
BalonParca AdiParca NoAdetTipApplied Date
14 NUT; S/ABS,UPR
M10 		9-09110-410-0 02 1 0612-
17 BUSHING; RUBBER,S/ABS
KAYABA IDN 		9-51631-055-0 04 1 0612-
18 WASHER; CENTERING,S/ABS
KAYABA IDN 		8-94467-498-0 02 1 0612-
60 BOLT; S/ABS TO LWR LINK
M12X50 		0-10861-250-0 02 1 0612-
62 ABSORBER ASM; SHOCK,FRT
IDN 		8-97020-817-0 02 1 0612-
65 WASHER; S/ABS
ID=10.5 OD=38 IDN 		9-51631-062-0 04 1 0612-
76 WASHER; LK,S/ABS TO LWR LINK
ID=12.2 		0-91510-512-0 02 1 0612-
78 BOLT; DUST COVER,S/ABS
M6X14 W/LK WASHER 		0-50040-614-0 04 1 0612-0909
78 BOLT; DUST COVER,S/ABS
M6X14 W/LK WASHER 		0-50540-614-0 04 1 0910-
103 NUT; S/ABS TO LWR LINK
M12 		0-91111-512-0 02 1 0612-
104 RUBBER; BUMPER,STRUT
IDN 		8-94366-120-0 02 1 0612-
106 RUBBER; REBOUND,STRUT
IDN 		8-97362-961-0 02 1 0612-
109 TUBE; DIST,STRUT BAR 8-94103-247-0 02 1 0612-
112 BAR; STRUT 8-94223-672-2 02 1 0612-
129 WASHER; LK,STRUT BAR
ID=14.2 		0-91510-614-0 02 1 0612-
131 RUBBER; CUSHION,STRUT BAR 8-94223-699-0 04 1 0612-
133 NUT; STRUT BAR
M14 		0-91110-514-0 04 1 0612-
134 WASHER; STRUT BAR
(A) 		8-94103-248-0 04 1 0612-0704
134 WASHER; STRUT BAR
(A) 		8-98079-312-0 04 1 0705-
134 WASHER; STRUT BAR
(B) 		8-94223-697-1 02 1 0612-
176 COVER; DUST,S/ABS
IDN 		8-94230-350-1 02 1 0612-

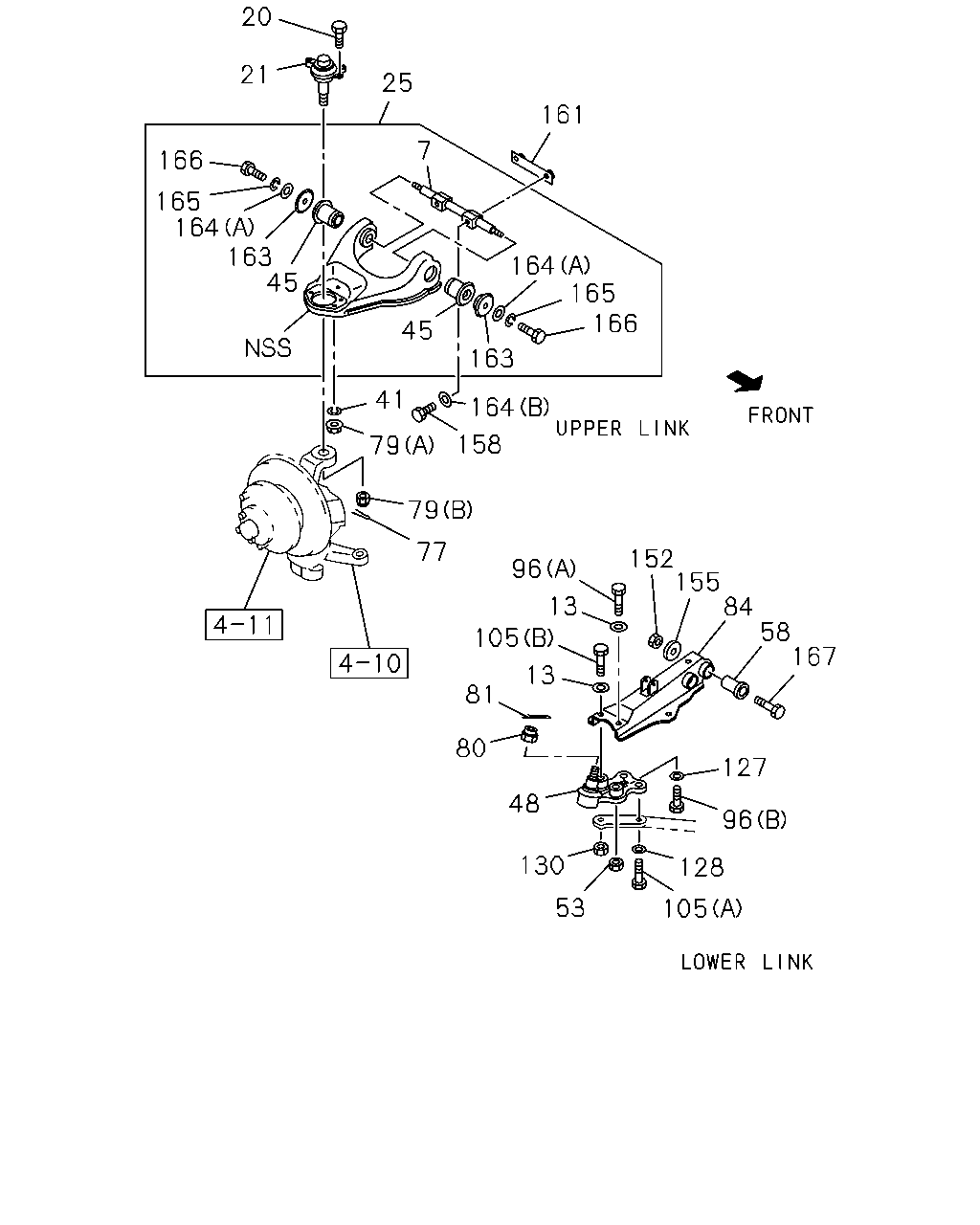

çizim 289526
20 21 25 161 7 166 165 164 163 45 45 163 164 165 166 164 41 79 158 79 77 96 13 105 13 81 80 48 130 53 105 128 96 127 167 58 84 155 152
BalonParca AdiParca NoAdetTipApplied Date
7 PIN; FULCRUM,UPR LINK 8-94225-581-3 02 1 0612-
13 WASHER; LK,LWR LINK
ID=10.2 IDN 		0-91510-610-0 02 1 0612-
20 BOLT; UPR LINK END TO UPR LINK 8-94478-727-0 08 1 0612-
21 JOINT ASM; BALL,UPR CONT ARM 8-94459-453-3 02 1 0612-
25 ARM; UPR CONT 8-94366-609-2 01 1 0612-
25 ARM; UPR CONT 8-94366-608-2 01 1 0612-
41 WASHER; LK,UPR LINK END TO UPR LINK
ID=8.2 		0-91510-808-0 08 1 0612-
45 BUSHING; UPR LINK,FRT 8-94408-840-3 04 1 0612-
48 JOINT ASM; BALL,LWR CONT ARM 8-94365-165-2 01 1 0612-
48 JOINT ASM; BALL,LWR CONT ARM 8-94365-164-2 01 1 0612-
53 NUT; LWR LINK
M10 FLANGE 		8-94242-425-0 02 1 0612-
58 BUSHING; LWR LINK 8-94223-366-1 02 1 0612-
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=25 		0-81123-025-0 02 1 0612-
79 NUT; UPR LINK END TO KNUCKLE
(A) M8 FLANGE 		5-09440-010-0 08 1 0612-
79 NUT; UPR LINK END TO KNUCKLE
(B) M14 SLOTTED 		8-94124-556-0 02 1 0612-0805
79 NUT; UPR LINK END TO KNUCKLE
(B) M14 SLOTTED 		8-97245-624-0 02 1 0806-
80 NUT; LWR LINK END TO KNUCKLE
M18 SLOTTED 		0-91116-518-0 02 1 0612-
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=3.7 L=30 		0-81124-030-0 02 1 0612-
84 ARM; LWR CONT 8-94223-222-3 01 1 0612-
84 ARM; LWR CONT 8-94223-221-3 01 1 0612-
96 BOLT; LWR LINK
(A) M10X50 		0-10956-050-0 02 1 0612-
96 BOLT; LWR LINK
(B) M10X20 		0-20951-020-0 02 1 0612-
105 BOLT; STRUT BAR TO LWR LINK
(A) M10X35 		8-94237-412-0 02 1 0612-
105 BOLT; STRUT BAR TO LWR LINK
(B) M10X65 		9-01066-065-0 02 1 0612-
127 WASHER; LK,STRUT BAR TO LWR LINK
ID=10.2 IDN 		0-91510-610-0 02 1 0612-
128 WASHER; PL,STRUT
ID=10.5 OD=26 		0-91614-710-0 02 1 0612-
130 NUT; STRUT BAR TO LWR LINK
M10 FLANGE 		8-94242-425-0 02 1 0612-
152 NUT; LWR LINK TO FRT C/MBR
M14 		0-91110-514-0 02 1 0612-
155 WASHER; LK,UPR LINK TO FRT C/MBR
ID=14.2 		0-91510-514-0 02 1 0612-
158 BOLT; UPR LINK TO FRAME 5-09000-226-1 04 1 0612-
161 NUT ASM; UPR LINK TO FRAME 8-98020-304-0 02 1 0612-
163 PLATE; FULCRUM PIN,UPR LINK 8-94223-217-1 04 1 0612-
164 WASHER; PL,FULCRUM PIN
(A) ID=12.5 OD=32 IDN 		0-91614-712-0 04 1 0612-
164 WASHER; PL,FULCRUM PIN
(B) ID=12.5 		8-94224-842-0 04 1 0612-
165 WASHER; LK,FULCRUM PIN
ID=12.2 		0-91510-612-0 04 1 0612-
166 BOLT; FULCRUM PIN TO UPR LINK
M12X28 		9-92061-228-0 04 1 0612-
167 BOLT; LWR LINK TO FRT C/MBR
M14X90 		0-10856-490-0 02 1 0612-
