4-40 — STEERING UNIT (#95648) — 10 parça

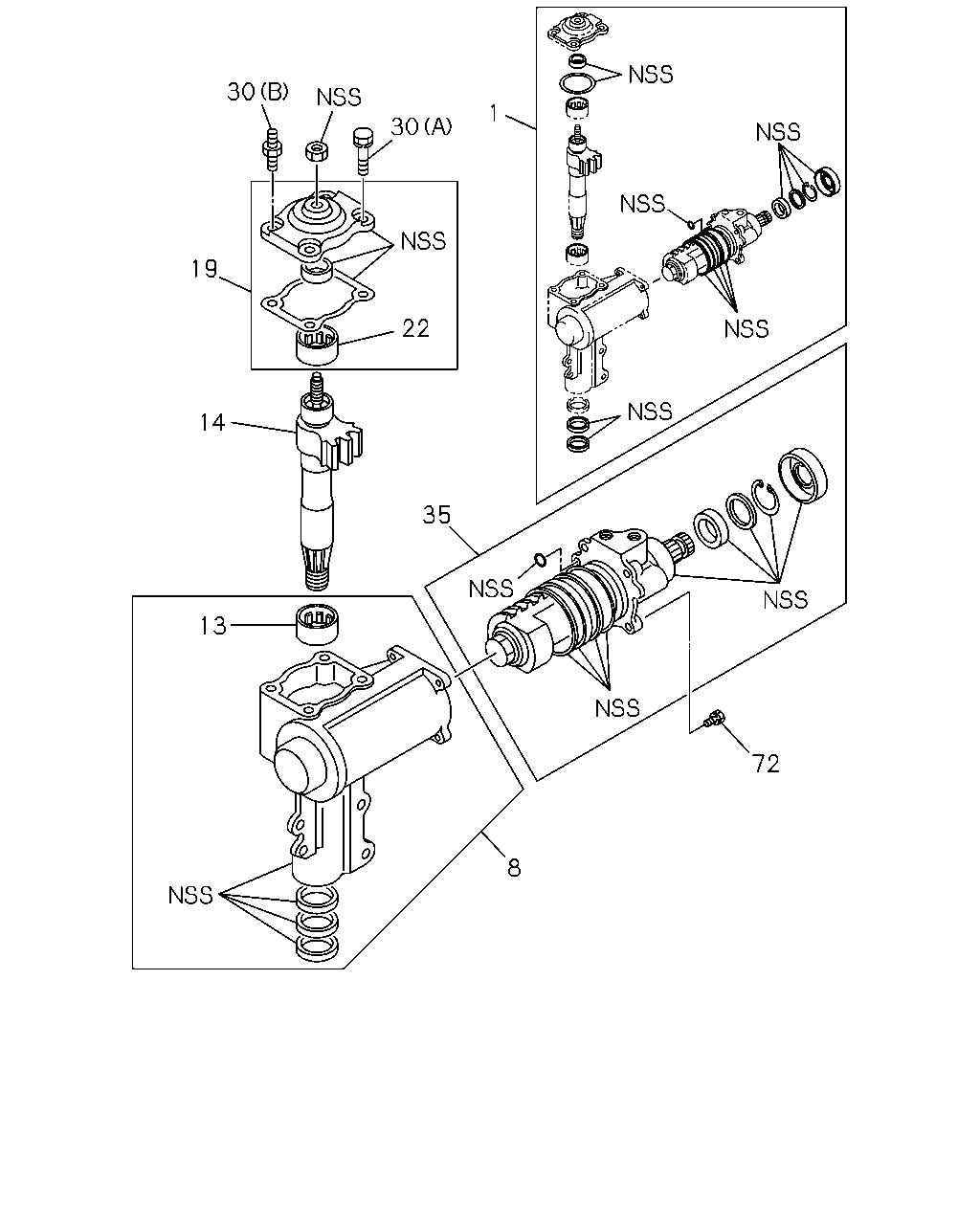

çizim 288476
30 30 19 22 1 14 35 13 8 72
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-94369-445-7 		8-97023-690-2 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-94369-445-7 		8-94466-392-1 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 8-94369-445-7 		8-94240-933-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-94369-445-7 		8-97023-692-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-94369-445-7 		8-94240-922-1 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-94369-445-7 		8-94240-939-0 01 1 -
30 BOLT; COVER STRG UNIT
(B), M10X14 M10X22 ASM PART: A = 8-94369-445-7 		8-94173-741-0 02 1 -
30 BOLT; COVER STRG UNIT
(A), M10X22 ASM PART: A = 8-94369-445-7 		9-01911-022-0 02 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-94369-445-7 		8-94116-283-4 01 1 -
72 BOLT; HSG FIX STRG UNIT
M10X22 ASM PART: A = 8-94369-445-7 		9-01911-022-0 04 1 -
