1 |

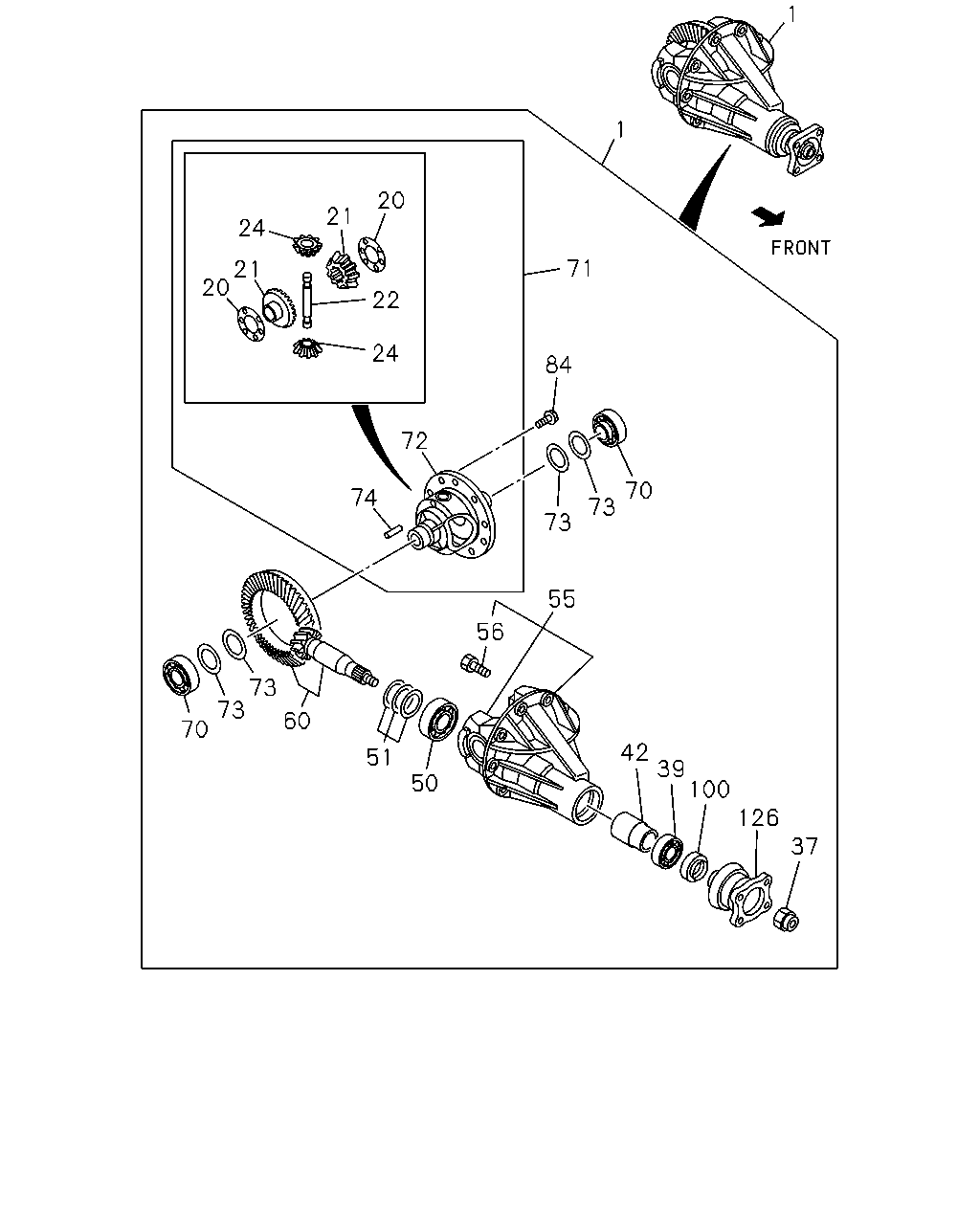

DRIVE ASM; FINAL,RR
41/11
IDN
|
8-97122-981-0 |
01 |
1 |
0612-0807 |
| |
1 |
DRIVE ASM; FINAL,RR
41/11
IDN
|
8-98074-854-0 |
01 |
1 |
0808- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=1.00
|
5-41562-005-1 |
02 |
1 |
0612- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=1.05
|
5-41562-006-1 |
02 |
1 |
0612- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=1.10
|
5-41562-007-1 |
02 |
1 |
0612- |
| |
21 |
GEAR; SIDE,DIFF
Z=17
|
8-97079-519-1 |
02 |
1 |
0612- |
| |
22 |
PIN; CROSS,DIFF PINION
IDN
|
9-41521-044-1 |
01 |
1 |
0612- |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
8-97079-518-0 |
02 |
1 |
0612- |
| |
37 |
NUT; DRIVING PINION
M18 LOCK NUT
|
8-94376-262-0 |
01 |
1 |
0612- |
| |
39 |
BEARING; FINAL PINION
NSK
|
8-94472-099-0 |
01 |
1 |
0612- |
| |
39 |
BEARING; FINAL PINION
KOYO
|
8-94472-100-1 |
01 |
1 |
0612- |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
|
8-94472-118-0 |
01 |
1 |
0612- |
| |
50 |
BEARING; FINAL PINION
NSK
|
9-00093-621-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.18
|
9-41519-153-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.20
|
9-41519-154-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.22
|
9-41519-155-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.24
|
9-41519-156-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.26
|
9-41519-157-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.28
|
9-41519-158-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.30
|
9-41519-159-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.32
|
9-41519-160-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.34
|
9-41519-161-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.36
|
9-41519-162-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.38
|
9-41519-163-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.40
|
9-41519-164-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.42
|
9-41519-165-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.44
|
9-41519-166-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.46
|
9-41519-167-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.48
|
9-41519-168-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.50
|
9-41519-169-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.52
|
9-41519-170-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.54
|
9-41519-171-1 |
01 |
1 |
0612- |
| |
51 |
SHIM; PINION,FINAL DRIVE
T=2.56
|
9-41519-172-1 |
01 |
1 |
0612- |
| |
55 |
CARRIER; DIFF
|
5-41110-014-3 |
01 |
1 |
0612- |
| |
56 |
BOLT; BRG CAP
M12X62
|
8-94376-322-0 |
04 |
1 |
0612- |
| |
60 |
GEAR SET; FINAL DRIVE,RR
41/11
|
8-97065-663-0 |
01 |
1 |
0612-0807 |
| |
60 |
GEAR SET; FINAL DRIVE,RR
41/11
|
8-97374-180-1 |
01 |
1 |
0808- |
| |
70 |
BEARING; DIFF CAGE
NSK
|
9-00093-074-1 |
02 |
1 |
0612- |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
IDN
|
8-97079-517-0 |
01 |
1 |
0612- |
| |
72 |
CAGE; DIFF
IDN
|
8-97038-515-1 |
01 |
1 |
0612- |
| |
73 |
SHIM; DIFF SIDE BRG
T=0.10
|
8-97130-386-0 |
AR |
1 |
0612- |
| |
73 |
SHIM; DIFF SIDE BRG
T=0.50
|
8-97130-387-0 |
AR |
1 |
0612- |
| |
73 |
SHIM; DIFF SIDE BRG
T=0.24
|
9-41519-109-0 |
AR |
1 |
0612- |
| |
73 |
SHIM; DIFF SIDE BRG
T=0.15
|
9-41519-111-0 |
AR |
1 |
0612- |
| |
74 |
PIN; LK,CROSS PIN
OD=5 L=35
|
9-09878-096-0 |
01 |
1 |
0612- |
| |
84 |
BOLT; FINAL DRIVE GEAR
M10X17
|
8-97038-065-0 |
10 |
1 |
0612- |
| |
100 |
SEAL; OIL,FINAL PINION
NOK
|
8-97146-826-0 |
01 |
1 |
0612- |
| |
100 |
SEAL; OIL,FINAL PINION
TKK
|
8-97207-784-0 |
01 |
1 |
0612- |
| |
126 |
COUPLING; DRIVING PINION
IDN
|
8-94426-786-7 |
01 |
1 |
0612- |
