51134 - TBR-PICKUP INDONESIA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

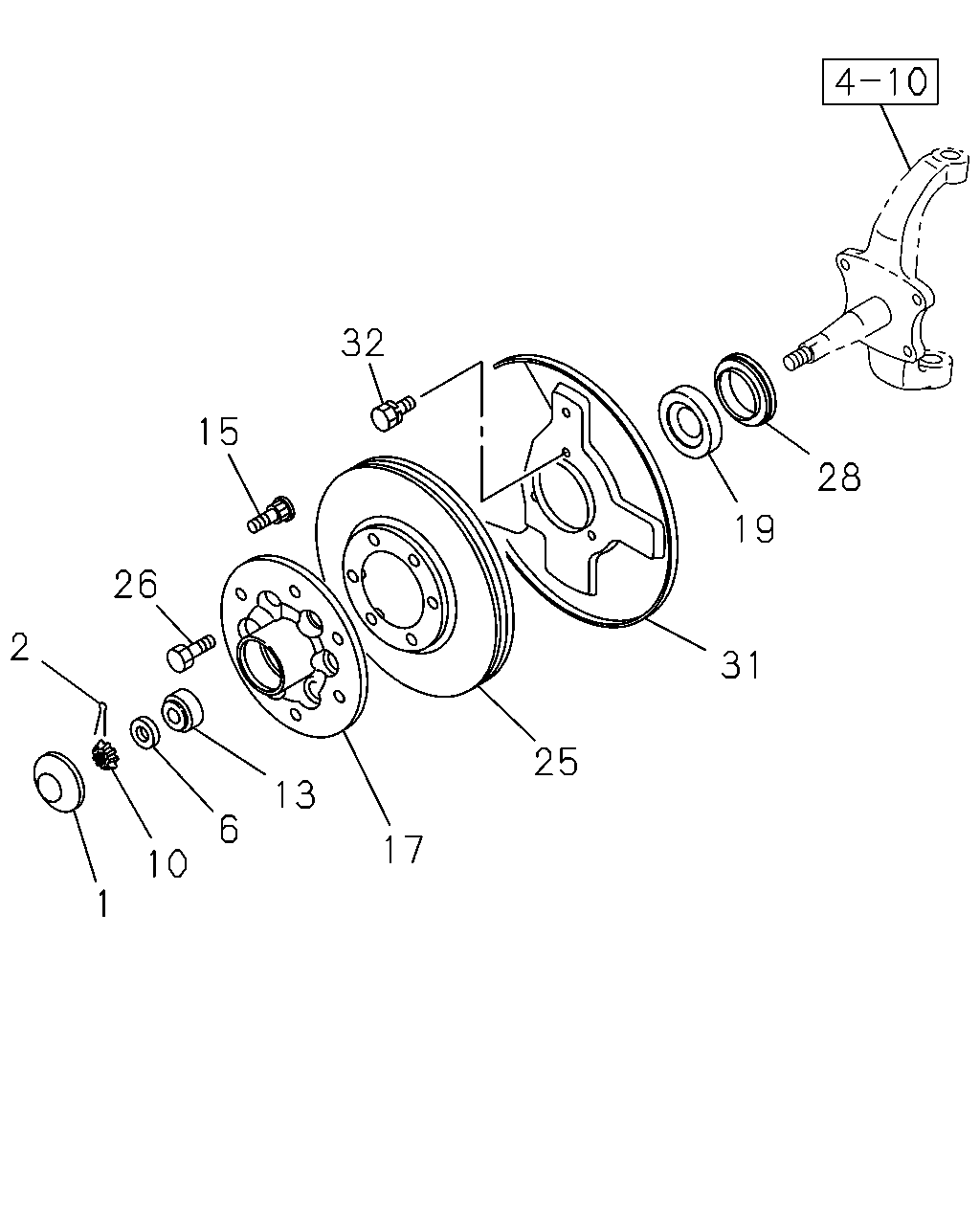

4-11 — FRONT HUB AND DRUM OR ROTOR
(#95640) — 16 parça
1
10
6
13
17
25
31
19
28
15
2
26
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
8-06696-899-0
02
1
0612-
2
PIN; SPLIT,HUB TO AXLE SHAFT
OD=3.7 L=25
0-81124-025-0
02
1
0612-
6
WASHER; LK,FRT HUB
8-94151-759-0
02
1
0612-
10
NUT; FRT HUB BRG
8-08967-950-3
02
1
0612-
13
BEARING; HUB OUTER,FRT AXLE
IDN
9-00093-603-1
02
1
0612-
15
PIN; WHEEL,FRT AXLE
M12X37.5
8-97213-871-0
08
1
0612-
17
HUB; FRT AXLE
IDN
8-94362-961-0
02
1
0612-
19
BEARING; HUB INNER,FRT AXLE
NSK IDN
8-94245-139-0
02
1
0612-
19
BEARING; HUB INNER,FRT AXLE
NTN IDN
8-94245-153-0
02
1
0612-
25
ROTOR; DISC BRK,FRT
IDN
8-97012-574-1
02
1
0612-
26
BOLT; BRK,DISC TO HUB
8-97019-655-0
08
1
0612-
28
SEAL; OIL,FRT HUB
8-94326-440-0
02
1
0612-
31
COVER; DUST,FRT BRAKE
8-94367-555-0
01
1
0612-
31
COVER; DUST,FRT BRAKE
8-94367-554-0
01
1
0612-
32
BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER
8-97025-916-0
06
1
0612-0805
32
BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER
8-98029-928-0
06
1
0806-
