4-10 — FRONT AXLE (#9564) — 220 parça

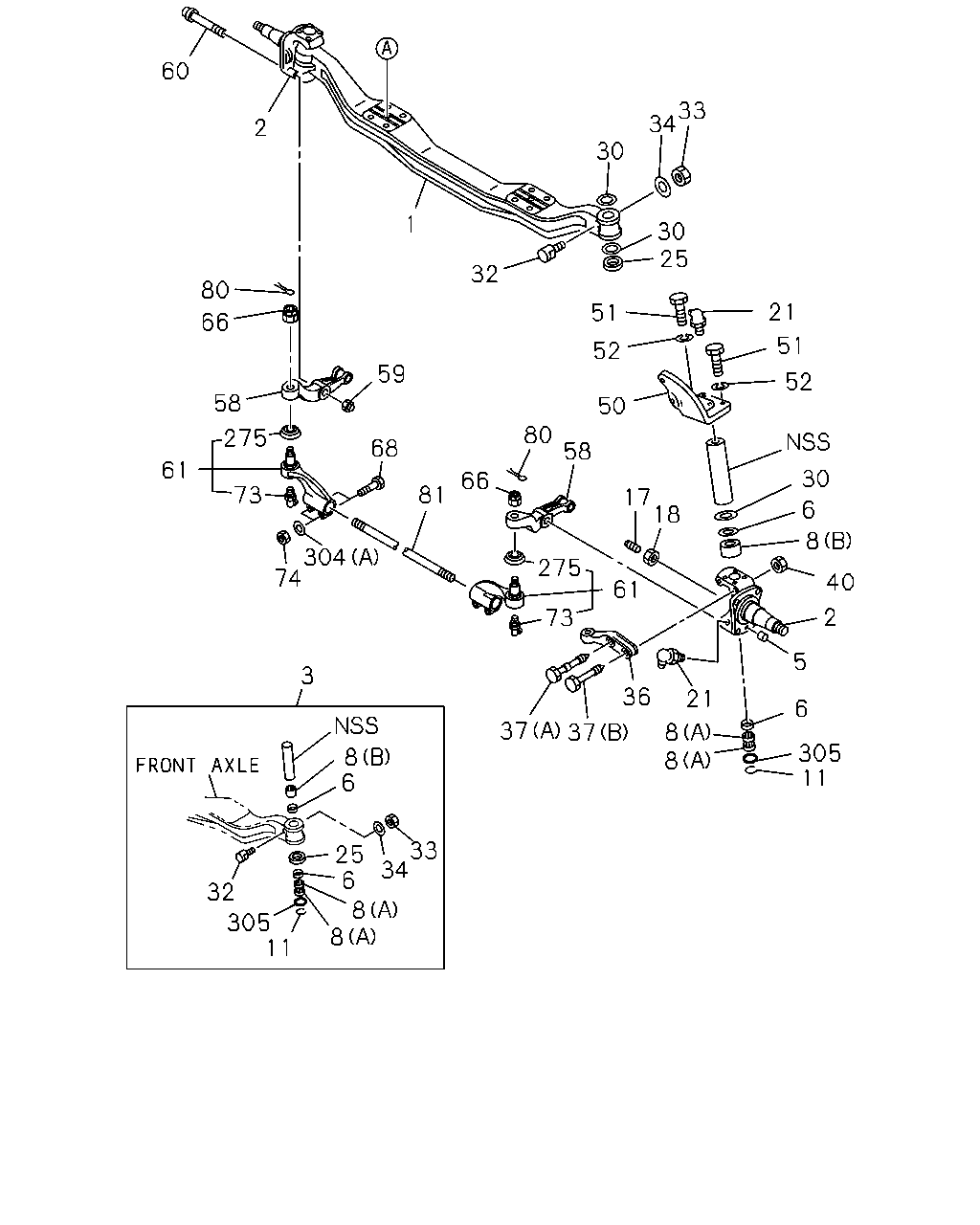

60 33 34 2 30 1 30 25 32 21 51 80 51 52 66 52 59 50 80 58 58 66 30 68 275 17 18 6 61 81 8 40 304 74 36 2 5 61 3 21 6 37 37 8 8 305 11 8 6 33 34 25 6 8 8 32 305 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-113-6	01	1	0005-	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0005-	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0005-	●	●
3	KING PIN SET	1-87830-738-5	02	1	0005-	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0005-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0005-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0005-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0005-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0005-	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0005-0705	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0005-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0005-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0005-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0005-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0005-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0005-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	0005-	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0005-0704	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-1	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0005-0704	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-1	01	1	0705-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0005-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0005-	●	●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0005-	●	●
51	BOLT; POWER CHAMBER BRKT M12X60	0-10806-260-0	02	1	0005-0005	●	●
51	BOLT; POWER CHAMBER BRKT M12X60 FLANGE	0-28081-260-0	02	1	0005-0512	●	●
51	BOLT; POWER CHAMBER BRKT M12X60 FLANGE	0-28051-260-0	02	1	0601-	●	●
51	BOLT; POWER CHAMBER BRKT M12X28	0-20801-228-0	06	1	0005-0005	●	●
51	BOLT; POWER CHAMBER BRKT M12X25 FLANGE	0-28681-225-0	06	1	0005-0512	●	●
51	BOLT; POWER CHAMBER BRKT M12X25 FLANGE	0-28651-225-0	06	1	0601-	●	●
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	0005-0005	●	●
58	ARM; TIE ROD	1-43135-042-3	01	1	0005-	●	●
58	ARM; TIE ROD	1-43134-042-3	01	1	0005-	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0005-0704	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0005-0704	●	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-	●	●
61	ROD END; TIE ROD	1-43150-802-0	01	1	0005-1009	●	●
61	ROD END; TIE ROD	8-98171-445-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-	●	●
61	ROD END; TIE ROD	1-43150-801-0	01	1	0005-1009	●	●
61	ROD END; TIE ROD	8-98171-444-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0005-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0211-0704	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0005-0210	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0005-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0005-0606	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
81	ROD; TIE	1-43151-119-0	01	1	0005-1009	●	●
81	ROD; TIE	8-98172-133-0	01	1	1010-1109	●	●
81	ROD; TIE	8-98193-965-0	01	1	1110-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0005-1009	●	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0211-0704	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-	●	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0005-0907	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0005-0210	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0005-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●

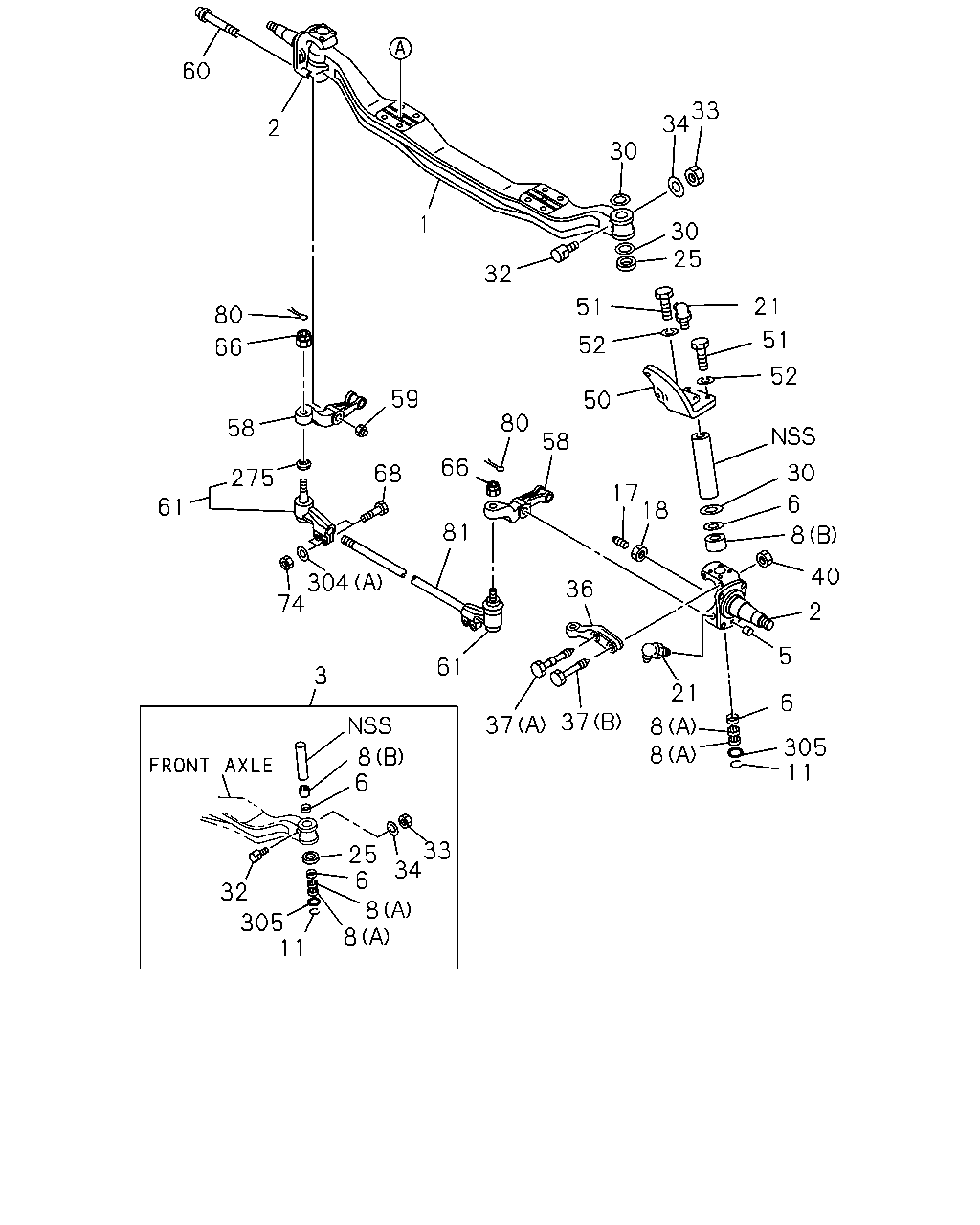

60 33 34 2 30 1 30 25 32 80 21 51 66 51 52 59 52 58 50 80 275 68 58 61 30 66 81 73 17 18 6 8 304 74 275 40 61 2 73 5 3 36 21 6 37 8 8 305 11 8 6 33 34 25 6 8 8 32 305 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-113-6	01	1	0005-	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0005-	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0005-	●	●
3	KING PIN SET	1-87830-738-5	02	1	0005-	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0005-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0005-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0005-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0005-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0005-	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0005-0705	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0005-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0005-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0005-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0005-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0005-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0005-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0005-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	0005-	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0005-0704	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-1	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0005-0704	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-1	01	1	0705-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0005-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0005-	●	●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0005-	●	●
51	BOLT; POWER CHAMBER BRKT M12X60	0-10806-260-0	02	1	0005-0005	●	●
51	BOLT; POWER CHAMBER BRKT M12X60 FLANGE	0-28081-260-0	02	1	0005-0512	●	●
51	BOLT; POWER CHAMBER BRKT M12X60 FLANGE	0-28051-260-0	02	1	0601-	●	●
51	BOLT; POWER CHAMBER BRKT M12X28	0-20801-228-0	06	1	0005-0005	●	●
51	BOLT; POWER CHAMBER BRKT M12X25 FLANGE	0-28681-225-0	06	1	0005-0512	●	●
51	BOLT; POWER CHAMBER BRKT M12X25 FLANGE	0-28651-225-0	06	1	0601-	●	●
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	0005-0005	●	●
58	ARM; TIE ROD	1-43135-042-3	01	1	0005-	●	●
58	ARM; TIE ROD	1-43134-042-3	01	1	0005-	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0005-0704	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0005-0704	●	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-	●	●
61	ROD END; TIE ROD	1-43150-802-0	01	1	0005-1009	●	●
61	ROD END; TIE ROD	8-98171-445-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-	●	●
61	ROD END; TIE ROD	1-43150-801-0	01	1	0005-1009	●	●
61	ROD END; TIE ROD	8-98171-444-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0005-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0211-0704	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0005-0210	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0005-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0005-0606	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
81	ROD; TIE	1-43151-119-0	01	1	0005-1009	●	●
81	ROD; TIE	8-98172-133-0	01	1	1010-1109	●	●
81	ROD; TIE	8-98193-965-0	01	1	1110-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0005-1009	●	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0211-0704	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-	●	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0005-0907	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0005-0210	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0005-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●

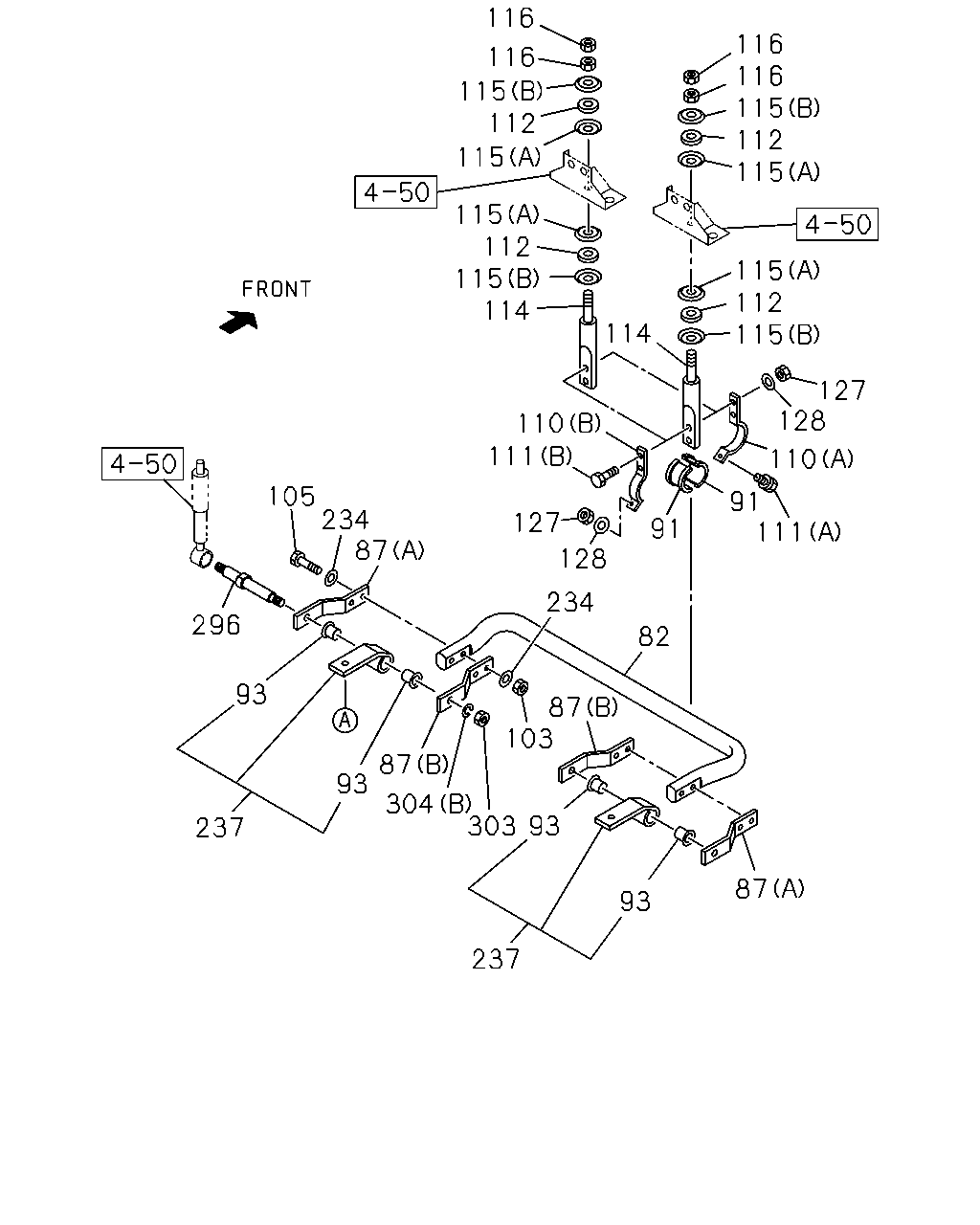

116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 127 128 110 111 110 105 234 87 91 111 128 127 91 234 296 82 93 87 103 87 93 304 303 93 237 87 93 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	BAR; STAB,FRT SUSP	1-51771-113-0	01	1	0005-0201	●
82	BAR; STAB,FRT SUSP	1-51771-200-0	01	1	0202-0210	●
82	BAR; STAB,FRT SUSP	1-51771-113-0	01	1	0211-	●
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	0005-0912	●
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1001-	●
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	0005-0912	●
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1001-	●
91	BUSHING; RUBBER,STAB BAR	1-51779-084-0	04	1	0005-0201	●
91	BUSHING; RUBBER,STAB BAR	1-51779-121-0	04	1	0202-0210	●
91	BUSHING; RUBBER,STAB BAR	1-51779-084-0	04	1	0211-	●
93	BUSHING; STABILIZER	1-51689-015-3	04	1	0005-	●
103	NUT; BRKT FIX M14	9-99110-514-0	04	1	0005-0512	●
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	0601-	●
105	BOLT; BRKT FIX M14X70	9-91061-470-0	04	1	0005-0206	●
105	BOLT; BRKT FIX M14X70	9-91066-470-0	04	1	0207-0910	●
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	0911-	●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0005-	●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0005-	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0005-0910	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	0911-	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0005-0910	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	0911-	●
112	BUSHING; ROD	9-51631-050-0	04	1	0005-	●
114	ROD; STAB BAR	1-51773-084-0	02	1	0005-	●
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.8	1-51631-022-0	04	1	0005-	●
115	WASHER; CENTER,STAB TO FRAME (B) ID=14.5	9-51631-051-0	04	1	0005-	●
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	0005-0512	●
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	0601-	●
127	NUT; CLAMP M12	9-99110-412-0	06	1	0005-0512	●
127	NUT; CLAMP M12	0-91110-512-0	06	1	0601-	●
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	0005-0603	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0604-0912	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1001-	●
234	WASHER; STAB ID=15	9-09651-069-0	08	1	0005-0910	●
234	WASHER; STAB ID=15	8-98010-627-1	08	1	0911-	●
237	SUPPORT; STAB BAR	1-51681-724-0	02	1	0005-0209	●
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	0210-	●
296	PIN; STAB	1-51682-150-0	02	1	0005-0210	●
296	PIN; STAB	1-51682-145-2	02	1	0211-0907	●
296	PIN; STAB	8-98022-874-1	02	1	0908-	●
303	NUT; PIN M20	9-99110-520-0	02	1	0005-0512	●
303	NUT; PIN M20	0-91110-520-0	02	1	0601-	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0211-0704	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-	●	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0005-0907	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0005-0210	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
