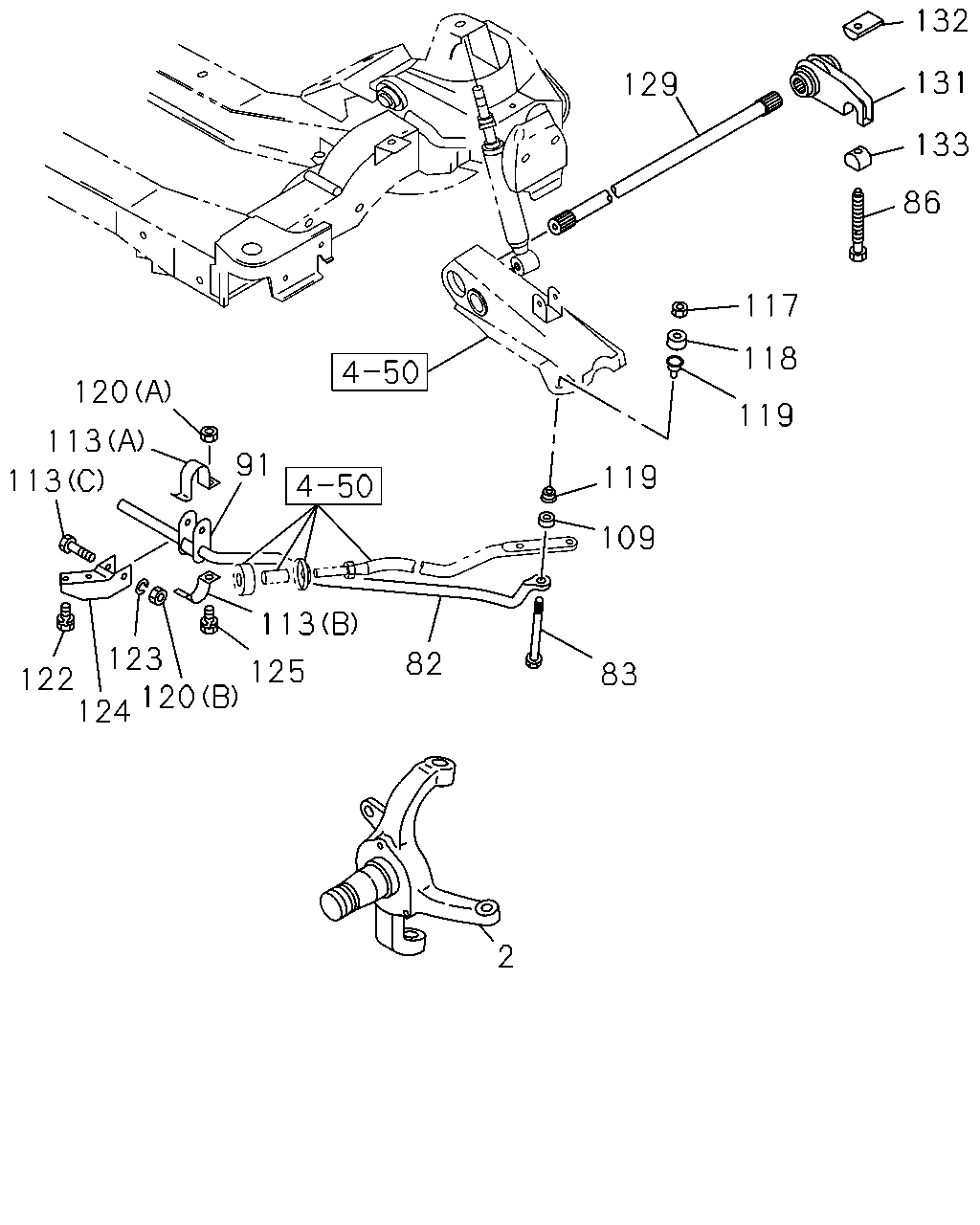

4-10 — FRONT AXLE (#95639) — 26 parça

83 82 2 124 122 123 120 125 113 91 113 113 120 119 109 119 118 117 129 132 131 133 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	KNUCKLE; FRT AXLE	8-94362-960-1	01	1	0612-
2	KNUCKLE; FRT AXLE	8-94362-959-1	01	1	0612-
82	BAR; STAB,FRT SUSP	8-97013-207-1	01	1	0612-
83	BOLT; STAB BAR TO CONT ARM M10X63	8-94223-156-0	02	1	0612-
86	BOLT; TORSION BAR,HEIGHT CONT M14X130	8-94101-707-0	02	1	0612-
91	BUSHING; RUBBER,STAB BAR	8-94223-157-0	02	1	0612-
109	BUFFER; STAB BAR	8-94143-210-0	04	1	0612-
113	BRACKET; STAB TO BODY,LWR (A) LOWER	8-94223-159-0	02	1	0612-
113	BRACKET; STAB TO BODY,LWR (B) UPPER	8-94223-160-0	02	1	0612-
113	BRACKET; STAB TO BODY,LWR (C) BOLT	8-94223-161-0	02	1	0612-
117	NUT; STAB BAR BUSHING M10	0-91110-510-0	02	1	0612-
118	WASHER; STAB BAR BUSHING ID=10.5 OD=32	9-51631-048-0	02	1	0612-
119	WASHER; CTR,STAB BAR ID=15.0 OD=32	9-51631-049-0	04	1	0612-
120	NUT; STAB BAR BRKT (A) M8 IDN	0-91110-508-0	02	1	0612-
120	NUT; STAB BAR BRKT (B) M12	0-91110-512-0	02	1	0612-
122	BOLT; BRKT M10X20 W/LK WASHER IDN	0-50541-020-0	04	1	0612-
123	WASHER; LK,STAB BAR BRKT ID=12.2	0-91510-512-0	02	1	0612-
124	BRACKET; STAB TO BODY,UPR	8-94104-145-0	01	1	0612-
124	BRACKET; STAB TO BODY,UPR	8-94104-144-0	01	1	0612-
125	BOLT; STAB TO BODY M8X20 W/LK WASHER	0-50040-820-0	02	1	0612-0909
125	BOLT; STAB TO BODY M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-
129	BAR; TORSION,FRT SUSP	8-97135-944-0	01	1	0612-
129	BAR; TORSION,FRT SUSP	8-97135-943-0	01	1	0612-
131	ARM; HEIGHT CONT	5-51265-011-2	02	1	0612-
132	COLLAR; TORSION BAR	8-94468-556-2	02	1	0612-
133	SEAT; TORSION BAR,HEIGHT CONT IDN	8-97562-437-0	02	1	0612-
