Sayfa 3-52 - Isuzu EPC

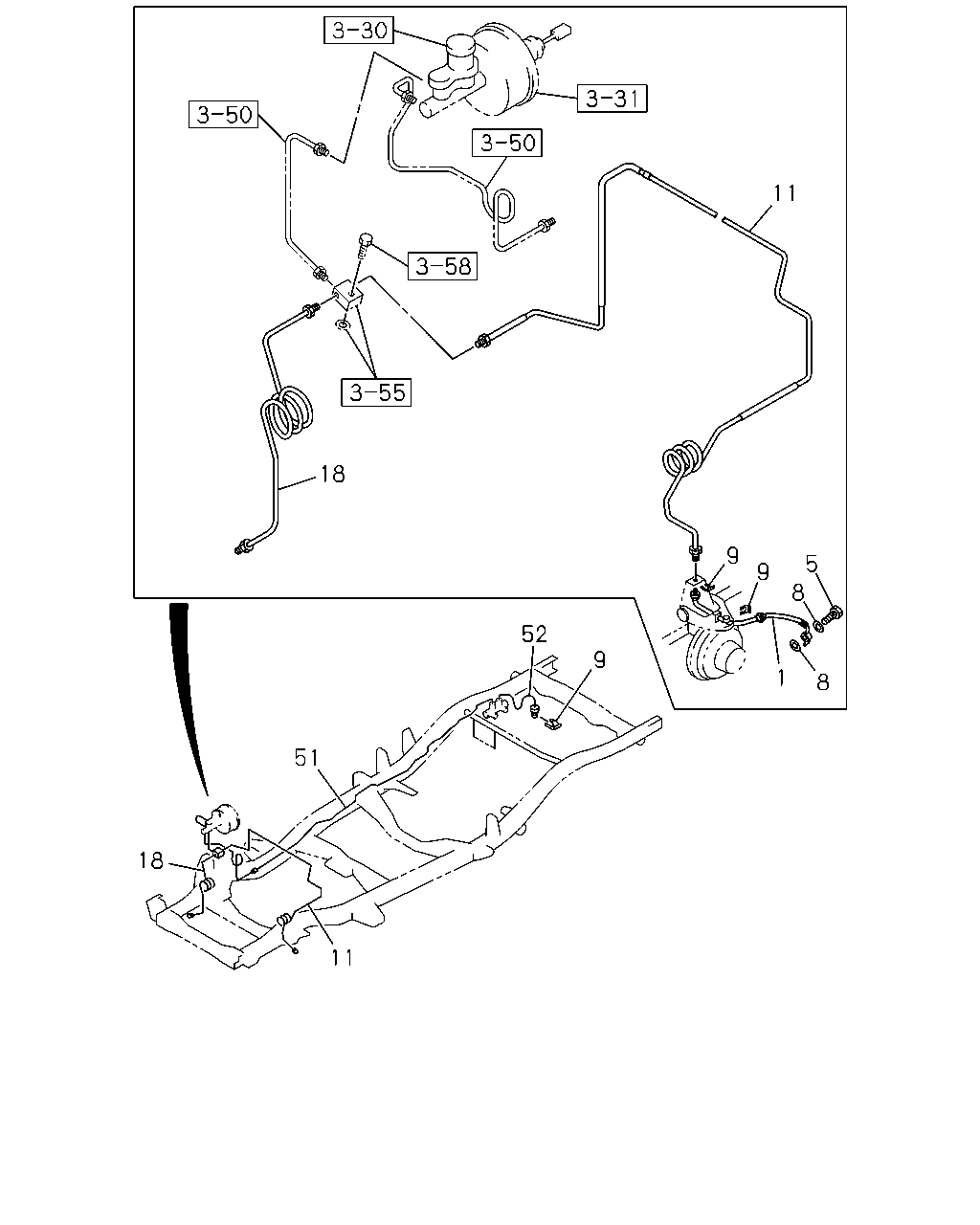

3-52 — BRAKE PIPING; OIL,FRONT (#95634) — 9 parça

18 11 9 9 8 8 1 5 52 9 51 11 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK	8-97032-076-1	02	1	0612-
5	BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-97381-454-0	02	1	0612-0905
5	BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-98014-005-0	02	1	0906-
8	GASKET; FLEX HOSE,FRT BRK ID=10.2 OD=16.0	9-09571-410-0	04	1	0612-
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	05	1	0612-
11	PIPE; BRK,UNION TO FLEX HOSE,FRT IDN	8-97562-644-0	01	1	0612-
18	PIPE; OIL,UNION TO FRT FLEX HOSE IDN	8-97132-022-0	01	1	0612-
51	PIPE; BRK IDN	8-94366-546-0	01	1	0612-
52	PIPE; BRK IDN	8-94372-176-0	01	1	0612-
